Kverneland 860 Pro
Gør arbejdet hurtigere færdigt
Bugseret ballehakker/indføringsenhed med 3,0 m3 lastekapacitet
Højdepunkter
3.0m³ kammer Blæseafstand op til 20 m Optimeret til maksimal kapacitet og gennemstrømning Unik tromlekniv til en lang række forskellige materialer Gearkasse med to hastigheder for reduceret svinghjulshastighedBeskrivelse
Et af hovedformålene med Kverneland 863 Pro er at give mere kapacitet ved at findele materialet hurtigere. Svinghjulshuset og blæsepadlerne har fået større dimensioner for at øge ydeevnen. Det betyder, at mere materiale føres hurtigere ind i svinghjulet, så ballen færdiggøres i et imponerende tempo. Kverneland 863 Pro leveres med en nydesignet remkoblingsløsning til frakobling af snitterrotoren. Opriverrotoren kan frakobles hydraulisk fra traktorens kabine. Derudover er en hydraulisk kam og topskærm standard på 863 Pro. Kammen bruges til at kontrollere materialestrømmen ind i svinghjulet, især ved indføring af løst materiale. Topafskærmningen reducerer spild og leder materialet ind mod kværnen.
Højdepunkter
- 3m³³
- 3,0m³ kammer
- Blæseafstand op til 20 m
- Hydraulisk kam og topskærm
- Bæltekoblingsløsning til frakobling af kværnrotoren
- Optimeret design af tromle, svinghjul og kammer for maksimal kapacitet og gennemløb.
- Unik tromle-kniv-konfiguration til håndtering af en lang række materialer.
- Gearkasse med to hastigheder til reduceret svinghjulshastighed ved aflæsning af fodermaterialer
Funktioner

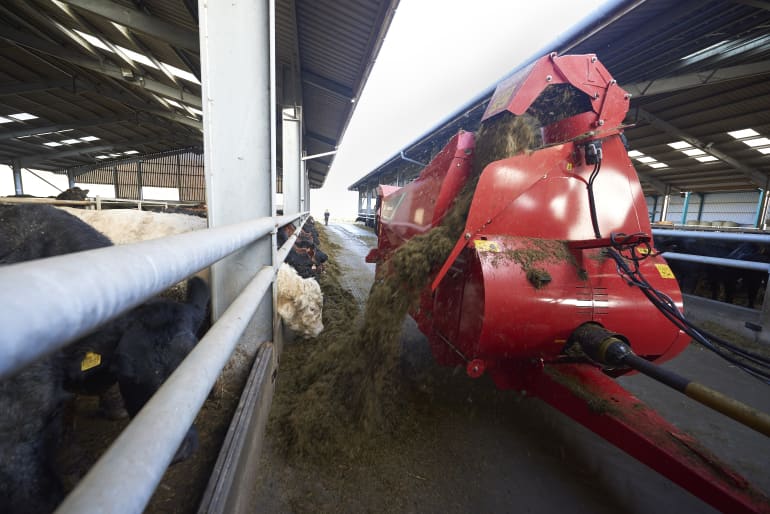

- The swivelling chute operates in 4 stages to optimize the blowing distance for bedding
- Blowing distance up to 20m.
- Designed with a turning radius of 260° which enables easy access to even difficult reachable spaces.
- The 3-stage movement enhance the feeding perfomance without blockage even on long fibrous material.
- The Drum Feed Control System (DFCS) is an exclusive feature (patent pending), designed to handle even the most difficult material when feeding.
- It is a simple and reliable system, which includes a powerful electric cylinder and a comb positioned above the drum.
- During loading DFCS is engaged, which means that the comb is in a lowered position.
- This ensures that blockages of the flywheel is minimized during the loading and start up process.
- Once the flywheel speed is at a sufficient level, all you need to do is to push a button and the DFCS ‘fingers’ will be gradually disengaged and open for full flow through the flywheel resulting in
- perfect flow.
- The progressive release of the ‘fingers’ offers a more gentle start, protecting the machine and minimizing the risk of blockages.
- A reliable and simple system with minimum maintenance!

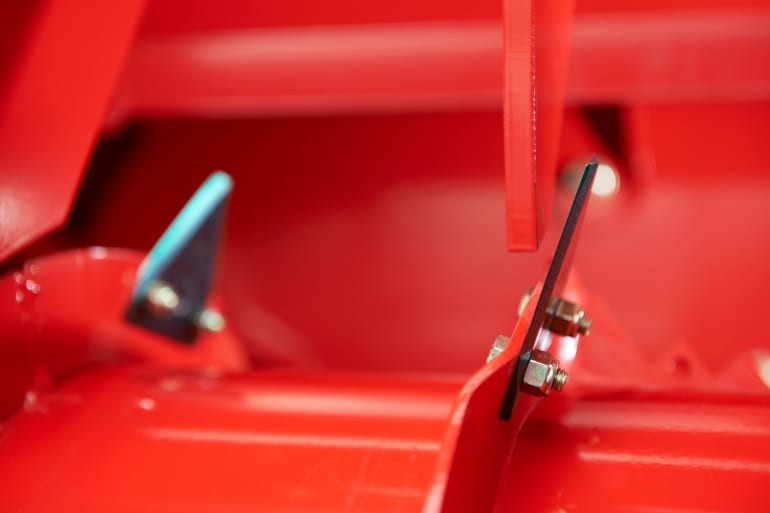

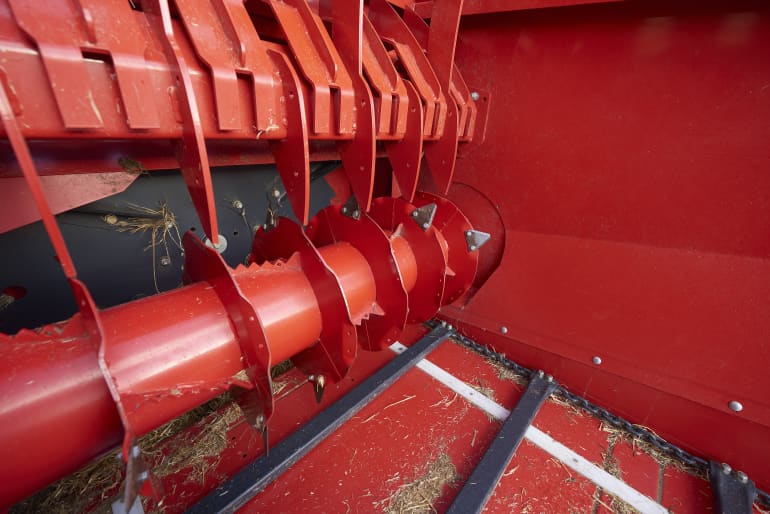

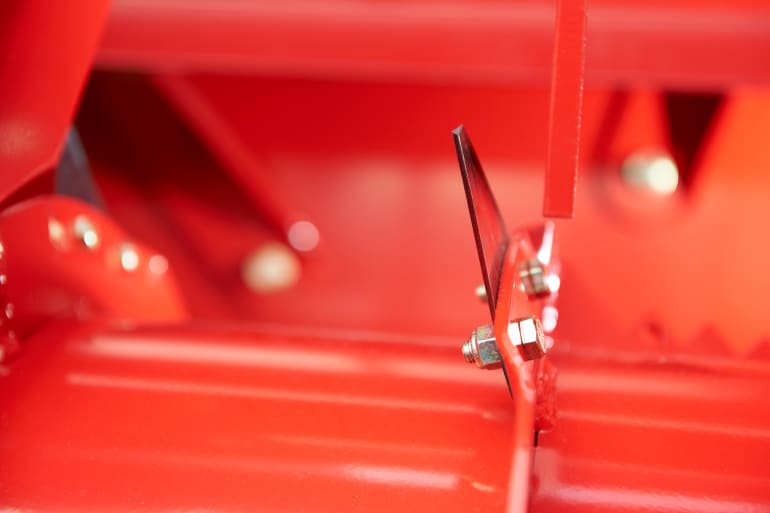

- The Kverneland 863 and 864 features a unique drum – knife configuration.
- Knives are mounted on angled rings so that they pass a fixed ‘comb’ on alternative sides.
- This ensures that materials are cut and fed into the flywheel chamber evenly, reducing the risk of blockage, offering even discharge & leaving the drum and comb clean.
- The drum is fitted with 14 blades as standard, but will accept a further 28 blades according to material type – simply bolt them on in a matter of minutes.
- A patented system - the knives pass the fixed comb on alternative sides for a more even cut.

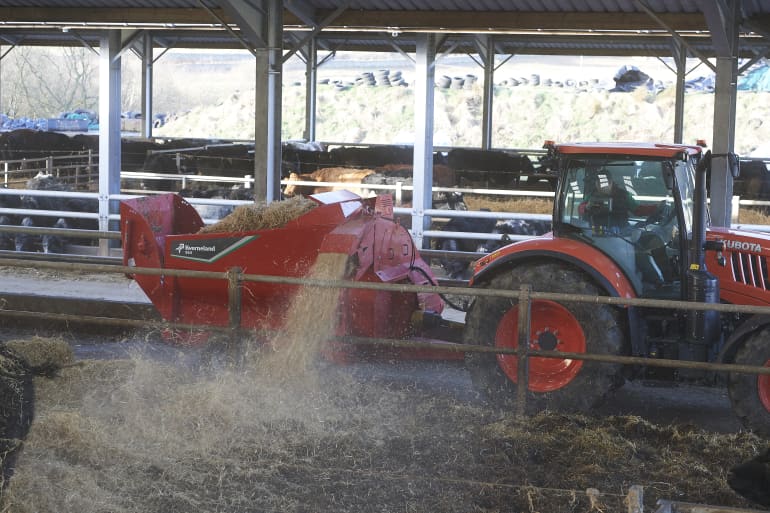

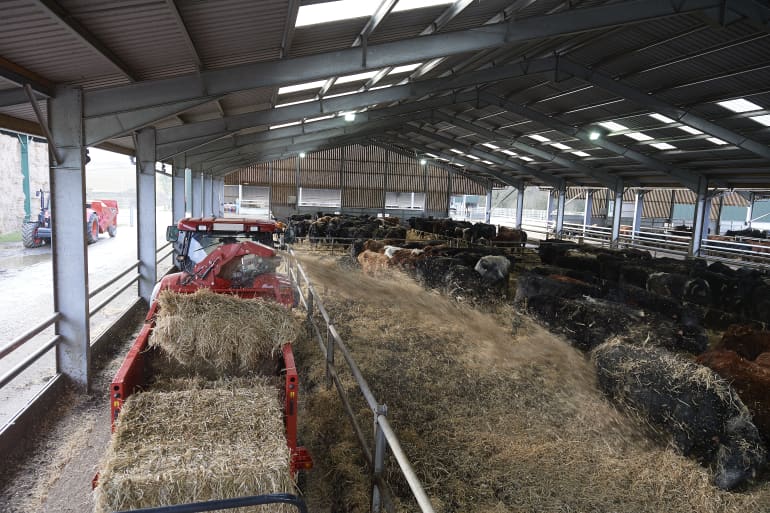

- To provide the correct flywheel speed for bedding and feeding the Kverneland 863 & 864 is fitted with a two speed gearbox.
- At lower speeds the flywheel ensures a metered flow of silage or hay for feeding.
- At high speed a powerful blow for the most efficient distribution during bedding is ensured.
- The gearbox speed is adjusted via the handle on the front of the machine.

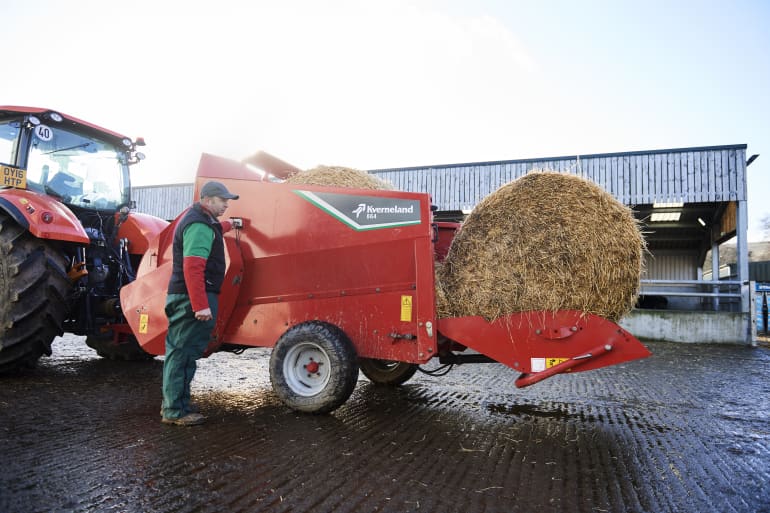

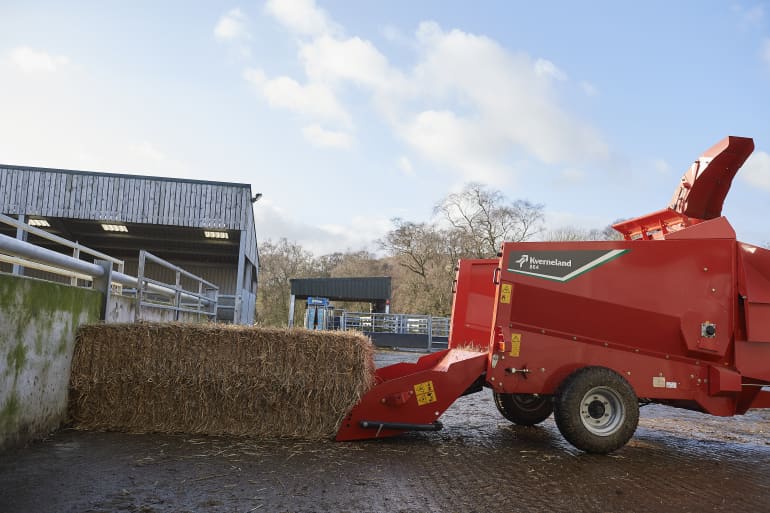

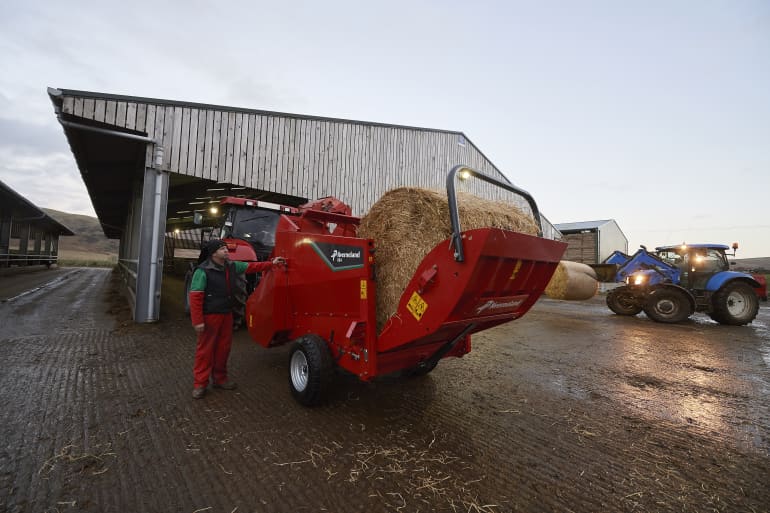

- The hydraulically operated rear door fitted provides a self loading facility for easy loading of square and round bales.
- Tailgate and floor chain can be operated via the remote control on the side of the machine.
- The rear door also offers the ability to carry a second round bale for increased capacity.
- A bale kit can be fitted to the end of the tailgate to ensure that the bales stay in position during operation.
- The size of the bale chamber makes it very easy to load the material with a loader - and two round bales can be loaded at the same time - saving time.
Teknisk specifikation
Teknisk specifikation
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Model | 863 | 863 Pro | 864 | 864 | |
|---|---|---|---|---|---|
| Tud | 310 grader drejebar | 310 grader drejebar | 310 grader drejebar | 310 grader drejebar | |
| Laste volumen (m3) | 3.00 | 3.00 | 4.20 | 4.20 | |
| Blæseafstand* (m) | op til 20 | op til 20 | op til 20 | op til 20 | |
| Transport | Bugseret | Bugseret | Påhængskøretøj | Anhænger | |
| Doseringssystem | Enkelt tromle | Enkelt tromle | Enkelt tromle DFCS | Enkelt tromle DFCS | |
| Krævet PTO-effekt min (kW/hk) | 51/70 | 51/70 | 51/70 | 51/70 |
Unable to load the table
* Afhængigt af materiale og staldspecifikke forhold |
Teknisk specifikation
Teknisk specifikation
Download brochureModel |
Cubic Volume |
Load Capacity |
Power Req, Min. |
863 |
3.00m3 |
1500kg |
51/70kW/hp |
864 |
4.20m3 |
2000kg |
51/70kW/hp |
* Afhængigt af materiale og staldspecifikke forhold |
