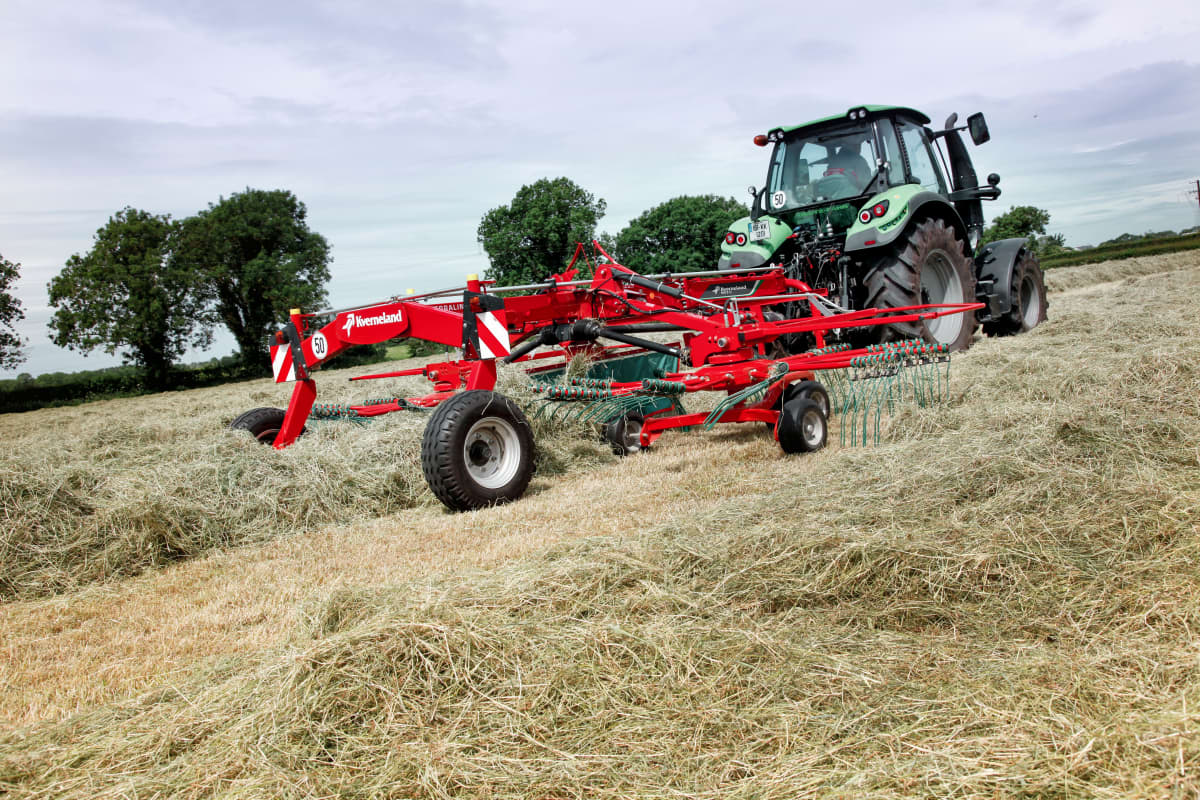

Kverneland 9472 C (HYDRO)
TerraLink Quattro til perfekt jordfølgning
CompactLine to-rotor river med 7,2 m arbejdsbredde
Beskrivelse
9472 C -CompactLine multirotor omkostningseffektive river med 7,2 m arbejdsbredde og monteret på en solid og stabil ramme sikrer en lang levetid. Funktioner som aktivt styrede hjul, TerraLink Quattro-system og hydraulisk justerbar arbejdsbredde er standard. Kverneland 9472 C Hydro-versionen er udstyret med hydraulisk betjente aksler på hovedrammen til at løfte og sænke maskinen under transport og drift. Denne funktion reducerer transporthøjden betydeligt med 40 cm, så transporthøjden kan komme helt ned på 3,45 m.
Funktioner
Funktioner
- The Kverneland CompactLine rakes feature oil-immersed cam discs and guide rollers.
- Tine arm bearings are fully lubricated, and hence absolutely maintenance-free.
- High-tensile tine arm holders and two bearings on either side of the driveshaft, provide the compact unit with strength and dependability.
- Kverneland-developed cam tracks are specifically tailored to individual rotor diameters, for optimum raking at any working width and on any model.
- The rear carrier frame with controlled steering facility allows tight turns on headlands and loss free swathing, even in awkwardly shaped fields.
- Even if the rotors are lifted on a steep slope, the steering system reliably counteracts any deviation.
- The ability to make sharp turns up to 80° and the cross stabilizer in the headstock are unique Kverneland features.
- Kverneland rotary rakes are designed to do well-shaped and clean swaths, achieved by precision in every part of the raking.
- The ground contour following ability is important to avoid dirt in the swath - especially in uneven field conditions.
- The TerraLink Quattro system controls the rotor in 3 dimensions, with a unique combination of an undercarriage with 4 wheels and a specially designed rotor suspension system. This ensures superb raking performance, even at higher forward speeds.
- Maintenance-free system - no pivots or joints to wear out.
- Automatic rotor suspension, ensuring smooth operation.
- Built-in pressure bias on front wheels prevents lifting and tine bounce.
- Optimum ground following for clean raking at high forward speeds. All wheels are positioned close to the tines.
- The Kverneland centre swath rakes offer hydraulic adjustable working width.
- This enables varying swath width, ensuring a perfect match to the pick-up width of loader wagons, balers and foragers.
Working Width |
Swath Width |
|
9472 C |
6.20 - 7.20m |
1.20 - 2.20m |
9476 C |
7.00 - 7.80m |
1.20 - 2.20m |
9580 C |
7.00 - 8.00m |
1.20 - 2.20m |
9584 C |
7.60 - 8.40m |
1.30 - 2.10m |
9590 C Hydro |
8.00 - 9.00m |
1.20 - 2.20m |
95110 C |
9.30 - 11.00m |
1.40 - 3.10m |
Teknisk specifikation
Teknisk specifikation
Download brochure| 9472 C | 9472 C Hydro | ||
|---|---|---|---|
| Arbejdsbredde | 6.2-7.2m | 6.2-7.2m | |
| Antal tandarme | 11 | 11 | |
| Vægt (kg) | 1640 | 1680 | |
| Rotorens diameter (m) | 2.95 | 3.00 |
Teknisk specifikation
Teknisk specifikation
Download brochureWorking Width |
No of Tines per Rotor |
Weight |
|
9464C |
6,4 m |
2 x 10 |
1510 kg |
9472C |
6,20 - 7,20 m |
2 x 11 |
1640 kg |
9476C |
7,00 - 7,80 m |
2 x 11 |
1640 kg |
