Kverneland 3600F
Frontmonterede skiveskårlægger med fleksibelt klippemønster.
Frontmonterede slåmaskiner med ActiveLift-system.
Højdepunkter
- SemiSwing-ståltænderkonditionering
- Innovativt ophængningsdesign
- Fleksibelt tilpasningsområde på 670 mm
- Variabel rotorhastighed for konditioneringsmaskine
- Fremragende synlighed under transport og arbejde
Beskrivelse
Kverneland 3600-serien, med SemiSwing, nylon- eller valse crimber og 2,81 - 3,60 m arbejdsbredde, har et flydende affjedringskoncept med tredimensionel tilpasning, med en fremragende evne til at følge jorden nedad og opad på henholdsvis 250 mm og 420 mm ud over en 24⁰ tværgående tilpasningsevne. Dette sikrer en fremragende tilpasning til ujævne terrænkonturer og højere opnåelig hastighed. Kverneland ActiveLift-systemet sikrer maksimal beskyttelse af knivbjælken under drift. Hvis skårlæggeren rammer en forhindring, bevæger den sig tilbage og op.
Højdepunkter
- SemiSwing, nylon eller rulle crimber
- Innovativt ophængningsdesign
- Fleksibelt bevægelsesmønster, nedadgående bevægelse på 250 mm og opadgående på 420 mm
- Variabel crimber rotor hastighed

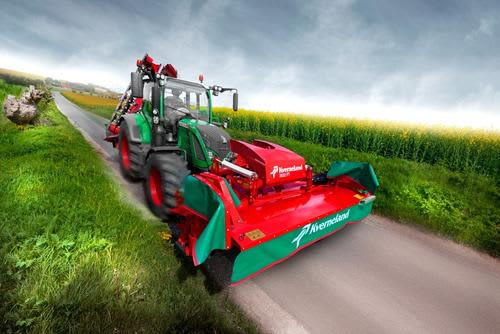

- Fremragende udsyn under transport og arbejde - ophængets design giver et uforstyrret udsyn.

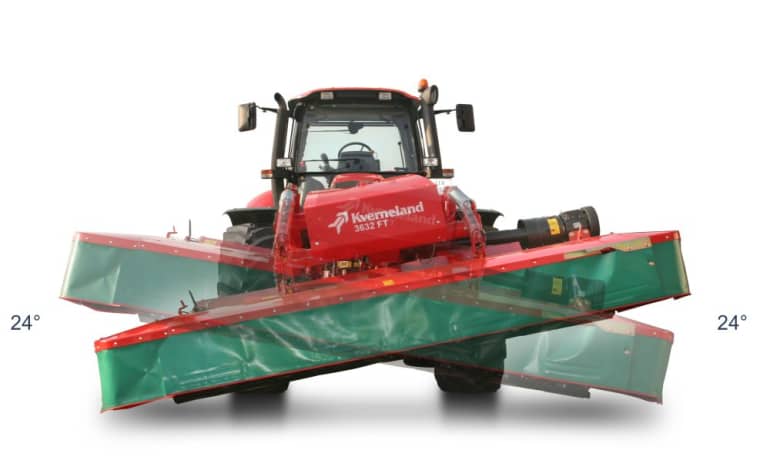

- Det innovative affjedringsdesign giver mulighed for en tværgående tilpasning på 24,
Funktioner
- Kverneland uses round discs. Round discs are less susceptible to stone impact, and reduce shock loads in the transmission.
- Stones are expelled immediately, before they have any chance of becoming jammed. The benefits are lower repair and maintenance costs - at the same time as a clean and aggressive cut.
- The cutterbar has a high oil capacity, ensuring a very low working temperature. This ensures an efficient oil cooling and lubrication of the entire cutterbar.
- The long curved gear wheels running in oil provides a very quiet and reliable power transmission.
- The fully welded cutterbar gives a very stiff and strong design for high durability.
- With the ProFit quick knife change system, maintenance of the cutting ability is easy. The knives are changed by one simple operation using the special lever.
- The Kverneland ActiveLift system ensures maximum protection of the cutterbar during operation. If hitting a stone or foreign obstacle, a three-fold action takes place simultaneously.
- 1. The cutterbar will move back and up, due to the geometry of the suspension.
- 2. Tension in the ground pressure springs increases, adding additional lift to the mowing section, which helps to clear the obstacle.
- 3. The angle of the cutterbar repositions from 4° downwards to horizontal, for better clearance of the obstacle.

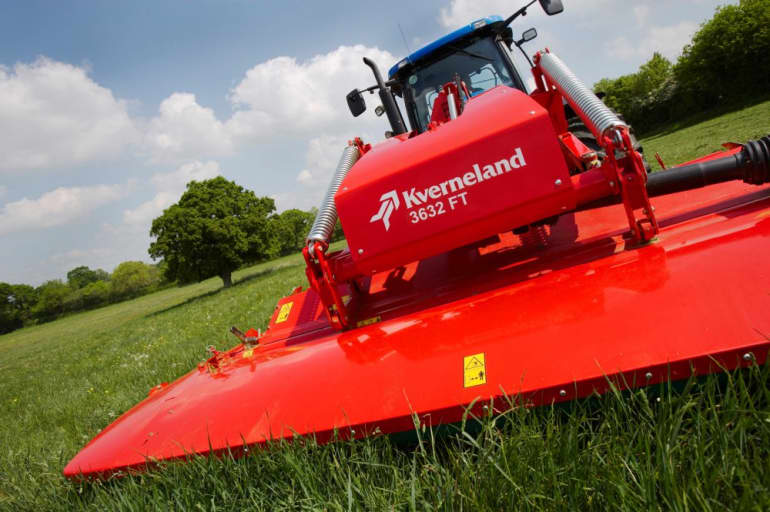

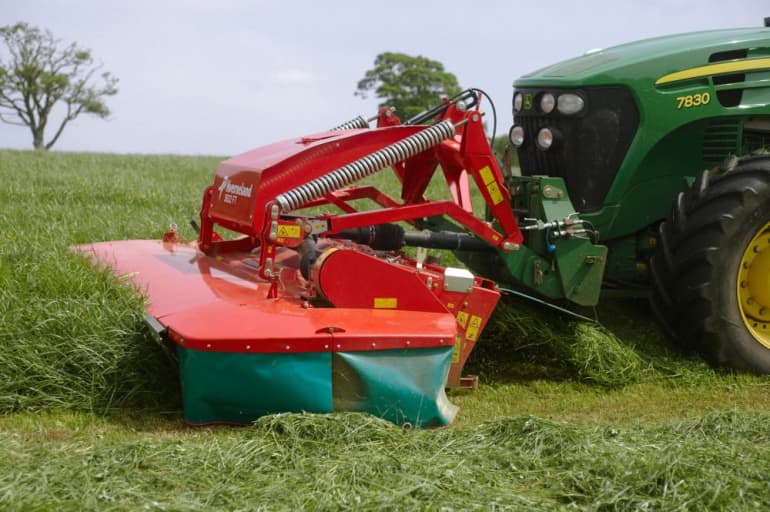

- The suspension design has been redesigned to offer even better flotation and more even ground pressure.
- The two large suspension springs have been moved further outwards to provide better side stability, which is reflected in optimum protection of the stubble and far less skid wear.

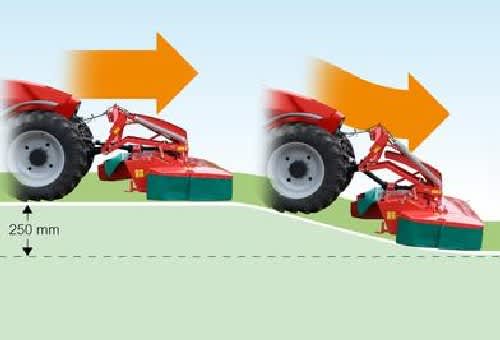

- The moving pattern of the machines is extremely flexible, allowing downwards movements of 250mm and upwards of 450mm.
- This ensures excellent adaptation to uneven ground contours and higher reachable speed.
- The SemiSwing conditioner system combines the aggressive conditioning seen from fixed fingers with the excellent tine protection typically associated with free swinging tines.
- During normal operation the tines are fixed for effective conditioning, but if a SemiSwing tine comes into contact with an obstacle, force will exceed 22kg (48.5lbs) and it will spring back and leave a generous space for the obstacles up to 103mm to pass.
- The complete conditioner tine has been redesigned to move the centre of gravity. The result is that the tine will stay in position when hitting the crop, to give full conditioner effect and to minimise wear and tear on the turning points.
- The angle and position of the SemiSwing tines give a better crop transport. The crop is moved away from the conditioner rotor, resulting in reduced risk of blockages and full effect of the conditioner plate.
- The Kverneland roller versions are equipped with full width chevron rollers, quickly taking the cut crop off of the cutting discs and providing gentle and effective conditioning of fragile crops like lucerne/alfalfa, reducing leaf loss to a minimum.
- The design of the rollers ensures, that the crop is placed in an even, fluffy swath.
- The conditioning intensity is varied without use of tools, by adjusting the roller pressure exerted between top and bottom roller.
- Due to the nylon tines fitted to the conditioner, the total weight of the machine is kept to a minimum, while keeping an aggressive conditioning.
- The fixed conditioning fingers are made from high quality nylon, to make them very rigid.
- This means excellent protection from stones and other obstacles. A perfect solution for farmer and smaller contractor machines!
Teknisk specifikation
Teknisk specifikation
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Model | 3628 FT | 3628 FN | 3632 FT | 3632 FN | 3632 FR | 3636 FT | 3636 FR | |
|---|---|---|---|---|---|---|---|---|
| Crimber type | SemiSwing | Nylon | SemiSwing | Nylon | Rulle | SemiSwing | Rulle | |
| Arbejdsbredde m(ft) | 2.81(9'3") | 2.81(9'3") | 3.16(10'4") | 3.16(10'4") | 3.16(10'4") | 3.60(11'8") | 3.60(11'8") | |
| Transportbredde m(ft) | 2.70(8'9") | 2.70(8'9") | 3.00(9'8") | 3.00(9'8") | 3.00(9'8") | 3.40(11'2") | 3.40(11'2") | |
| PTO (rpm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Krævet PTO-effekt Min (KW/hk) | 50/70 | 50/70 | 60/80 | 60/80 | 60/80 | 66/90 | 66/90 | |
| Antal skiver/knive | 7/14 | 7/14 | 8/16 | 8/16 | 8/16 | 9/18 | 9/18 |
Unable to load the table
Teknisk specifikation
Teknisk specifikation
Download brochureArbejdsbredde |
Antal af skiver |
Crimper |
Kraftbehov |
|
3628 FT |
2,80 m |
7 |
SemiSwing Stålfinger |
50/70 kW/hk |
3628 FN |
2,80 m |
7 |
Nylonfinger |
55/80 kW/hk |
3632 FT |
3,20 m |
8 |
SemiSwing Stålfinger |
55/80 kW/hk |
3632 FN |
3,20 m |
8 |
Nylonfinger |
60/85 kW/hk |
3636 FT |
3,60 m |
9 |
SemiSwing Stålfinger |
67/90 kW/hk |
