Kverneland 8460
Høvenderen til at lave hø
Kompakt vender - ideel til høslæt
Højdepunkter
- CompactLine-gearkasse med lav vedligeholdelse
- Standard udstyret med vibrationsdæmpere
- Rotorplade dimension på 500 mm
- Dobbelte lejer fra pinion til kronehjul
- Nem indstilling af spredningsvinkel
Beskrivelse
Kverneland 8460, med 6,05 m arbejdsbredde, er specialbygget til høslæt. Den leveres med en stærk pakke af funktioner såsom standard vibrationsdæmpere, stærk V-formet centralenhed og central justering til kantvending. Kombinationen af 6 rotorer og en arbejdsbredde på 6,05 m giver betydelige driftsmuligheder. De små rotorer er specielt designet til optimeret ydelse ved produktion af tørt hø.
Højdepunkter
- Lav vedligeholdelse CompactLine gearkasse med kun én smørenippel.
- Kompakt vender med lav vægt og lavt kraftbehov.
- Standardmonteret med vibrationsdæmpere og stærk centralenhed.
- Rotorpladens dimension er 500 mm
- Dobbelte lejer fra tandhjul til kronhjul garanterer maksimal levetid for drivlinjen.
- Nem indstilling af spredevinklen gennem enkel trevejsjustering af hjulhøjden.
Funktioner
Funktioner
Kverneland 8480 wit Compact Transport Width

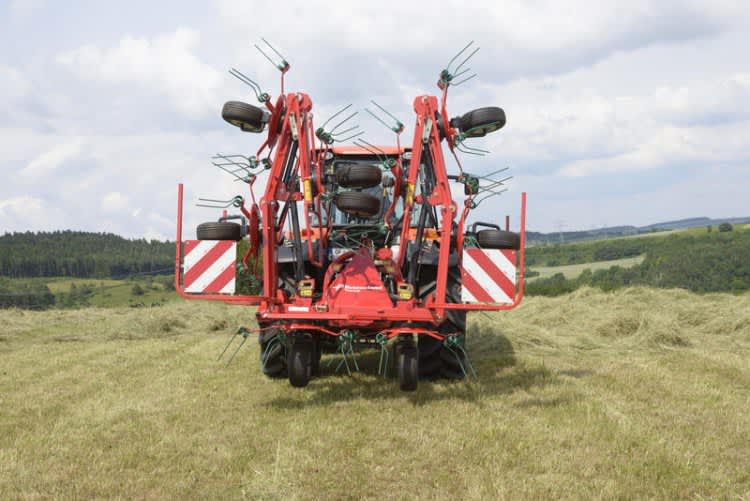

- Despite its´ 8.00m working width the Kverneland 8480 will fold into a very compact unit for transport, and will go below 3.00m transport width.

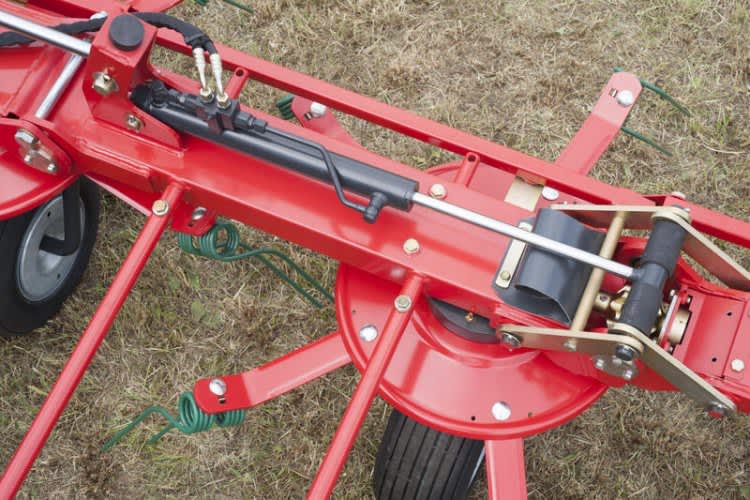

- The two outer rotors are fitted with the new HexaLink finger clutch, a simple yet efficient drive system that permits these rotors to turn into a 180⁰ position for transport. The remaining rotors are driven by double universals joint, providing sturdy and efficient transfer of power
- High-quality forage allows the optimum spreading angle to be achieved according to crop conditions, helping you to produce high quality forage.
- Setting the rotors to the right spreading angle will considerably improve the spreading action, and speed up the drying process.
- The mower swaths are neatly lifted by the tines and evenly spread over the full width.
- Tines glide in a more uniform frequency over the stubble, so the risk of dirt being lifted by the tines is minimized.
- The box type frame of the Kverneland 8000 series is an extremely solid construction. It is composed of two U-sections fitted into each other and securely welded together. The frame is totally enclosed at the top for maximum strength.
- All tedders have greasable pivoting points with an extra large diameter, making it a very strong and reliable construction.
- Made from flat steel, the tine arms form a very compact unit with the rotor plate. This makes the tedders by far more resistant to any type of load.
Teknisk specifikation
Teknisk specifikation
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Model CompactLine | 8460 | |
|---|---|---|
| Arbejdsbredde (m/ft) | 6.05 / (19'10") | |
| Antal rotorer | 6 | |
| Antal tænder/rotor | 5 | |
| Transportbredde (m/ft) | 2.75 / (9') | |
| Transportlængde (m/ft) | 1.86 / (6'17") | |
| Lagerhøjde (m/ft) | 3.10 / (10'2") | |
| Kapacitet theor. (ha/h) | 4.8 |
Unable to load the table
Teknisk specifikation
Teknisk specifikation
Download brochureModel |
Working Width |
Rotors/Tines |
Weight |
8460 |
6.05m |
6/5 |
680kg |
8480 |
8.05m |
8/5 |
950kg |
