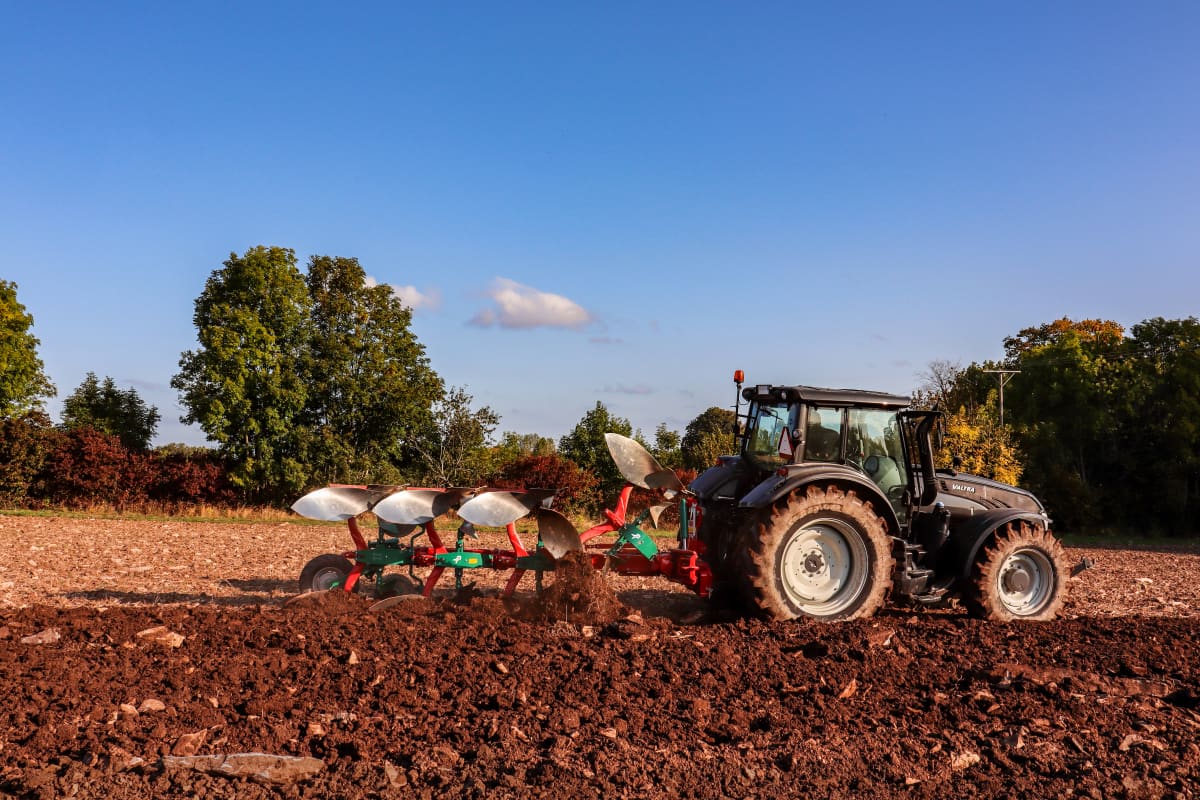

Kverneland 2300 S VARIOMAT
Meget effektive plove til medium til tunge jorde
Designet til moderne landbrug ny generation af liftophængte vendbare Kverneland-plove 3 - 5 plovfurer
Højdepunkter
Aero-profilerede høje ben for den bedste jordgennemstrømning Hurtig central justering af skimmere Sikker transport: valgfri transportløsning med anhænger Vary-Width® eller nem mekanisk justering af bredden Cylinder med dybdehukommelse til begrænsning af trekanterBeskrivelse
Robuste Kverneland liftophængte vendbare Auto-reset plove, lettere end konkurrenternes. Let at løfte og trække. Designet til alle jordbundsforhold. Optimer pløjningen takket være Variomat® og føl dig sikker under transport (Kverneland Trailer Transport Solution "TTS") Modellerne 2300 S Variomat fås fra 3-5 furer med en robust hovedramme på 100 x 200 mm (ingen svejsning). Robust hovedstativ nr. 200. Kat. II/III.
Højdepunkter
- Aero-profilerede høje ben for bedste jordstrømningsevne
- Hurtig central justering af forplovene for perfekt pløjning
- Unik hukommelsessystem, der opretholder den ønskede arbejdsdybde efter vendecyklussen
- Optionel automatisk justering af første fure. Mekanisk justering af første fure er standard
- Sikker transport: Kverneland Trailer Transport Solution (valgfri TTS)
- Effektiv jordgenopfyldning i én arbejdsgang: Packomat. Kverneland pakker og pakkerarm kompatibel
Funktioner
Kverneland “TTS” (Trailer Transport Solution)
- The plough behaves like a trailer. Turnable cross shaft max. 45° mutual offset during transport.
- Safe: maximum security for anything/anyone around and for the driver. No tilting out when driving in curves.
- Easy conversion from transport to ploughing.
- The Kverneland TTS is an option
Aero-profile legs
- Special design for best soil flow.
- 80 cm leg height to prevent potential blockage in heavy residues, manure, cover crops or when ploughing deeper.
- Robust legs: pre-shaped components limiting weldings.
- Low pulling requirement and hence fuel consumption thanks to low weight hollow legs.
Auto-reset system
- Unrivalled Kverneland mechanical leaf spring system for Non-stop ploughing.
- No Maintenance.
- Legs, plough and tractor lives are protected and lengthened.
- Quality ploughing: legs release independently one from another and come back to the correct position.
- Easy adjustment of releasing forces: unscrew 2 bolts to add or remove springs.
Leaf springs |
Release Pressure kN |
Standard pack: 6 leaf springs |
11,2 |
HD pack: 7 leaf springs |
12,7 |
XHD pack: 8 leaf springs |
14,4 |
Double pack: 6+4 leaf spring |
16,9 |
Smart skimmers adjustment
- Unique: central adjustment of skimmers working depth.
- Quick operations: right and left skimmers adjust simultaneously.
- High ploughing performance: the correct adjustment of skimmers contribute to a quality ploughing.
- Disc coulters also available: plain or notched (18”/45cm or 20”/50cm)
Importance of heat treatment
- The frame is an essential part of the plough construction. For Kverneland quality standards, a non heat treated part is a weak part!
- Kverneland frames are heat treated by induction twice. The temperature transfer to the steel is closely monitored. The frame gains 3 times as much strength. This unique Kverneland induction processes provides robustness and flexibility while ensuring an outstanding durability.
Stronger but not heavier
- For the equivalent Kverneland robustness, competitors would use more steel in thickness or in dimensions, therefore producing a heavier frame.
- Heavier frame impacts negatively pulling forces, wearing of parts, lifting capacities, tractor life time, and fuel consumption.
Long lasting
- Weldings are also a critical weakness for a plough frame. Kverneland frames are supplied as one sole part!
Stepless Vari-width® system for infinite adjustments of working width. Kverneland’s world patented system is available either with hydraulic or mechanical furrow adjustments.
Benefits:
- Easy variation of ploughing capacity
- Perfect match at all time between tractor capacity, implement and soil conditions
- Time saving: up to 30% more capacity
- Cost saving: up to 18% reduction in fuel consumption in relation with increased ploughing capacity
- Better work: plough up to the hedges, fences, trees and ditches
- Minimum wear: unique non-wearing linkage joint between the beams and the mainframe section
- Perfect line of pull at all time. Kverneland’s Vari-width offers the correct parallel linkage along the whole plough. Therefore, lower draft requirement, minimum wear and tear.
Excellent Ploughing Quality
They are renowned all over the world for their:
- excellent ploughing quality
- outstanding wear resistance
- low draft requirements
Bodies of a unique steel.
Kverneland Technology: 12 hours carburising heat treatment process for:
- optimum wear resistance (sharp as a diamond)
- the necessary flexibility to absorb impacts
Body No. 8 – “Universal body”
for light to heavy soils
good trash burial
easy pulling
Depth: 15 to 30 cm (6 to 12”)
Width: 30 to 55 cm (12 to 22”)
Body No. 9 – “Deep Universal body”
for heavier soils and deeper ploughing
well turned and packed furrows
easy pulling
Depth: 15 to 35 cm (6 to 14”)
Width: 30 to 55 cm (12 to 22”)
Body No. 28 – “Wide tyre body”
suits all soils; even heavier soils than body 8
very wide empty furrow for tractor wheels up to 710 mm
good turning and well packed
easy pulling
suitable for Depth: 12 to 30 cm ( 5 to 12”)
Width: 30 to 55 cm (12 to 22”)
Body No. 30 – “Finger body”
for sticky-stony soil and abrasive soils
good work in heavier soils
best crumbling effect
wide furrow bottom,
Depth: 20 to 35 cm (8 to 14”)
Width: 30 to 55 cm (12 to 22”)
Body No. 34 – Plastic mouldboard
Long and slim shape (similar to body 28)
For soils with high humus content without stones
Advised for tactors with large tyres
Easy pulling
Working depth: 12-35cm
Working width: 30-55cm
Landside / mouldboard: 40 degree
Body No. 38
universal body – easy to pull
for any soil conditions
recommended for tractors with large tyres
from deep to shallow ploughing
perfect turning of the furrow slice
working depth: 12-35 cm
working width: 30-55 cm
landside / mouldboard: 40°
Kverneland Heat Treatment Technology:
- more than 140 years of experience
- steels that withstand the toughest of conditions
- best robustness/weight ratio on the market
- for equivalent robustness, competitors would add more steel and therefore more weight, quicker wear, dissappointing ploughing results
Kverneland Steels:
- Benefits from less weight:
easier to pull/lower fuel consumption/lower lift requirement/reduced wear and stress for the tractor/more economical … - Benefits from more resistance:
minimum breakage/less maintenance/lower rotation for wearing parts/time saving/highest 2nd hand plough value/longer life for the plough/more economical…
Problems always happen when the plough is being used, when the work must be done!
A Kverneland plough is a peace mind!
More info: Kverneland Technology
Teknisk specifikation
Teknisk specifikation
Download brochure| Model | 2300 S Variomat | ||
|---|---|---|---|
| Åsafstand cm | 85/100 | ||
| Vendehoved | 200 | ||
| Stenudløser | Auto-reset | ||
| Arbejdsbredde cm | 30-50/35-55 | ||
| Frihøjde under bjælke cm | 80 | ||
| Antal furer | 3-5 | ||
| Vægt (kg) | 3 | 1180 | |
| 4 | 1470 | ||
| 5 | 1630 | ||
| Løftebehov (kg) | 3 | 3100 | |
| 4 | 4300 | ||
| 5 | 5100 | ||
Teknisk specifikation
Teknisk specifikation
Download brochureModel |
Interbody clearance cm |
Head stock |
Type of beam |
Working width cm |
Underbeam clearance cm |
No of furrows |
2300 S Variomat |
85 |
No 200 |
Auto-reset |
30 - 50 |
80 |
3 - 5 |
2300 S Variomat |
100 |
No 200 |
" |
35 - 55 |
80 |
3 - 5 |
