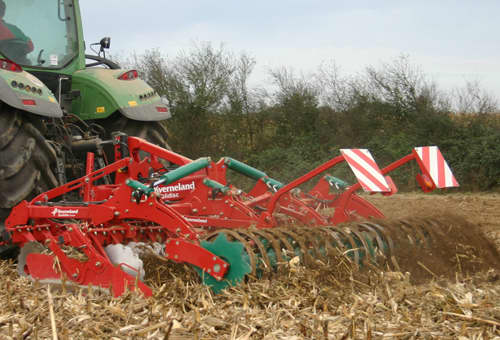

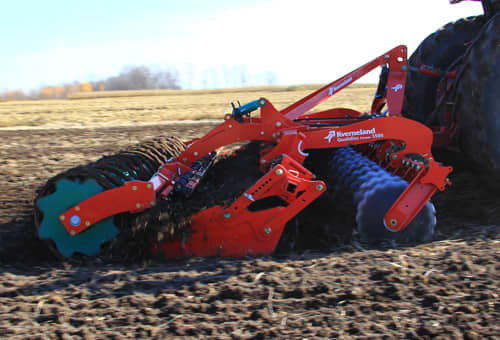

Kverneland Qualidisc Farmer_01F
Qualidisc Farmer - Effektiv bearbejdning med høj kapacitet og ydeevne
Øvre og dybere bearbejdning, stubbearbejdning, forberedelse af såbed eller såning af dækafgrøder. Alle disse forskellige opgaver kræver en fremragende gennembrydning, skære- og konsolideringskvalitet. Qualidisc Farmer er det rigtige valg til at udføre disse opgaver ved høje fremadgående hastigheder på 18 til 20 km/t.
Højdepunkter
Yderst effektiv: høj hektarydelse Alsidighed: fra overfladisk til dybere bearbejdning Høj skærekvalitet over hele arbejdsbredden Perfekt blandings- og udjævningskvalitet Lang levetid, reduceret vedligeholdelse - 2 års garantiBeskrivelse
Kverneland kompakt tallerkenharve, Qualidisc Farmer Foldbar, tilbydes i arbejdsbredde fra 4,0 til 6,0 m til op til 300 hk. Qualidisc Farmer er en lettere version af Qualidisc Pro (15% lettere på monteret version).
Arbejdsområderne er alsidige: overfladisk og dyb stubbearbejdning (2 til 10 cm) samt forberedelse af såbedet efter pløjning. På grund af de store koniske skiver og den store afstand mellem rækkerne på 900 mm giver den også fremragende ydeevne til såning af efterafgrøder.

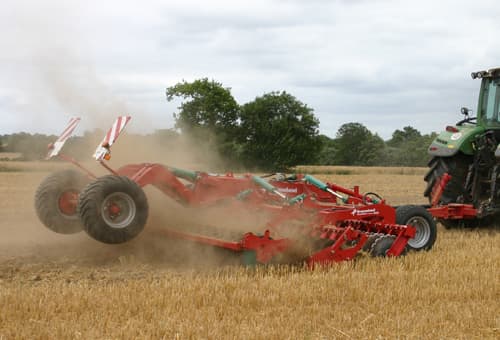

Maskinen kan arbejde ved høje fremadgående hastigheder på 12 til 20 km/t og opretholde et fuldt snit over hele arbejdsbredden med en ensartet arbejdsdybde under alle forhold
>
Højdepunkter
- Mest mulig effektivitet: høj hektarydelse med reduceret behov for løfte- og trækkraft
- Alsidighed: fra overfladisk til dybere bearbejdning
- Høj skærekvalitet over hele arbejdsbredden
- Perfekt blanding & nivelleringskvalitet
- Bredt udvalg af valser til effektiv jordpakning
- Brugerkomfort ved nem justering
- Lang levetid og reduceret vedligeholdelse
Funktioner

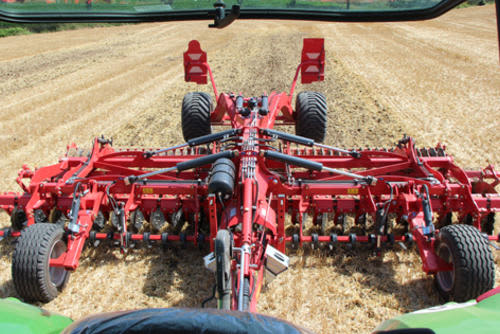

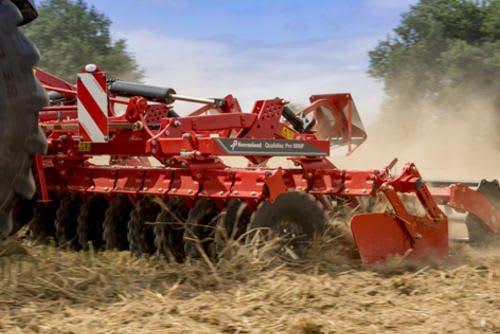

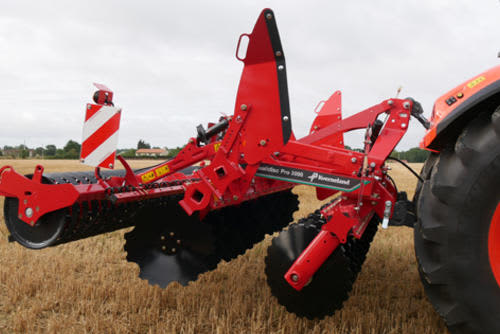

- Extremely sturdy - the Qualidisc Farmer is fitted with a frame well-proven with the Kverneland cultivator range.
- Due to the strong headstock and a frame size of 100 x 100 x 8 mm, the Qualidisc Farmer can be equipped with the heaviest roller.
- The brackets of the roller are fixed at the front bar of the frame for a better weight transfer during road transport and also at higher driving speeds.
- Due to the small distance between the disc sections, the Qualidisc Farmer requires reduced lifting capacity
- The working depth is easily adjusted by spacers situated at the depth cylinders

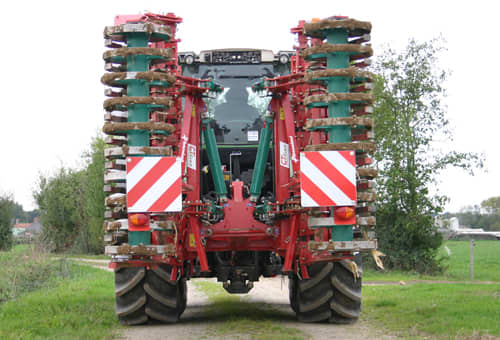

- The lateral deflectors are folded to keep the transport width in line with road traffic regulations
- Each angled arm is fitted with a large maintenance-free double ball bearing and 35 mm axle. This high-quality bearing is able to carry heavy radial and axial loads.
- Special protection on the side of the arm is achieved by a special seal of 5 sealing lips and by the joint protecting the bearing.
- On the other side the disc is protected against dust by an O-ring.
- The disc hub is fixed onto the arm by a bolt and special washers that prevent any loosening. The bolt is protected against soil by its position inside the arm.
Due to the aggressive discs and the considerable weight (up to 150 kg/disc), the Qualidisc Pro and the Qualidisc Farmer ensure an excellent working quality even under dry conditions.
The ground is completely cut, the stubble broken apart and correctly mixed on the surface for a good emergence of weeds and volunteer cereal seeds.

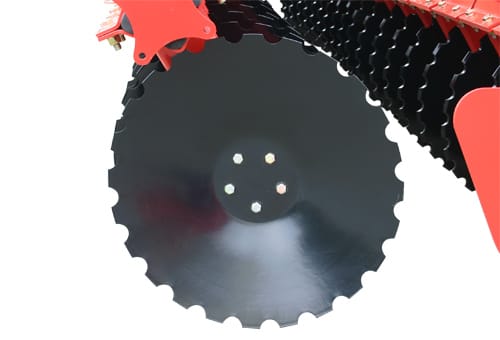

A constant cutting angle
Whatever the diameter of the disc, the cutting angle is always constant due to its conical design.
Long lasting discs
Discs of 6mm thickness and Ø600mm for the Qualidisc Pro.
Discs of 5mm thickness and Ø520mm for the Qualidisc Farmer.
The discs are given a special heat treatment for a long durability and strength. Thus the machine's longevity is increased and the maintenance costs reduced.

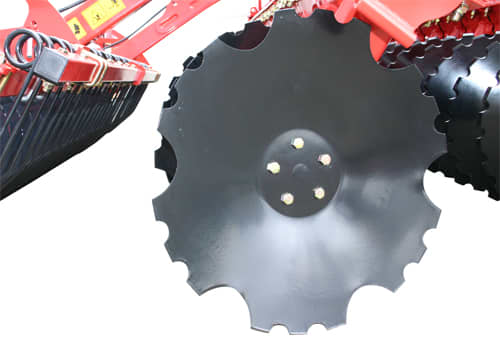

Big notched discs
Kverneland proposes discs with big notches at the back to enhance the rotation in fluffy soil and for a better self-cleaning of the disc with more than 20% of
clay. Small notches are kept to maintain the very good cutting quality.

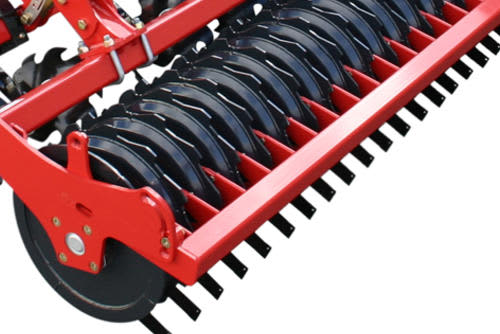

A large choice of rollers
According to the soil specifications, the consolidation required, the mixing of the soil and straw, the surface of the soil requested and the lifting capacity available, Kverneland offers a choice of rear rollers.

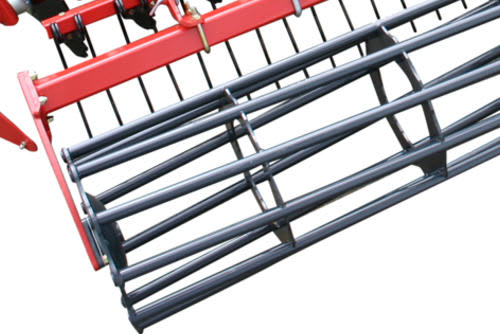

- Cage roller Ø 550mm - 90kg/m

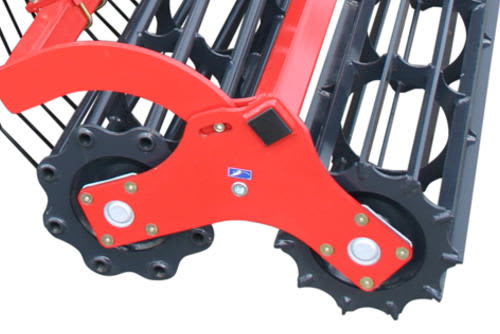

- Double cage roller Ø 400mm - 160kg/m
(available on mounted rigid and mounted folding models) - Actiring roller Ø 540mm - 160kg/m: active with the adjustable knives, ensuring a good mixture of soil and straw and consolidation.
- Actipack roller Ø 560mm - 205kg/m: heavier, for clod crushing and very firm recompaction of the soil. Adapted also for heavy and sticky soil conditions.

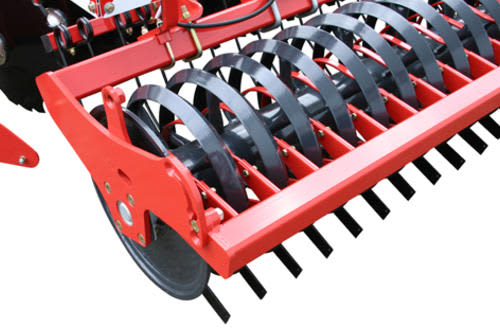

- Actiflex roller Ø 580mm - 160kg/m: intensive mixing effect combined with a good recompaction makes this roller the ideal tool for best volunteer's regrowth.
- Actipress Twin Ø 565mm - 220kg/m without soil:
(available on mounted rigid and mounted folding models)
u-profile for high carrying/rolling capacity in light soils. Clod breaking also in heavy conditions. High and homogenous consolidation.
Weight when full of soil: 250kg/m
Teknisk specifikation
Teknisk specifikation
Download brochure| Model | Qualidisc Farmer 4001F | Qualidisc Farmer 5001F | Qualidisc Farmer 6001F | |
|---|---|---|---|---|
| Ramme | Foldbar | Foldbar | Foldbar | |
| Arbejdsbredde (m) | 4.0 | 5.0 | 6.0 | |
| Transportbredde (m) | 2.45 | 2.45 | 2.45 | |
| Frihøjde under ramme (mm) | 735 | 735 | 735 | |
| Afstand mellem rækker (mm) | 900 | 900 | 900 | |
| Antal tallerkner | 32 | 40 | 48 | |
| Tallerknens diameter - Hårdhed | 520x5mm -215kg/mm2 | 520x5mm -215kg/mm2 | 520x5mm -215kg/mm2 | |
| Afstand mellem skiverne (mm) | 250 | 250 | 250 | |
| Arbejdsdybde (cm) | 2 - 10 | 2 - 10 | 2 - 10 | |
| Indstilling af dybde | Hydraulisk eller mekanisk ved hjælp af afstandsstykke | Hydraulisk eller mekanisk ved hjælp af afstandsstykke | Hydraulisk eller mekanisk ved hjælp af afstandsstykke | |
| Træk | KAT. III | KAT. III | KAT. III | |
| Parkeringsben | Standard | Standard | Standard | |
| Fingerharve (400x10mm) | Tilvalg | Tilvalg | Valgmulighed | |
| Stjernetallerkener | Valgmulighed | Valgmulighed | Valgmulighed | |
| Valsetilbud | Rørvalse (ø 550 mm), dobbelt rørvalse (ø 400 mm), Actiring (ø 540 mm), Actiflex (ø 580 mm), Actipack (ø 560 mm), Actipress (ø 560 mm), Actipress Twin (ø 560 mm) | Rørvalse (ø 550 mm), dobbelt rørvalse (ø 400 mm), Actiring (ø 540 mm), Actiflex (ø 580 mm), Actipack (ø 560 mm), Actipress (ø 560 mm), Actipress Twin (ø 560 mm) | Rørvalse (ø 550 mm), dobbelt rørvalse (ø 400 mm), Actiring (ø 540 mm), Actiflex (ø 580 mm), Actipack (ø 560 mm), Actipress (ø 560 mm), Actipress Twin (ø 560 mm) | |
| Rammesektion | 100×100×8 og 200×200×10 (centralramme) | 100×100×8 og 200×200×10 (centralramme) | 100×100×8 og 200×200×10 (centralramme) | |
| Antal dobbeltvirkende ventiler | 2 eller 1 | 2 eller 1 | 2 eller 1 | |
| Integreret såmaskine a-drill 200/500 | Tilvalg | Valgmulighed | Valgmulighed | |
| Samlet vægt med rørvalse (kg)* | 2,365 | 2,777 | 3,215 | |
| Samlet vægt med Actiflex (kg)* | 2,631 | 3,125 | 3,645 | |
| Samlet vægt med Actipack (kg)* | 2,845 | 3,369 | 3,917 | |
| Min. HP | 110 | 130 | 150 | |
| Max. HP | 200 | 250 | 300 |
* Vægt for foldbare maskiner beregnet med hydraulisk dybdejustering og belysningsudstyr.
Teknisk specifikation
Teknisk specifikation
Download brochure
|
Working width (m) |
Weight (kg)* (with cage roller) |
Power requirement HP (min/max) |
Qualidisc Farmer rigid |
2.0/ 2.5/3.0/3.5/4.0 |
1143 - 1888 |
50 /200 |
Qualidisc Farmer fold |
4.0/5.0/6.0 |
2359 - 3209 |
110 / 300 |
Qualidisc Farmer trailed |
4.0/5.0/6.0 |
3460 - 4286 |
130 / 300 |
* Vægt for foldbare maskiner beregnet med hydraulisk dybdejustering og belysningsudstyr.
