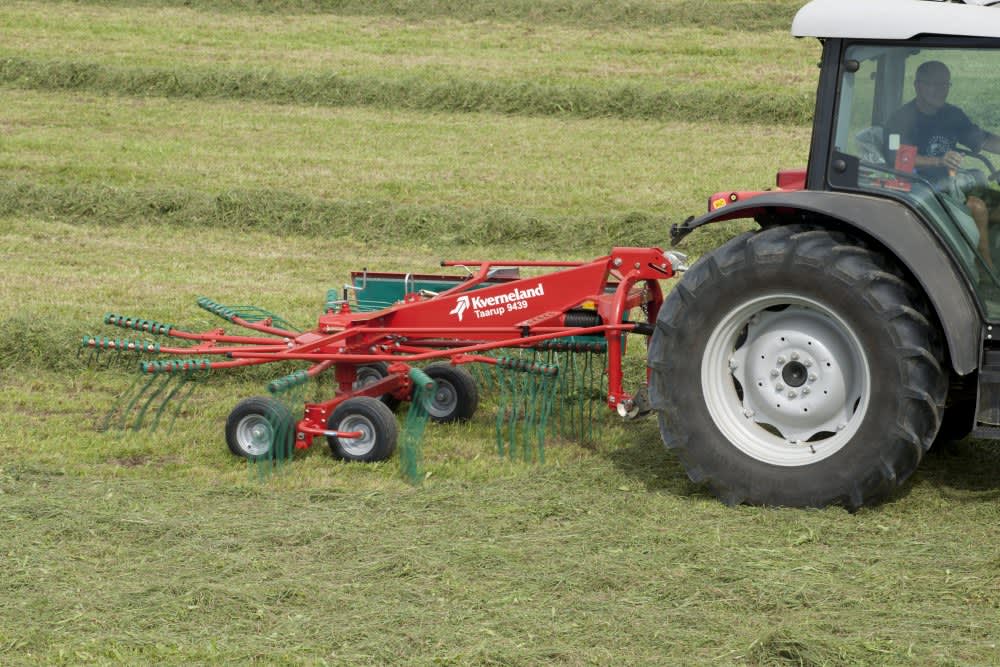

Kverneland 9439
Kompakt design med lavt behov for hestekræfter
CompactLine enkelt rotorrive med 3,90 m arbejdsbredde
Højdepunkter
- Meget let konstruktion til små traktorer
- Buet tandarm for renere riveevne
- Kompakt design med lavt behov for hestekræfter
- Vedligeholdelsesvenligt rotorhoved
Beskrivelse
Kvernelands 9439-modeller af 3-punktsmonterede rotorriver med en arbejdsbredde på 3,90 m er designet til traktorer med få hestekræfter og ligner maskiner med højere specifikationer. Alle Kvernelands CompactLine river har buede tandarme, der er designet til at danne bløde og lige skår, hvilket giver en overlegen rivekvalitet ved høje hastigheder. De helt lukkede CompactLine rotorhoved er oliefyldte og vedligeholdelsesfrie, hvilket sikrer en lang levetid.
Funktioner
Funktioner
- The Kverneland CompactLine rakes feature oil-immersed cam discs and guide rollers.
- Tine arm bearings are fully lubricated, and hence absolutely maintenance-free.
- High-tensile tine arm holders and two bearings on either side of the driveshaft, provide the compact unit with strength and dependability.
- Kverneland-developed cam tracks are specifically tailored to individual rotor diameters, for optimum raking at any working width and on any model.
- All Kverneland CompactLine rakes feature curved tine arms for significantly cleaner raking performance and optimised swath formation.
- This design ensures that the row of tines on each tine bar has a more effective approach angle to the oncoming crop, and also gives a cleaner lift out of the tine from the formed swath.
- Kverneland rotary rakes are all fitted with “Duo Tines” that deliver optimal performance and thorough raking.
- The distance between each tine on every Duo Tine is smaller than is the case with conventional tines.
- This ensures precise and thorough performance in the field, and reduces crop wastage caused by crops not being collected into the swath.
Teknisk specifikation
Teknisk specifikation
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| 9439 | ||
|---|---|---|
| Arbejdsbredde | 3.9m | |
| Antal tandarme | 11 | |
| Vægt (kg) | 460 | |
| Rotordiameter (m) | 3.05 |
Unable to load the table
Teknisk specifikation
Teknisk specifikation
Download brochureWorking Width |
No of Tine Arms |
Weight |
|
9032 |
3.20m |
9 |
320kg |
9035 |
3.50m |
10 |
420kg |
9439 |
3.90m |
11 |
460kg |
9442 T |
4.20m |
11 |
570kg |

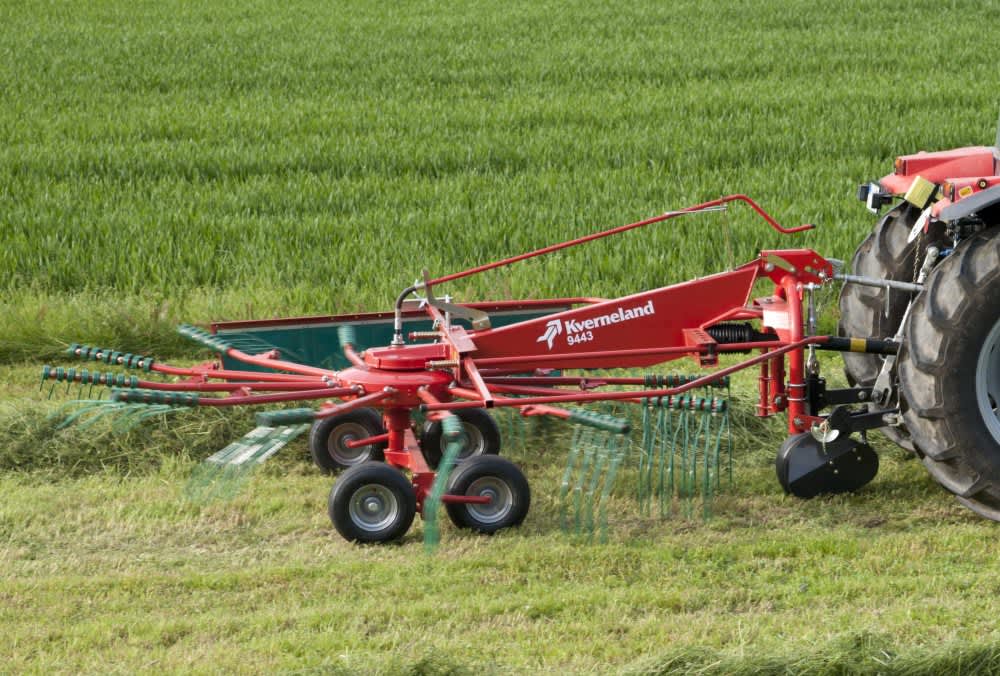

9443 |
4.30m |
12 |
498kg |
9447 T |
4.70m |
12 |
665kg |
