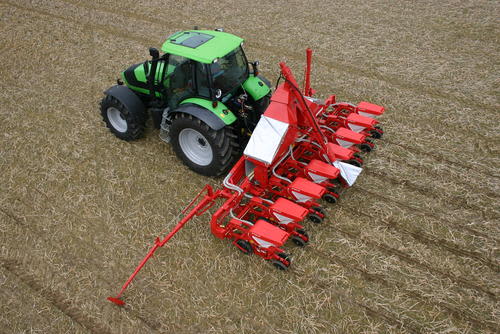

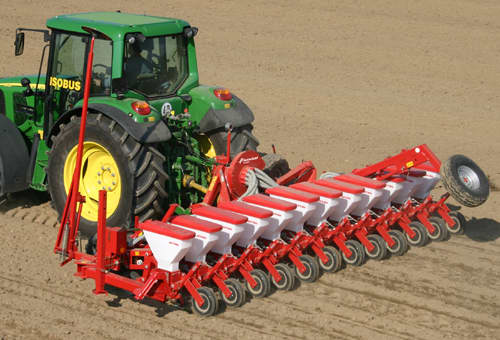

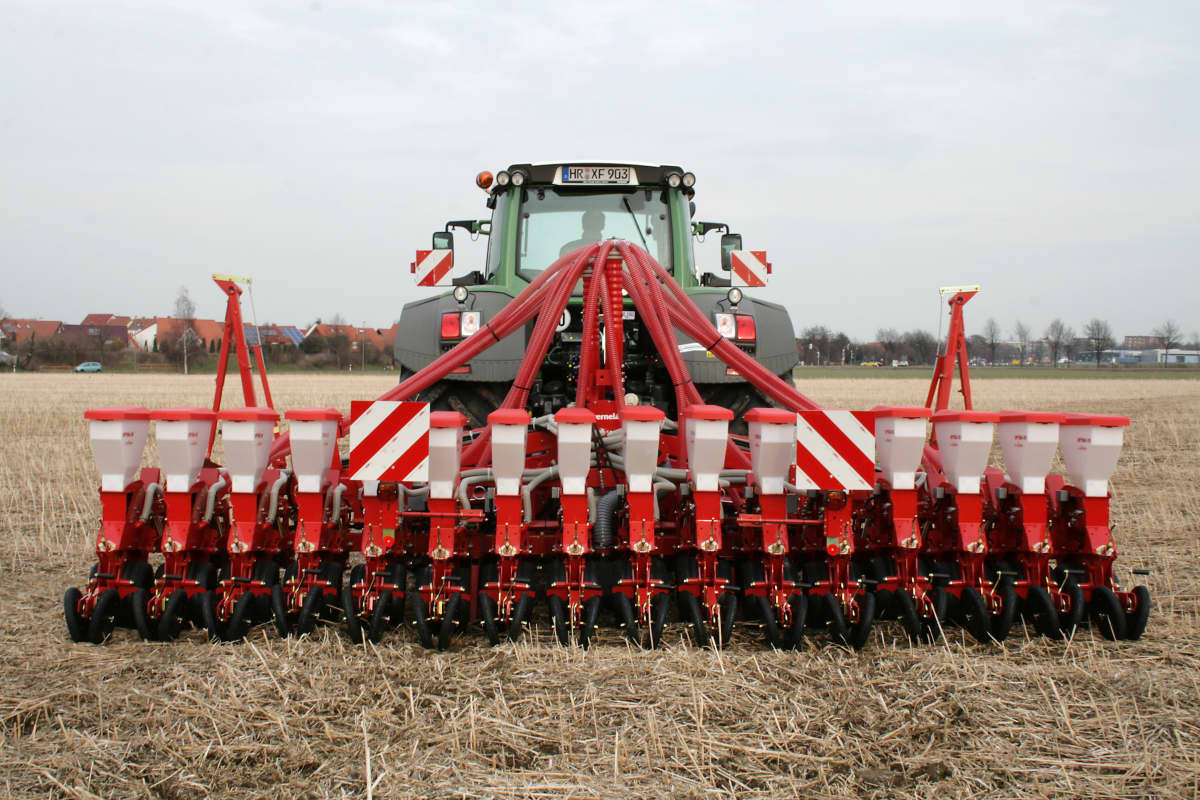

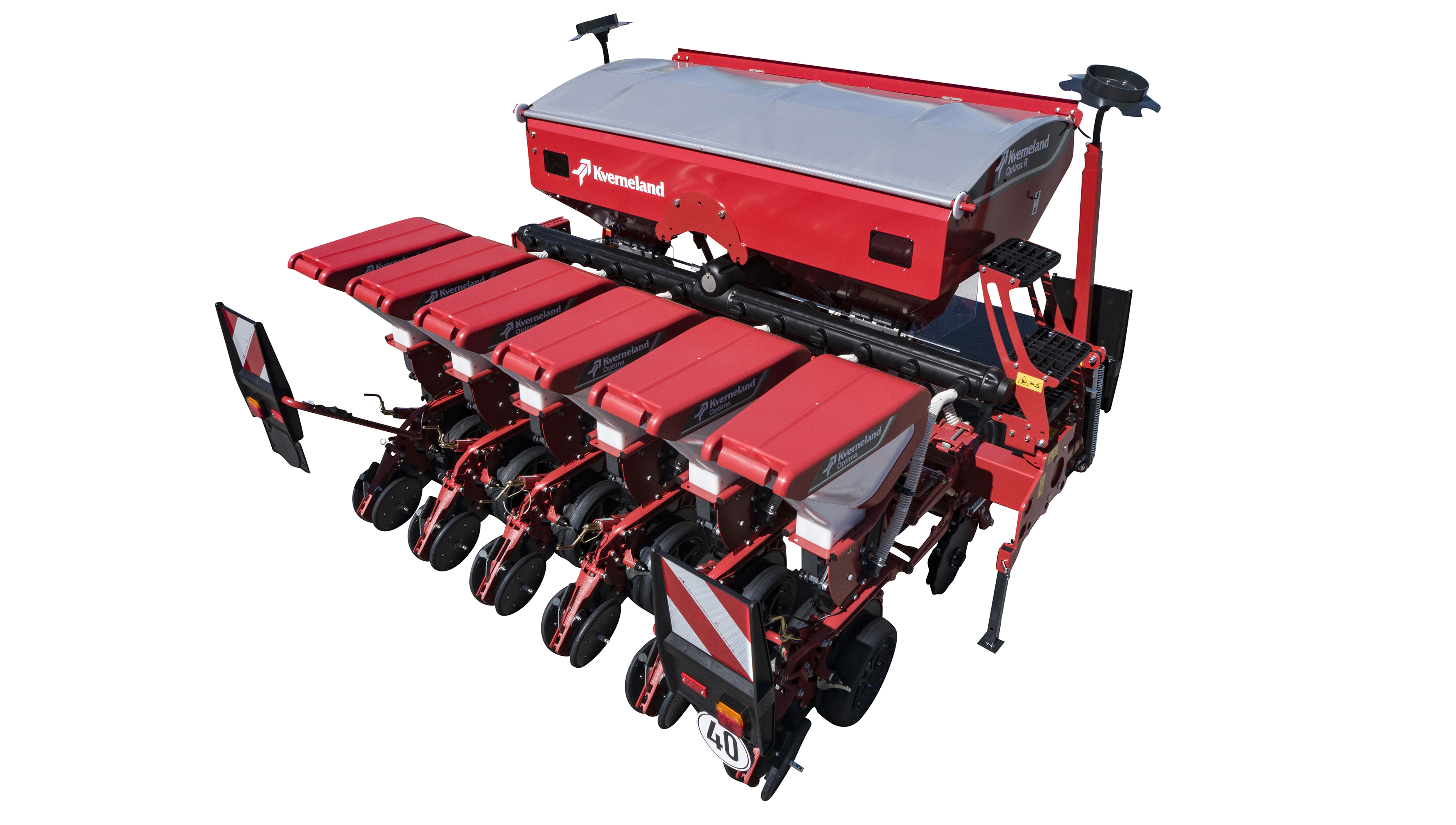

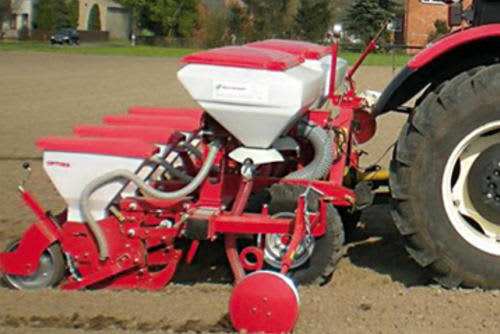

Optima R

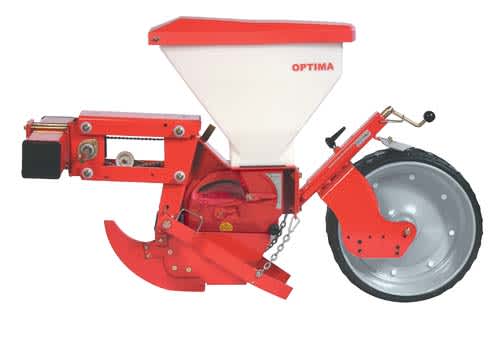

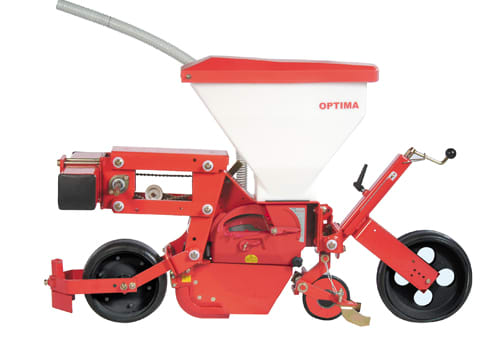

The sowing units – like the whole machine – are modular in design

• The basic element always remains the same and the equipment can be varied according to individual requirements.
• The press wheels run on maintenance free ball bearings. The sowing depth can be infinitely adjusted by means of a screw jack. A scale ensures even depth adjustment over all rows.
• The sowing coulters are designed with a high attachment point. This enables them to work deeply when sowing beans or on dry soil, without the housing being subject to wear.
• Precise depth control is achieved via the tandem design of the sowing units for beet.
• Standard sowing unit for conventional seeding in prepared conditions: maize coulter and Farmflex depth wheel 370mm (500mm optional), spring-loaded coverer and lifting device as standard
• Optima HD sowing unit: elements for mulch and conventional seeding

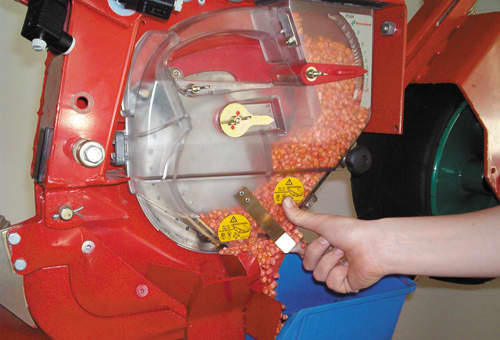

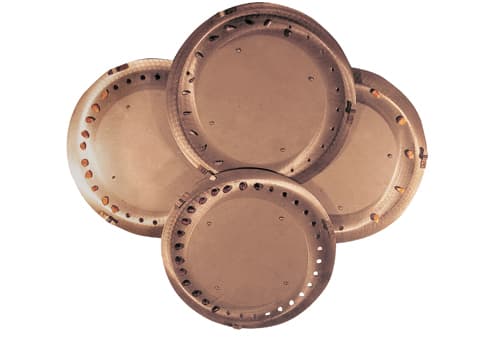

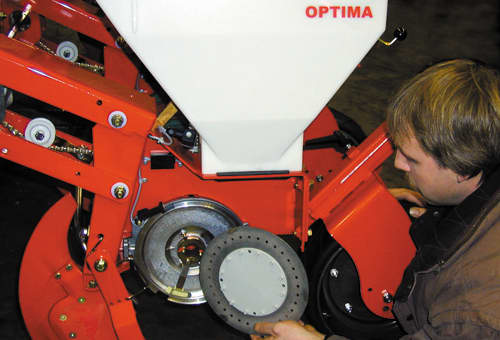

Seeding heart without seals

• The patented seeding heart by Kverneland has reduced maintenance costs to a minimum
• No friction, no wear, low drive torque, minimum maintenance: The seed disc rotates in the seeding heart together with the vacuum chamber. This seeding drum is connected to the vacuum fan via a hollow shaft
• This seed heart principal results in no loss of vacuum, and therefore a low vacuum requirement

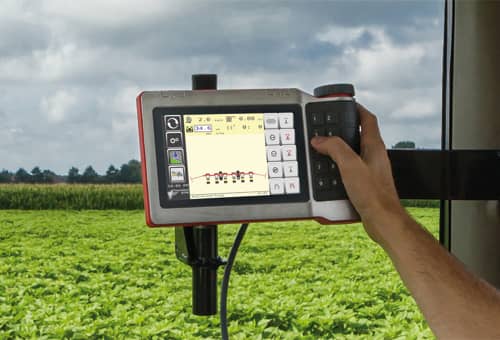

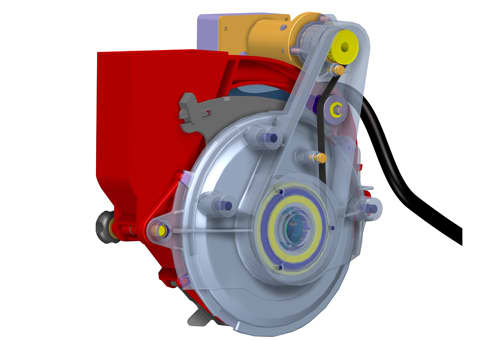

e-drive/e-drive II – complete control and monitoring of the machine from the tractor cab in accordance with ISOBUS standard

• With e-drive/e-drive II, each sowing unit is driven individually via an electric motor.
• The low-maintenance drive is connected directly to the seeding heart via a toothed belt in an encapsulated dust proof housing.
• This enable an extremely compact design and smooth drive characteristics with low current consumption
• All the data is entered and read out via an ISOBUS terminal like IsoMatch Tellus PRO or Tellus GO.
• The sowing distances are infinitely adjustable and can be changed during sowing.
• All the sowing units can be switched off individually.
• In conjunction with “close row” sowing widths of 37.5cm a further benefit of the e-drive/e-drive II comes into play: Individual tramline switching. Tramlines can be set up for any spray width.
• The e-drive/e-drive II features complete electronic monitoring of all machine functions including seed monitoring via an opto sensor.

• Stable design, modular system, low maintenance costs, high degree of wear resistance and optimum depth placement.
• For fertiliser placement Kverneland supplies hoppers for different applications.
• The chain drive for metering can be adjusted from 106 to 390kg per hectare at a distance between rows of 75cm.
• The fertilizer applicator is driven centrally by an easily accessible side mounted gear box.

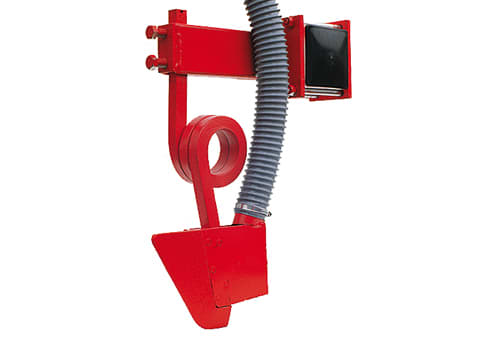

• Fertilising coulter, standard seeding with narrow coulter design and stable, reliable construction, coil spring protection from sideways forces

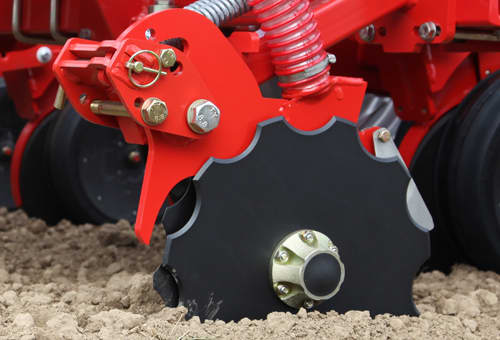

• Mulch seeding notched double-disc coulter for blockage-free and precise fertiliser placement by a Ø 350mm notched double-disc coulter.

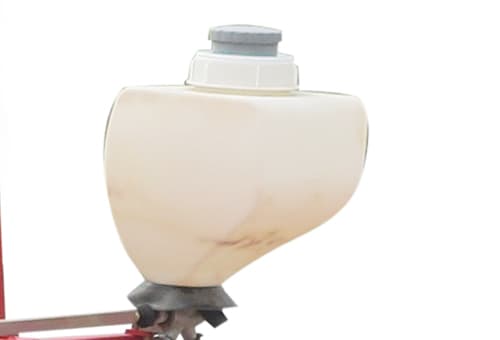

• All Optima models can be equipped with micro granule applicators. The hoppers are made of special grade plastics and have a capacity of 35 litres. Depending on the working width the hoppers supply 2 to 3 seeding units.

IsoMatch GEOCONTROL - Cost saving with immediate payback

Seeding with GPS and GEOCONTROL in combination with an electric driven precision drill is a major step towards precision and cost saving. These machines are all equipped with ISOBUS technology which with the help of the IsoMatch Tellus terminal, can be easily controlled.

Each electric driven seeding element, in combination with GPS and GEOCONTROL, is automatically switched on or off in exactly the right place, ensuring there is no overlap with any row that has already been seeded. This is especially handy in triangular fields, on curved or irregular shaped headlands.

Mere information om ISOBUS Intelligence

GEOSEED - Precision at high end

GEOSEED is offered in two different levels:

GEOSEED Level 1 is the synchronization in the machines working width. This improves the distribution of seeds up to perfection in parallel or diamond pattern: Positive effects are the best use of nutrients, water and sun. Also the wind and water erosion is decreased.

GEOSEED Level 2 is the synchronization in the whole field. This is the necessary requirement for interrow cultivation, also across the seeding direction. GEOSEED is the only system in the world, that makes this mechanic weeds control possible!

Når der besluttes, hvilket udstyr der skal købes, er det ikke altid let at finde den optimale løsning på det brede marked, som der tilbydes i dag. Teknologien udvikler sig hurtigt, da vores traktorer og redskaber er mere og mere udstyret med højteknologisk elektronik. Vi forstår denne kompleksitet og er forpligtet til at give dig nemme landbrugsløsninger. derfor er disse omkostningseffektive ISOBUS Universal Terminals, IsoMatch Tellus PRO og IsoMatch Tellus GO+ lavet til dem der ønsker en nem og effektiv maskinstyring.

More about ISOBUS Universal Terminals >

Med sine avancerede hardware og softwarefunktioner leverer IsoMatch Tellus PRO den optimale præcisionslandbrugsløsning til et alt-i-et kontrolsystem i dit traktorførerhus.

IsoMatch Tellus PRO er centrum for tilslutning af alle ISOBUS maskiner og en platform til kørsel af  præcisionslandbrugsapplikationer. Det giver alt, hvad en landmand har brug for, for at få mest muligt ud af sine maskiner og afgrøder, samt med omkostningsbesparelser i gødning, kemikalier og frø ved automatisk sektionskontrol og variabel satskontrol. Med den unikke dobbeltskærms funktion giver det mulighed for at se og styre to maskiner og processer samtidigt.

Arbejd nemt, vær i kontrol.

IsoMatch Tellus GO+ er specielt udviklet til at styre maskinen på en enkel måde. Landmanden har fuld kontrol over maskinen på præcis den måde, han ønsker. Maskinen kan nemt sættes op med de bløde taster via 7" touch skærm og optimal kontrol under kørslen skal du bruge de hårde taster og drejekontakten. det har aldrig været så nemt at styre redskabet.

Det kan være dit første skridt ind i præcisionslandbrug, aldrig har det været så let.
IsoMatch Tellus GO+ gør det nemt at styre enhver ISOBUS maskine fra dit førerhus. IsoMatch GEOCONTROL giver dig mulighed for at opnå hørere udbytte, lavere omkostninger og gøre dit arbejde meget lettere. Denne licensnøgle er opdelt i to dele, sektionskontrol og variabel ratekontrol, som er tilgængelig fra IsoMatch Shop. Nu kan du købe den specifikke funktionalitet, du har brug for.

More about IsoMatch Tellus GO+ >

With manual guidance you are perfectly on track.

The IsoMatch InLine is a light bar which allows easy manual guidance. It is the perfect assistant to get you as close as possible to your desired A-B line. Mounted in the line of sight, you can easily see the distance from the A-B line and to which direction you should steer for the ideal position. The display of the IsoMatch InLine also displays the status of the machine sections, which adds more comfort of use. The LEDs can be dimmed for night operation.

SMART
Distance to A-B line with LED indication and a numeric display

EFFICIENT
Manual guidance in combination with IsoMatch GEOCONTROL

EASY
Displays status of machine sections

The essential accessory for IsoMatch GEOCONTROL.

The IsoMatch Global 2 is the GPS antenna, with DGPS accuracy, in the IsoMatch product range. It enables satellite navigation for site-specific section control, variable rate application, manual guidance and field registration.

SMART
Allows manual guidance, automatic section control and variable rate in combination with IsoMatch GEOCONTROL

EFFICIENT
DGPS accuracy without additional subscription fees

EASY
Easy to fit with mounting brackets included

The IsoMatch Eye is the camera option in the IsoMatch product range.

IsoMatch Eye is a camera that has been developed for use with our sophisticated IsoMatch Tellus and IsoMatch Tellus GO dual screen terminal. The IsoMatch Eye is switchable from rear view to standard view.
It gives you full control and overview of entire machine operation during day and night, because of its night vision by integrated LED’s. This increases the safety e.g. when reversing the machine or manoeuvring around obstructions.

SMART
Changeable from rear view to standard view

EFFICIENT
Full control and overview of entire machine operation

EASY
Night vision by integrated LED’s

IsoMatch MultiEye is an accessory for connecting multiple cameras to the IsoMatch Universal Terminal.

With the IsoMatch MultiEye you can connect multiple cameras to the IsoMatch Tellus or IsoMatch Tellus GO+ Terminal. You can easily switch between the cameras without the need for an additional screen in you tractor cabin. It gives you full control and overview of the entire machine operation during day and night, because of its night vision by integrated LED’s. This increases the safety when reversing the machine or manoeuvring around obstructions.

SMART
You can connect up to four IsoMatch Eye cameras and easily switch between the cameras with the remote control box which is standard included.

EFFICIENT
Full control and overview of entire machine operation from every side you want.

EASY
Night vision by integrated LED’s which increases the safety when reversing the machine or manoeuvring around obstructions.

The IsoMatch Grip is an ISOBUS auxiliary device developed for great operator comfort and efficient machine control. Its ergonomic shape and the complete freedom of assigning and controlling a total of 44 implement functions from one device are unique in the market today. From your fingertips you have endless possibilities to operate all machine functions as desired. And assignments are saved per machine making it even more applicable to your needs.

More about IsoMatch Grip >

GEOSEED increases the yields of row crops and ensures maximum efficiency. Seeds are placed perfectly in line and in relation to each other.

GEOSEED is offered in two different levels:

GEOSEED Level 1 is the synchronization in the machines working width. This improves the distribution of seeds up to perfection in parallel or diamond pattern: Positive effects are the best use of nutrients, water and sun. Also the wind and water erosion is decreased.

GEOSEED Level 2 is the synchronization in the whole field. This is the necessary requirement for interrow cultivation, also across the seeding direction. GEOSEED is the only system in the world, that makes this mechanic weeds control possible!
