Kverneland 2300
Kompakt design - pålidelig ydeevne
Bagmonterede klipper til let, ubesværet klipning
Højdepunkter
- Fuldt svejset knivbjælke med runde skiver
- Fleksible arbejdsvinkler - 15° opad og 45° nedad
- Fjederbelastet BreakBack beskyttelse af knivbjælke
- Kompakt konstruktion til mindre traktorer
- Lodret transportposition
Beskrivelse

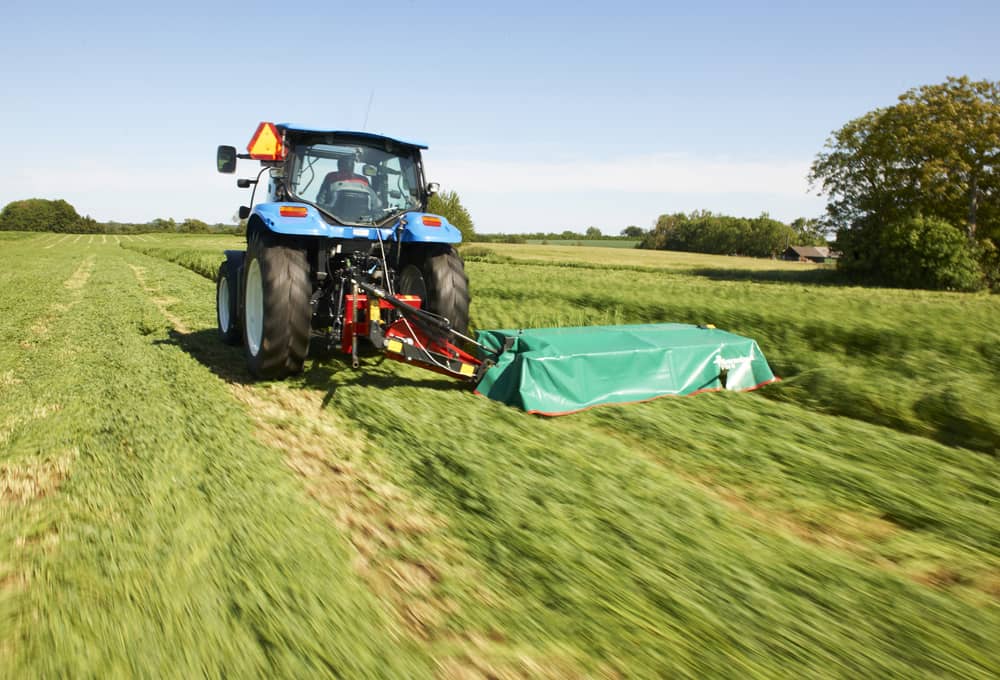

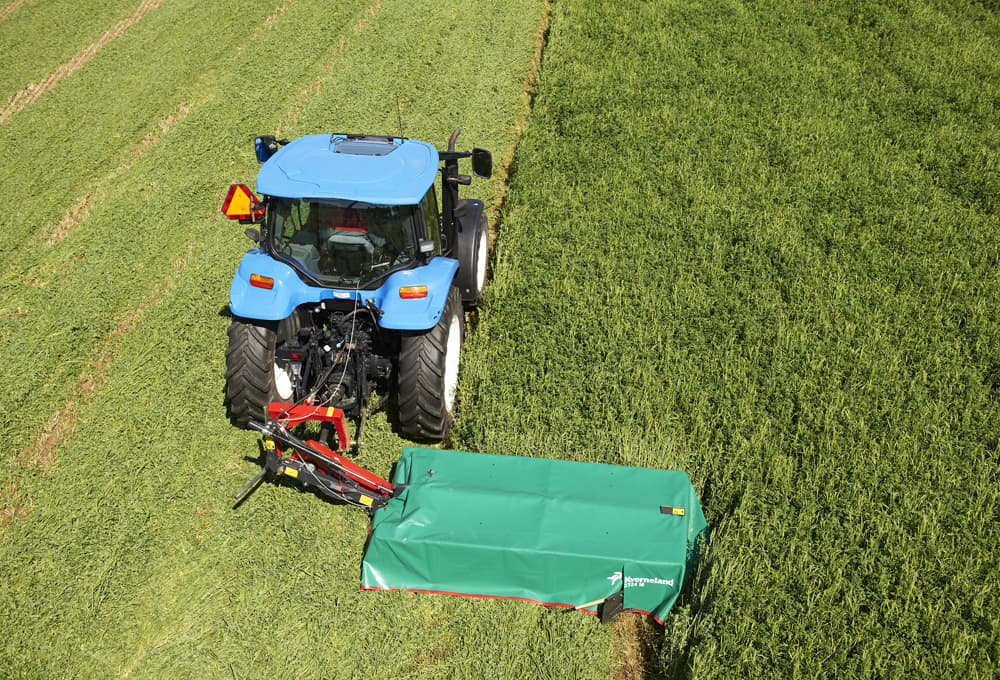

Kverneland 2300 M-serien er designet til mindre slåningsopgaver. Med arbejdsbredder på 1,66 - 2,40 m og et letvægtsdesign er denne klipper perfekt til landmænd, der leder efter en kompakt maskine med lavt strømforbrug. Det fleksible ophæng gør det muligt at klippe i vinkler på henholdsvis 15° opad og 45° nedad. Til transport foldes klipperen sammen til en lodret position et godt stykke bag traktoren for sikker transport. Hvis man støder på en forhindring, vil det fjederbelastede BreakBack-system svinge klipperen bagud for at beskytte knivbjælken.
Funktioner
- Kverneland uses round discs. Round discs are less susceptible to stone impact, and reduce shock loads in the transmission.
- Stones are expelled immediately, before they have any chance of becoming jammed. The benefits are lower repair and maintenance costs - at the same time as a clean and aggressive cut.
- The cutterbar has a high oil capacity, ensuring a very low working temperature. This ensures an efficient oil cooling and lubrication of the entire cutterbar.
- The long curved gear wheels running in oil provides a very quiet and reliable power transmission.
- The fully welded cutterbar gives a very stiff and strong design for high durability.
- With the ProFit quick knife change system, maintenance of the cutting ability is easy. The knives are changed by one simple operation using the special lever.

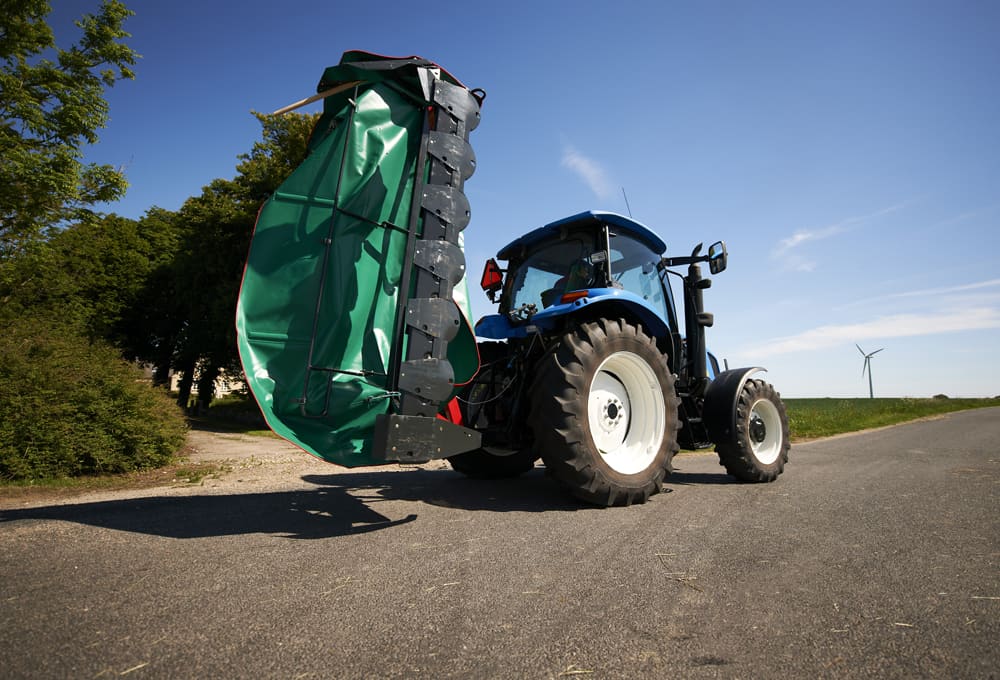

- When in transport, the mowers are folded to a vertical position well behind the tractor for safe transport.
- The centre of gravity is close to the tractor, which ensures excellent weight distribution and transport stability, even during high speed road transport.

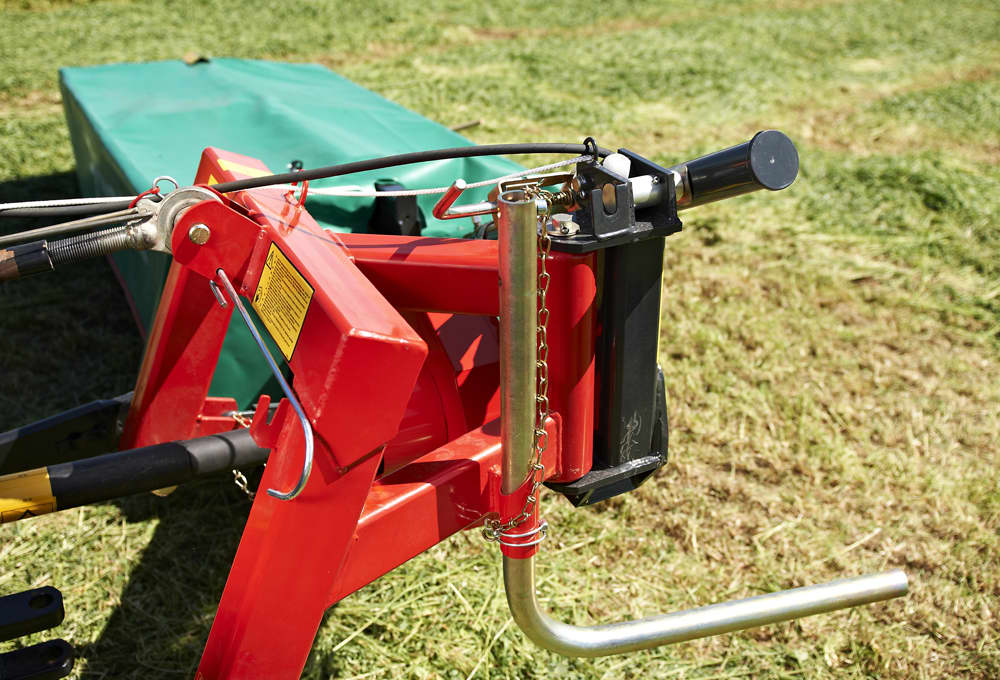

- If encountering an obstacle the spring loaded BreakBack system will swing the mower backwards to protect the cutterbar.
- Resetting the mower to working position is simply done by revering.
- On headlands the mower is lifted without activating the three-point linkage of the tractor which needs no adjustment in the field. A clever and simple solution ensuring good clearance and eliminating swath damage.
Teknisk specifikation
Teknisk specifikation
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Model | 2316 M | 2320 M | 2324 M | |
|---|---|---|---|---|
| Arbejdsbredde (m/ft) | 1.66(5'5") | 2.05(6'9") | 2.4(7'9") | |
| Transportbredde (m) | 1.2 | 1.2 | 1.2 | |
| Kobling (KAT) | 2 | 2 | 2 | |
| PTO (rpm) | 540 | 540 | 540 | |
| Min. krævet effekt PTO-effekt (kW/hk) | 26 / 36 | 31 / 42 | 34 / 46 | |
| Antal diske og knive | 4/8 | 5/10 | 6/12 |
Unable to load the table
Teknisk specifikation
Teknisk specifikation
Download brochureArbejdsbredde |
Vægt |
Kraftbehov kW/hp |
|
2316 M |
1,60 m |
390 kg |
26/36 |
2320 M |
2,00 m |
430 kg |
30/42 |
2324 M |
2,40 m |
455 kg |
33/46 |
