Optima V (SX)
Kverneland Optima V giver maksimal fleksibilitet
Maksimal fleksibilitet med den hydrauliske variable teleskopramme Kverneland Optima V
Højdepunkter
Maksimal fleksibilitet med variabel rækkebredde Den mest præcise udbringning af alle slags frø Valgfri 1000 l gødningsbeholder eller frontbeholder som ekstraudstyr Mikrogranulat-applikator GEOCONTROL og GEOSEEDBeskrivelse

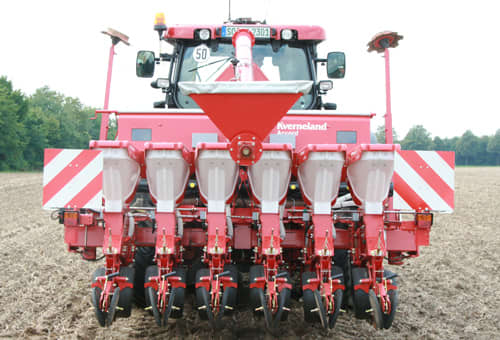

Kverneland Optima V er den perfekte præcisionssåmaskine til landmænd og entreprenører, der har brug for en maskine med forskellige rækkebredder. Optima V, en luftpræcisionssåmaskine med hydraulisk variabel rammebredde, der er udstyret med SX-såmaskiner, fås i 6 og 6+1 rækkeversioner. Rækkeafstanden kan justeres i trin på 5 cm. Rammen kombineres med de elektrisk drevne SX e-drive II-rækker.
Med Optima V er rækkebredden klar på næsten ingen tid, hvilket sikrer en hurtig reaktion på skiftende krav. Med gødningstanken på 1.000 liter og den attraktivt designede, lette ramme tilbyder denne præcisionssåmaskine en perfekt kombination af stor rækkevidde og let trækbarhed under alle forhold. Din fordel: en høj grad af fleksibilitet og mindre tidsspilde.
Højdepunkter
- Maksimal fleksibilitet med variabel rækkebredde
- Luftsystem for forbedret luftstrøm, der øger nøjagtigheden af frøafstanden
- Hovedstammen er fremstillet af runde rør, hvilket sparer vægt og øger stivheden
- Optima V kan som ekstraudstyr udstyres med en 1000 l gødningstank eller en løsning med fronttank som ekstraudstyr
- Mikrogranulat-tildeling mikro-drill er også mulig som ekstraudstyr
- I kombination med iXtra LiFe er det muligt at anvende flydende gødning under såning, se iXtra LiFe.
- Alle Optima V er eldrevne og kompatible med GEOSEED
Funktioner
The machine is based on an entirely new frame concept that allows the customer to quickly change row widths from a minimum of 30cm up to 80cm.
This new frame concept combines the proven reliability of the Optima sowing unit with an even stronger and more versatile frame.

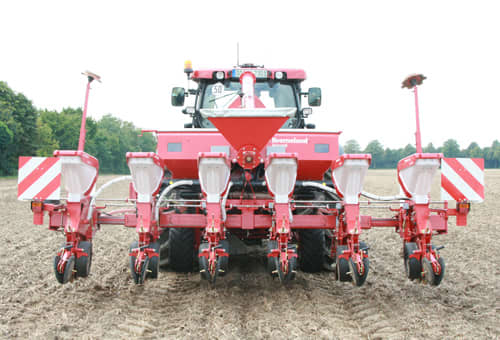

- Rows are mounted on moveable brackets fixed to a 180x180mm square tube main frame. The machine can be switched from three meters transport-position to four meters working- position with the push of one button
- Strong stability and clear design due to the new Optima headstock made of round tubing

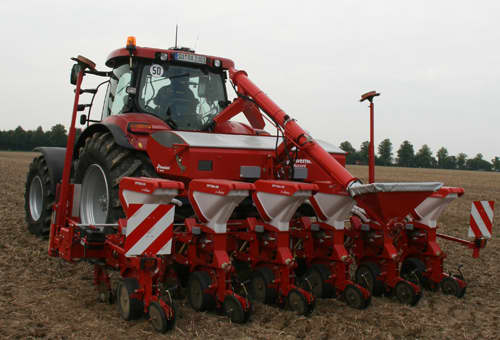

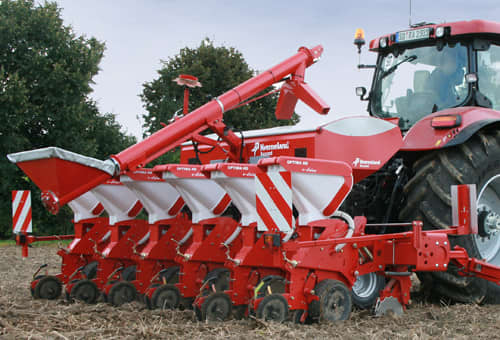

- With the fertilizer hopper directly on top of the headstock, the centre of gravity has been put to the front reducing lifting requirements.
For mulch and conventional sowing
- The heavy basic weight of the sowing unit together with the possibility to add additional pressure (up to 100kg) onto each individual sowing unit via the optional spring loaded system allows optimum depth control even unter extreme conditions.
- Effective ground contour following, due to the large lateral depth control wheels (Ø 400mm, width 120mm), precise seed placement and seed covering by means of the intermediate press wheel and the multi adjustable V-press wheel, ensure maximum field emergence.
- The sowing unit Optima HD can be mounted on all Optima frames (3-point linkage or trailed).
Seeding heart without seals
- The patented seeding heart by Kverneland has reduced maintenance costs to a minimum
- No friction, no wear, low drive torque, minimum maintenance: The seed disc rotates in the seeding heart together with the vacuum chamber. This seeding drum is connected to the vacuum fan via a hollow shaft
- This seed heart principal results in no loss of vacuum, and therefore a low vacuum requirement
e-drive/e-drive II – complete control and monitoring of the machine from the tractor cab in accordance with ISOBUS standard
- With e-drive/e-drive II, each sowing unit is driven individually via an electric motor.
- The low-maintenance drive is connected directly to the seeding heart via a toothed belt in an encapsulated dust proof housing.
- This enable an extremely compact design and smooth drive characteristics with low current consumption
- All the data is entered and read out via an ISOBUS terminal like IsoMatch Tellus PRO or Tellus GO.
- The sowing distances are infinitely adjustable and can be changed during sowing.
- All the sowing units can be switched off individually.
- In conjunction with “close row” sowing widths of 37.5cm a further benefit of the e-drive/e-drive II comes into play: Individual tramline switching. Tramlines can be set up for any spray width.
- The e-drive/e-drive II features complete electronic monitoring of all machine functions including seed monitoring via an opto sensor.
IsoMatch GEOCONTROL - Cost saving with immediate payback
Seeding with GPS and GEOCONTROL in combination with an electric driven precision drill is a major step towards precision and cost saving. These machines are all equipped with ISOBUS technology which with the help of the IsoMatch Tellus terminal, can be easily controlled.
Each electric driven seeding element, in combination with GPS and GEOCONTROL, is automatically switched on or off in exactly the right place, ensuring there is no overlap with any row that has already been seeded. This is especially handy in triangular fields, on curved or irregular shaped headlands.
GEOSEED - Precision at high end
GEOSEED is offered in two different levels:
GEOSEED Level 1 is the synchronization in the machines working width. This improves the distribution of seeds up to perfection in parallel or diamond pattern: Positive effects are the best use of nutrients, water and sun. Also the wind and water erosion is decreased.
GEOSEED Level 2 is the synchronization in the whole field. This is the necessary requirement for interrow cultivation, also across the seeding direction. GEOSEED is the only system in the world, that makes this mechanic weeds control possible!
Præcisionslandbrug
Lavet til smart, effektivt og nemt landbrug
IsoMatch GEOCONTROL er et avanceret software-program inden for IsoMatch Tellus og IsoMatch Tellus GO+, der hjælper dig med at styre alle ISOBUS kompatible Kverneland Group maskiner såsom sprøjter, spredere og såmaskiner! Kombineret med en GPS-modtager opfylder den fremtidens behov med hensyn til nemt, smart og effektivt landbrug!
Når der besluttes, hvilket udstyr der skal købes, er det ikke altid let at finde den optimale løsning på det brede marked, som der tilbydes i dag. Teknologien udvikler sig hurtigt, da vores traktorer og redskaber er mere og mere udstyret med højteknologisk elektronik. Vi forstår denne kompleksitet og er forpligtet til at give dig nemme landbrugsløsninger. derfor er disse omkostningseffektive ISOBUS Universal Terminals, IsoMatch Tellus PRO og IsoMatch Tellus GO+ lavet til dem der ønsker en nem og effektiv maskinstyring.
Med sine avancerede hardware og softwarefunktioner leverer IsoMatch Tellus PRO den optimale præcisionslandbrugsløsning til et alt-i-et kontrolsystem i dit traktorførerhus.
IsoMatch Tellus PRO er centrum for tilslutning af alle ISOBUS maskiner og en platform til kørsel af præcisionslandbrugsapplikationer. Det giver alt, hvad en landmand har brug for, for at få mest muligt ud af sine maskiner og afgrøder, samt med omkostningsbesparelser i gødning, kemikalier og frø ved automatisk sektionskontrol og variabel satskontrol. Med den unikke dobbeltskærms funktion giver det mulighed for at se og styre to maskiner og processer samtidigt.
Arbejd nemt, vær i kontrol.
IsoMatch Tellus GO+ er specielt udviklet til at styre maskinen på en enkel måde. Landmanden har fuld kontrol over maskinen på præcis den måde, han ønsker. Maskinen kan nemt sættes op med de bløde taster via 7" touch skærm og optimal kontrol under kørslen skal du bruge de hårde taster og drejekontakten. det har aldrig været så nemt at styre redskabet.
Det kan være dit første skridt ind i præcisionslandbrug, aldrig har det været så let.
IsoMatch Tellus GO+ gør det nemt at styre enhver ISOBUS maskine fra dit førerhus. IsoMatch GEOCONTROL giver dig mulighed for at opnå hørere udbytte, lavere omkostninger og gøre dit arbejde meget lettere. Denne licensnøgle er opdelt i to dele, sektionskontrol og variabel ratekontrol, som er tilgængelig fra IsoMatch Shop. Nu kan du købe den specifikke funktionalitet, du har brug for.
With manual guidance you are perfectly on track.
The IsoMatch InLine is a light bar which allows easy manual guidance. It is the perfect assistant to get you as close as possible to your desired A-B line. Mounted in the line of sight, you can easily see the distance from the A-B line and to which direction you should steer for the ideal position. The display of the IsoMatch InLine also displays the status of the machine sections, which adds more comfort of use. The LEDs can be dimmed for night operation.
SMART
Distance to A-B line with LED indication and a numeric display
EFFICIENT
Manual guidance in combination with IsoMatch GEOCONTROL
EASY
Displays status of machine sections
The essential accessory for IsoMatch GEOCONTROL.
The IsoMatch Global 2 is the GPS antenna, with DGPS accuracy, in the IsoMatch product range. It enables satellite navigation for site-specific section control, variable rate application, manual guidance and field registration.
SMART
Allows manual guidance, automatic section control and variable rate in combination with IsoMatch GEOCONTROL
EFFICIENT
DGPS accuracy without additional subscription fees
EASY
Easy to fit with mounting brackets included
The IsoMatch Eye is the camera option in the IsoMatch product range.
IsoMatch Eye is a camera that has been developed for use with our sophisticated IsoMatch Tellus and IsoMatch Tellus GO dual screen terminal. The IsoMatch Eye is switchable from rear view to standard view.
It gives you full control and overview of entire machine operation during day and night, because of its night vision by integrated LED’s. This increases the safety e.g. when reversing the machine or manoeuvring around obstructions.
SMART
Changeable from rear view to standard view
EFFICIENT
Full control and overview of entire machine operation
EASY
Night vision by integrated LED’s
IsoMatch MultiEye is an accessory for connecting multiple cameras to the IsoMatch Universal Terminal.
With the IsoMatch MultiEye you can connect multiple cameras to the IsoMatch Tellus or IsoMatch Tellus GO+ Terminal. You can easily switch between the cameras without the need for an additional screen in you tractor cabin. It gives you full control and overview of the entire machine operation during day and night, because of its night vision by integrated LED’s. This increases the safety when reversing the machine or manoeuvring around obstructions.
SMART
You can connect up to four IsoMatch Eye cameras and easily switch between the cameras with the remote control box which is standard included.
EFFICIENT
Full control and overview of entire machine operation from every side you want.
EASY
Night vision by integrated LED’s which increases the safety when reversing the machine or manoeuvring around obstructions.
The IsoMatch Grip is an ISOBUS auxiliary device developed for great operator comfort and efficient machine control. Its ergonomic shape and the complete freedom of assigning and controlling a total of 44 implement functions from one device are unique in the market today. From your fingertips you have endless possibilities to operate all machine functions as desired. And assignments are saved per machine making it even more applicable to your needs.
GEOSEED increases the yields of row crops and ensures maximum efficiency. Seeds are placed perfectly in line and in relation to each other.
GEOSEED is offered in two different levels:
GEOSEED Level 1 is the synchronization in the machines working width. This improves the distribution of seeds up to perfection in parallel or diamond pattern: Positive effects are the best use of nutrients, water and sun. Also the wind and water erosion is decreased.
GEOSEED Level 2 is the synchronization in the whole field. This is the necessary requirement for interrow cultivation, also across the seeding direction. GEOSEED is the only system in the world, that makes this mechanic weeds control possible!
Teknisk specifikation
Teknisk specifikation
Download brochureModel | Optima V | |
---|---|---|
Ramme type | variabel | |
Arbejdsbredde (m) | 2.70 - 4.50 | |
Antal SX-såningsrækker | 6 / 6+1 | |
Rækkebredde SX-række (cm) * | 45 - 80 | |
Transportbredde (m) | 3.00 | |
e-drive II, klar til GEOSEED® | Standard | |
Blæredrev 800 rpm | Standard | |
Hydraulisk blæserdrev | Tilvalg | |
Hydraulisk række løfteanordning | Standard med 6+1 | |
Forbindelse | KAT II | |
Dæk 26x12.00STG | Standard | |
Hydraulisk betjent markør | Standard | |
Hydraulisk rammeballastsæt | Tilvalg | |
Monteret gødningsspreder | Tilbehør | |
Maksimalt antal rækker med monteret gødningsspreder | 8 | |
Mekanisk drev til gødningsspreder | Standard | |
Elektrohydraulisk drev af gødningsspreder | Tilvalg | |
Gødningstankens kapacitet i liter | 1000 | |
Påfyldningssnegl ** | Tilvalg | |
Vejeceller | - | |
Antal rækker med frontbunker f-drill / iXtra LiFe | 6 / 7 | |
Mikrogranulat-applikator mikro-boremaskine | Valgmulighed |
* afhængig af antal rækker
** kun med Optima V med 6 rækker
Teknisk specifikation
Teknisk specifikation
Download brochureWorking width (m) |
2.7-4.8 |
3.15-4.8 |
2.8-4.76 |
2.64-4.4 |
Number of rows |
6 |
6+1 |
7 |
8 |
Row width (cm) |
45-80 |
75+80 (6 rows) 45-65 (7 rows) |
40-68 |
33-55 |
* afhængig af antal rækker
** kun med Optima V med 6 rækker
