Kverneland 9584 C
TerraLink Quattro til perfekt jordfølgning
ProLine heavy-duty to-rotor river med 8,4 m arbejdsbredde
Højdepunkter
- Stærk ramme for stabil rive og høj frihøjde
- TerraLink Quattro med tilpasning i 3 dimensioner
- Justerbar arbejdsbredde fra traktorkabinen
- ProLine-gearkasse med fuldt lukket oliebaddesign

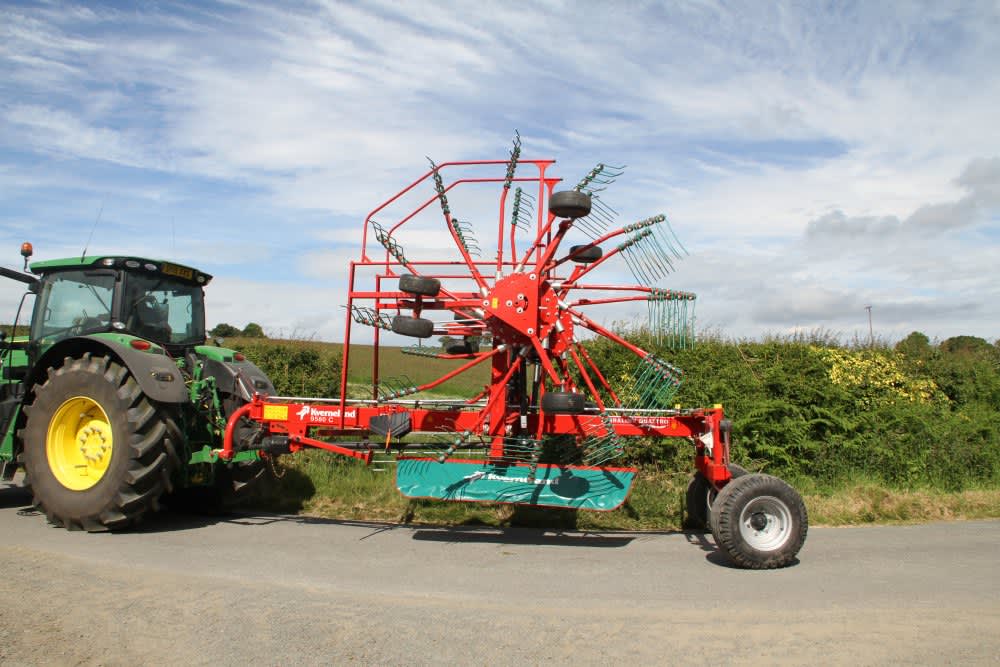

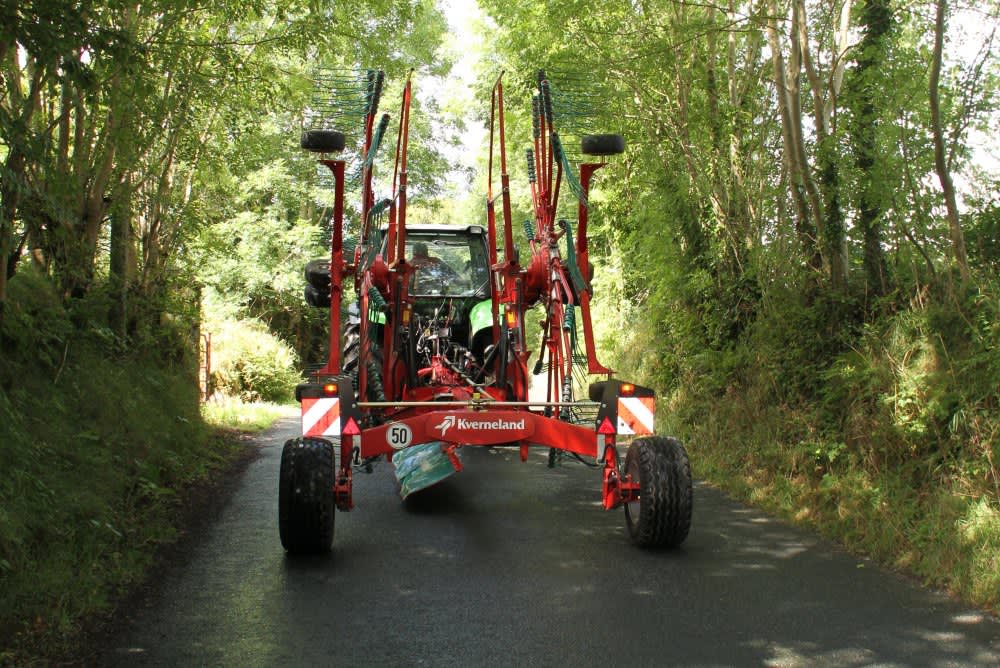

- Specialdesignet bagaksel til smalle veje
Beskrivelse
9584 C - ProLine heavy-duty to-rotor river med 8,4 m arbejdsbredde. Kverneland 9584 C er designet til de hårdeste forhold og har en højtydende gearkasse med oliebad og en stærk bæreramme. Den hydraulisk justerbare arbejds- og skårbredde og evnen til at lave skarpe sving på op til 80° er vigtige egenskaber ved disse river. Den V-formede drivlinje beskytter mod misbrug af PTO'en. ProLine-riverne har et unikt drivsystem, der består af oliedækkede tandhjul og kronhjul.
Funktioner
- The ProLine rakes feature a unique drive system which comprises oil-immersed pinion and crown wheels.
- The fully enclosed design ensures full and permanent lubrication, and makes the entire system absolutely maintenance-free.
- The hardened cam track is adjustable, and features a flat curve and an extremely large 400mm diameter, providing positive guidance to the steel rollers, and promoting quiet machine running.
- Aluminium bearing housings, with two integral ball bearings and wide support, provide solid and maintenance-free tine arm mounting.

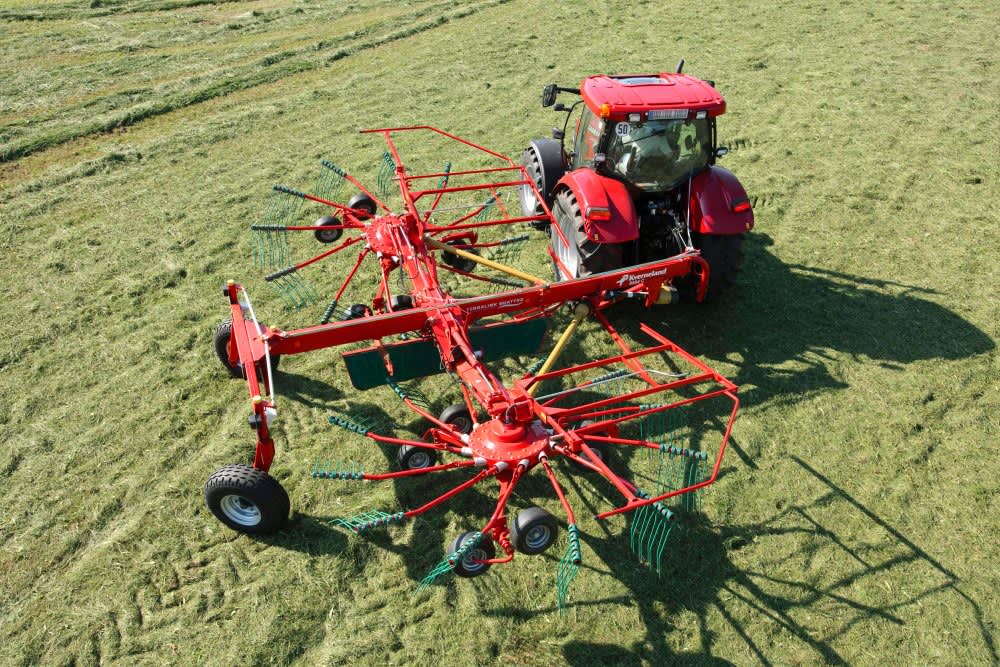

- The rear carrier frame with controlled steering facility allows tight turns on headlands and loss free swathing, even in awkwardly shaped fields.
- Even if the rotors are lifted on a steep slope, the steering system reliably counteracts any deviation.
- The ability to make sharp turns up to 80° and the cross stabilizer in the headstock are unique Kverneland features.

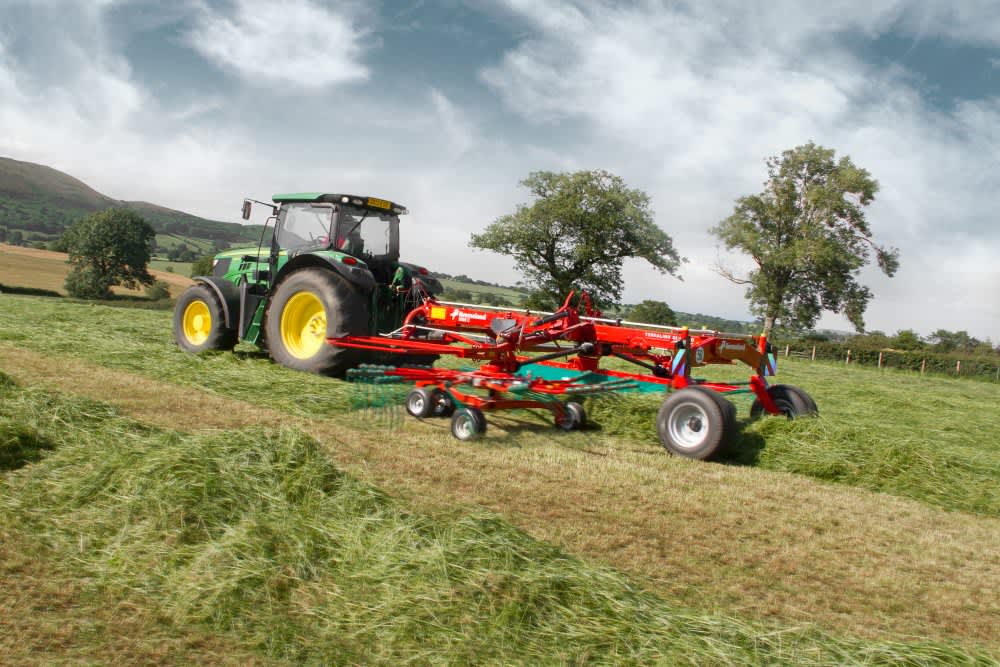

- Kverneland rotary rakes are designed to do well-shaped and clean swaths, achieved by precision in every part of the raking.
- The ground contour following ability is important to avoid dirt in the swath - especially in uneven field conditions.
- The TerraLink Quattro system controls the rotor in 3 dimensions, with a unique combination of an undercarriage with 4 wheels and a specially designed rotor suspension system. This ensures superb raking performance, even at higher forward speeds.
- Maintenance-free system - no pivots or joints to wear out.
- Automatic rotor suspension, ensuring smooth operation.
- Built-in pressure bias on front wheels prevents lifting and tine bounce.
- Optimum ground following for clean raking at high forward speeds. All wheels are positioned close to the tines.
- The Kverneland centre swath rakes offer hydraulic adjustable working width.
- This enables varying swath width, ensuring a perfect match to the pick-up width of loader wagons, balers and foragers.
Working Width |
Swath Width |
|
9472 C |
6.20 - 7.20m |
1.20 - 2.20m |
9476 C |
7.00 - 7.80m |
1.20 - 2.20m |
9580 C |
7.00 - 8.00m |
1.20 - 2.20m |
9584 C |
7.60 - 8.40m |
1.30 - 2.10m |
9590 C Hydro |
8.00 - 9.00m |
1.20 - 2.20m |
95110 C |
9.30 - 11.00m |
1.40 - 3.10m |
Teknisk specifikation
Teknisk specifikation
Download brochure| 9584 C | ||
|---|---|---|
| Arbejdsbredde | 7.6-8.4m | |
| Antal tandarme | 2x12 | |
| Vægt (kg) | 1950 | |
| Rotorens diameter (m) | 3.65 |
Teknisk specifikation
Teknisk specifikation
Download brochureWorking Width |
Tine Arms |
Weight |
|
9580 C |
7.00 - 8.00 m |
2x12 |
2065 kg |
9584 C |
7.60 - 8.40 m |
2x12 |
1950 kg |
9590 C Hydro |
8.00 - 9.00 m |
2x14 |
2310 kg |
9590 C Pro |
8.00 9.00 m |
2x14 |
2310 kg |
