Kverneland 94125 C Plus
Kompakt, men effektiv maskine
CompactLine fire-rotor rive med 10,0-12,5 m arbejdsbredde
Højdepunkter
- Vedligeholdelsesvenlig CompactLine gearkasse
- TerraLink Quattro rotorophængssystem
- Hydraulisk justering af arbejds- og svadbredde
- Meget manøvredygtig - kan foretage skarpe sving op til 80⁰
- Nem og intuitiv kontrolfunktion
Beskrivelse
94125 C riverne med CompactLine gearkasse er designet til at være nemme at bruge med en stor arbejdsbredde på 12,5 meter. De mestrer rivekvalitet og nem betjening ved at fokusere på de elementer, der betyder noget. Arbejdsbredden kan justeres hydraulisk mellem 10,0 og 12,5 m, skårbredden mellem 1,2 og 2,2 m og transportpositionen på mindre end 4,0 m uden at fjerne tandarmene. Det vedligeholdelsesfrie TerraLink Quattro rotorophæng sikrer optimal jordkonturfølgning.
Funktioner
Funktioner

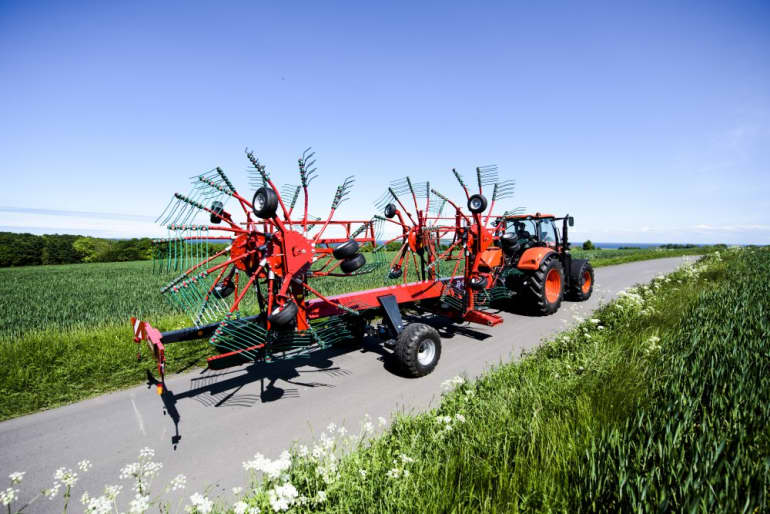

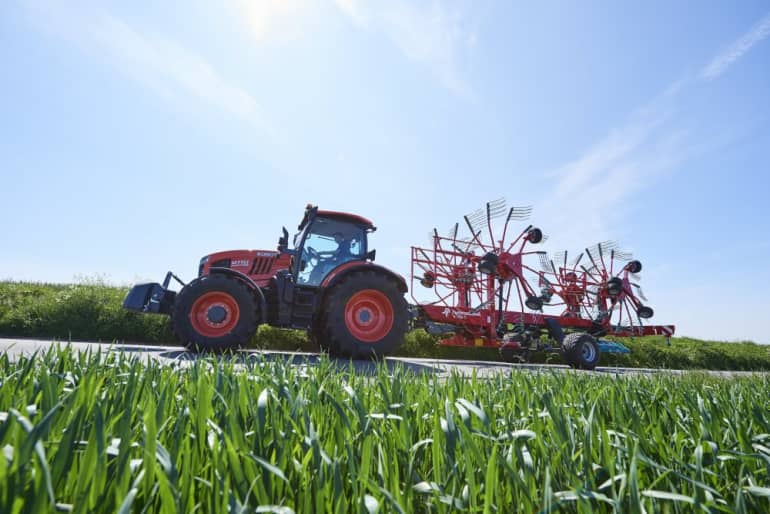

The Kverneland 94125 C gives no reasons for wasting time, not even when moving between fields. Just raise the rotors and off you go, securely below 4.00m transport height. There is no need to leave the tractor to remove tines arms. Large transport wheels and hydraulic brakes are standard.

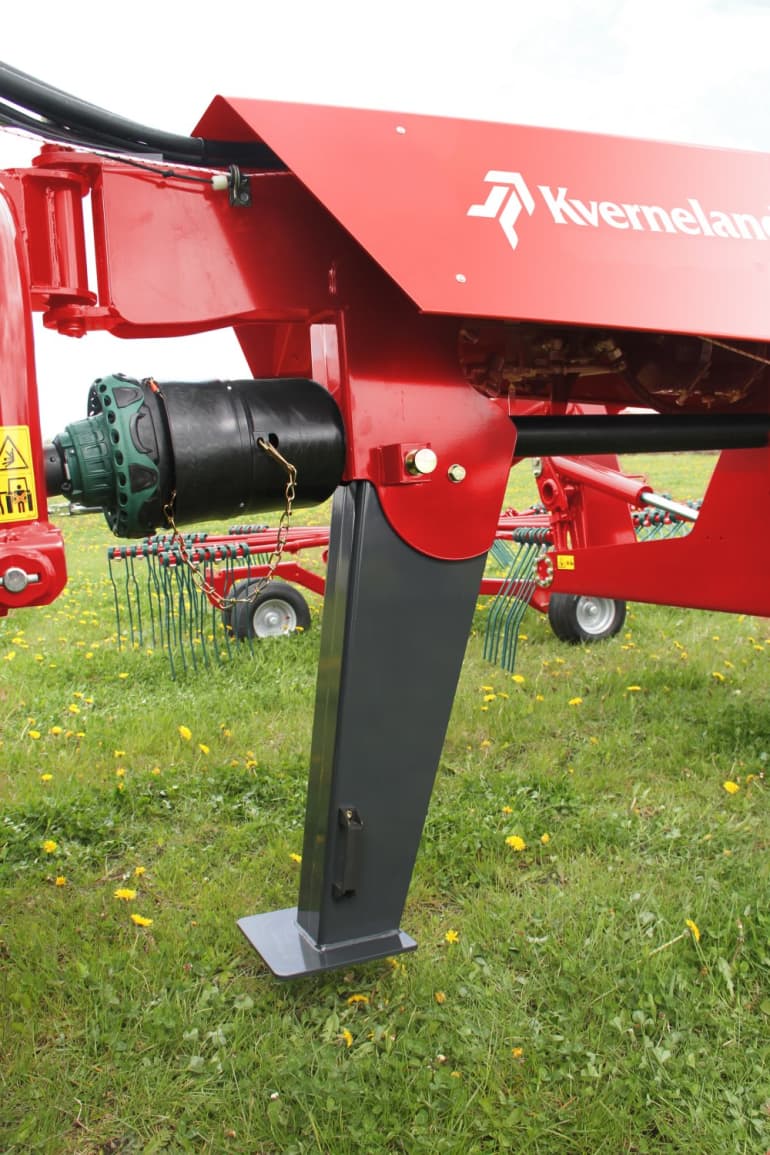

For storage all tines arms are detachable to allow a storage height as low as 3.40m. A strong and stable storage foot ensures fast and trouble-free coupling and uncoupling.
The Kverneland 94125 C comes with enhanced headland management. In addition to high ground clearance of rotors during headland turns it is possible to tailor time delay between lifting/lowering the front and rear rotors to driving speed and field conditions. This is done mechanically in an easy and uncomplicated way.
The Kverneland 94125 Cwill do sharp turns of up to 80⁰, both on headlands and during transport when passing narrow gate ways.The rotors can as a standard feature lift pairwise, convenient for raking crop away from fence lines or when raking low crop fields
The hydraulic adjustment of working and swath width allows you to customise swath intensity and width to the capacity of the following machine, conveniently handled and controlled from the tractor seat. Working width can be set between 10 and 12.50m and swath width can be adjusted between 1.20 and 2.20m, adding the necessary flexibility.
- Kverneland rotary rakes are designed to do well-shaped and clean swaths, achieved by precision in every part of the raking.
- The ground contour following ability is important to avoid dirt in the swath - especially in uneven field conditions.
- The TerraLink Quattro system controls the rotor in 3 dimensions, with a unique combination of an undercarriage with 4 wheels and a specially designed rotor suspension system. This ensures superb raking performance, even at higher forward speeds.
- Maintenance-free system - no pivots or joints to wear out.
- Automatic rotor suspension, ensuring smooth operation.
- Built-in pressure bias on front wheels prevents lifting and tine bounce.
- Optimum ground following for clean raking at high forward speeds. All wheels are positioned close to the tines.
Teknisk specifikation
Teknisk specifikation
Download brochure| 94125 C | ||
|---|---|---|
| Arbejdsbredde | 10.0-12.5m | |
| Tandarmene | 4x12 | |
| Vægt (kg) | 4300 | |
| Rotordiameter (m) | 3.05 / 3.35 |
Teknisk specifikation
Teknisk specifikation
Download brochureWorking Width |
Tine Arms |
Weight |
|
94125 C |
10.00-12.50m |
4x12 |
4250kg |
95130 C |
10.00-12.50m |
4x12 |
4700kg |
