Kverneland 2600
Fleksibelt ophæng - nem betjening
Sidemonterede almindelige skiveslåmaskiner med en arbejdsvinkel på op til 35°.
Højdepunkter
- Fuldt svejset knivbjælke med runde skiver
- NonStop BreakBack
- Fleksibel ophængning
- Let løft på forageren

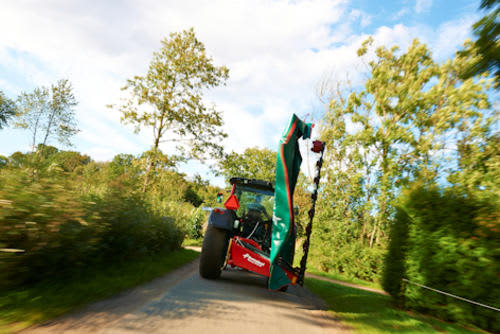

- Lodret transportposition
Beskrivelse

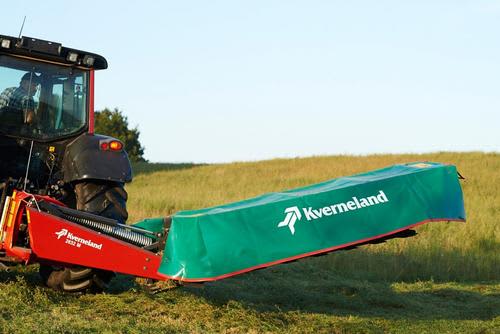

Kverneland 2600 M serie af bagmonterede skiveslåmaskiner med arbejdsbredder på 2,81 - 3,16 m. Den tilbyder meget pålidelig ydelse, nem håndtering og høj ydelse ved lavt effektbehov. På grund af det fleksible ophæng er denne klipper særdeles velegnet til arbejde på skråninger og i kuperede områder, med en arbejdsvinkel på 35° op og ned. Et integreret NonStop BreakBack-system beskytter knivbjælken mod fremmede forhindringer. Under transport foldes klipperen hydraulisk sammen til en lodret position et godt stykke bag traktoren.
Funktioner

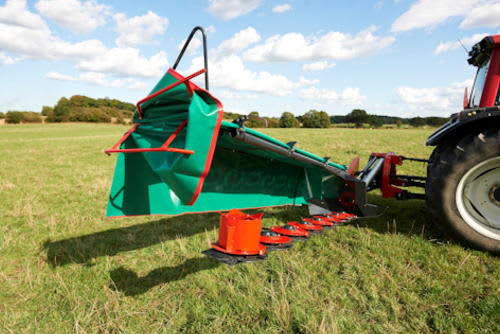

- Kverneland uses round discs. Round discs are less susceptible to stone impact, and reduce shock loads in the transmission.
- Stones are expelled immediately, before they have any chance of becoming jammed. The benefits are lower repair and maintenance costs - at the same time as a clean and aggressive cut.
- The cutterbar has a high oil capacity, ensuring a very low working temperature. This ensures an efficient oil cooling and lubrication of the entire cutterbar.
- The long curved gear wheels running in oil provides a very quiet and reliable power transmission.
- The fully welded cutterbar gives a very stiff and strong design for high durability.
- With the ProFit quick knife change system, maintenance of the cutting ability is easy. The knives are changed by one simple operation using the special lever.

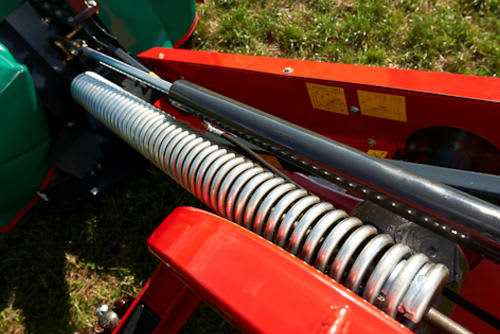

- Kverneland 2600 series offers a very flexible suspension giving perfect ground contour following.
- This ensures that the mower is able to adapt to extremely uneven field conditions, giving the best mowing result.
- The linkage of Kverneland 2600 ensures that the mower is capable of working on steep angles or in hilly conditions.
- For extreme hilly conditions an optional hillside equipment is offered.
- To offer maximum protection of the cutterbar, these machines are fitted with the well-known Kverneland BreakBack solution.
- When encountering an obstacle, the BreakBack will swing the machine backwards and over the obstacle, returning it to the original working position once the obstacle has been passed
- On headlands the mower is lifted without activating the three-point linkage of the tractor which needs no adjustment in the field. A clever and simple solution ensuring good clearance and eliminating swath damage.
Teknisk specifikation
Teknisk specifikation
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Model | 2624 M | 2628 M | 2632 M | |
|---|---|---|---|---|
| Arbejdsbredde (m/ft) | 2.4(7'9") | 2.81(9'3") | 3.16(10'4") | |
| Transportbredde (m) | 1.4 | 1.4 | 1.4 | |
| Kobling (KAT) | 2 | 2 | 2 | |
| PTO (rpm) | 540 | 540 | 540 | |
| Min. krævet effekt PTO-effekt (kW/hk) | 33 / 45 | 37 / 50 | 40 / 55 | |
| Antal diske og knive | 6/12 | 7/14 | 8/16 |
Unable to load the table
Teknisk specifikation
Teknisk specifikation
Download brochureArbejdsbredde |
Antal skiver |
Vægt |
Kraftbehov |
|
2624 |
2,40 m |
6 |
585 kg |
33/45 |
2628 |
2,80 m |
7 |
610 kg |
37/50 |
2632 |
3,20 m |
8 |
645 kg |
40/55 |
