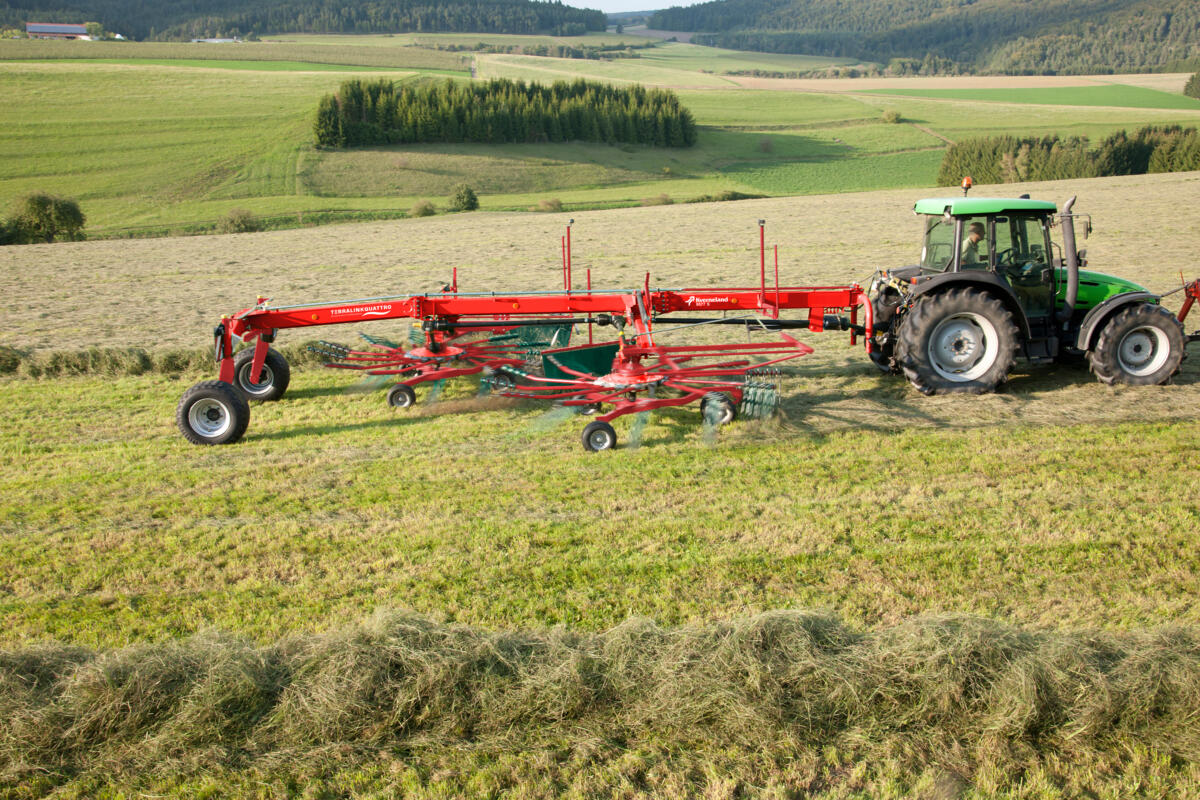

Kverneland 9577 S
TerraLink Quattro til perfekt jordfølgning
ProLine multirotor sideudlægningsrive med 7,7 m arbejdsbredde
Højdepunkter
- Vedligeholdelsesfri rotorhoved
- Frontsvadbræt standard på alle maskiner
- 13 arme og fem tænder på den bageste rotor
- 380 mm hjul standard
Beskrivelse
9577 S -ProLine multirotor-rive med omkostningseffektiv arbejdsbredde på 7,7 m. Konceptet med sideudlægning giver fremragende fleksibilitet i skårdannelsen og gør det muligt at samle afgrøder fra en arbejdsbredde på 15,00 m i ét skår. Hvis afgrødemængden er lav, kan der desuden rives flere gange i én række. 9577 S er udstyret med den anerkendte ProLine-gearkasse med vedligeholdelsesfrit rotorhoved. 12 arme foran og 13 arme bagpå sikrer perfekt skårkvalitet.
Funktioner
- The ProLine rakes feature a unique drive system which comprises oil-immersed pinion and crown wheels.
- The fully enclosed design ensures full and permanent lubrication, and makes the entire system absolutely maintenance-free.
- The hardened cam track is adjustable, and features a flat curve and an extremely large 400mm diameter, providing positive guidance to the steel rollers, and promoting quiet machine running.
- Aluminium bearing housings, with two integral ball bearings and wide support, provide solid and maintenance-free tine arm mounting.
- Kverneland rotary rakes are designed to do well-shaped and clean swaths, achieved by precision in every part of the raking.
- The ground contour following ability is important to avoid dirt in the swath - especially in uneven field conditions.
- The TerraLink Quattro system controls the rotor in 3 dimensions, with a unique combination of an undercarriage with 4 wheels and a specially designed rotor suspension system. This ensures superb raking performance, even at higher forward speeds.
- Maintenance-free system - no pivots or joints to wear out.
- Automatic rotor suspension, ensuring smooth operation.
- Built-in pressure bias on front wheels prevents lifting and tine bounce.
- Optimum ground following for clean raking at high forward speeds. All wheels are positioned close to the tines.
- The rear carrier frame with controlled steering facility allows tight turns on headlands and loss free swathing, even in awkwardly shaped fields.
- Even if the rotors are lifted on a steep slope, the steering system reliably counteracts any deviation.
- The ability to make sharp turns up to 80° and the cross stabilizer in the headstock are unique Kverneland features.
Teknisk specifikation
Teknisk specifikation
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| 9577 S | ||
|---|---|---|
| Arbejdsbredde | 7.7m | |
| Antal tandarme | 12/13 | |
| Vægt (kg) | 2160 | |
| Rotorens diameter (m) | 3.65 |
Unable to load the table
Teknisk specifikation
Teknisk specifikation
Download brochureWorking Width |
Tine Arms |
Weight |
|
9577 S |
7.70m |
12/13 |
2290kg |
