Kverneland Actiroll
Perfekt konsolidering - et solidt fundament
Konsolidering og nivellering
Beskrivelse
Kverneland Actiroll bugserede tromler sikrer jordkomprimering og nivellering, enten efter såning for en optimal spiring eller efter vinterfrost. Desuden reducerer de jordens porøsitet og begrænser fordampningen under tørre forhold. Cambridge-ringene overbeviser med et patenteret design, der gør det muligt for Kverneland at give 3 eller 6 års garanti på ringene.
De enkelte sektioner er helt uafhængige af hinanden. Hver ringsektion er individuelt hængslet i midten for at sikre både optimal tilpasning til de varierende jordforhold og vægtfordeling. De enkelte ringsektioner er placeret optimalt i forhold til hinanden. Det forskudte symmetriske ringsektioner forhindrer overlapning og dannelse af volde Afhængigt af arbejdsbredden er valsesektionerne opdelt i 3 til 9 sektionerr.
Funktioner
- The strong and robust frame provides for high weight per meter.
- The compact design allows short manoeuvres on headlands.

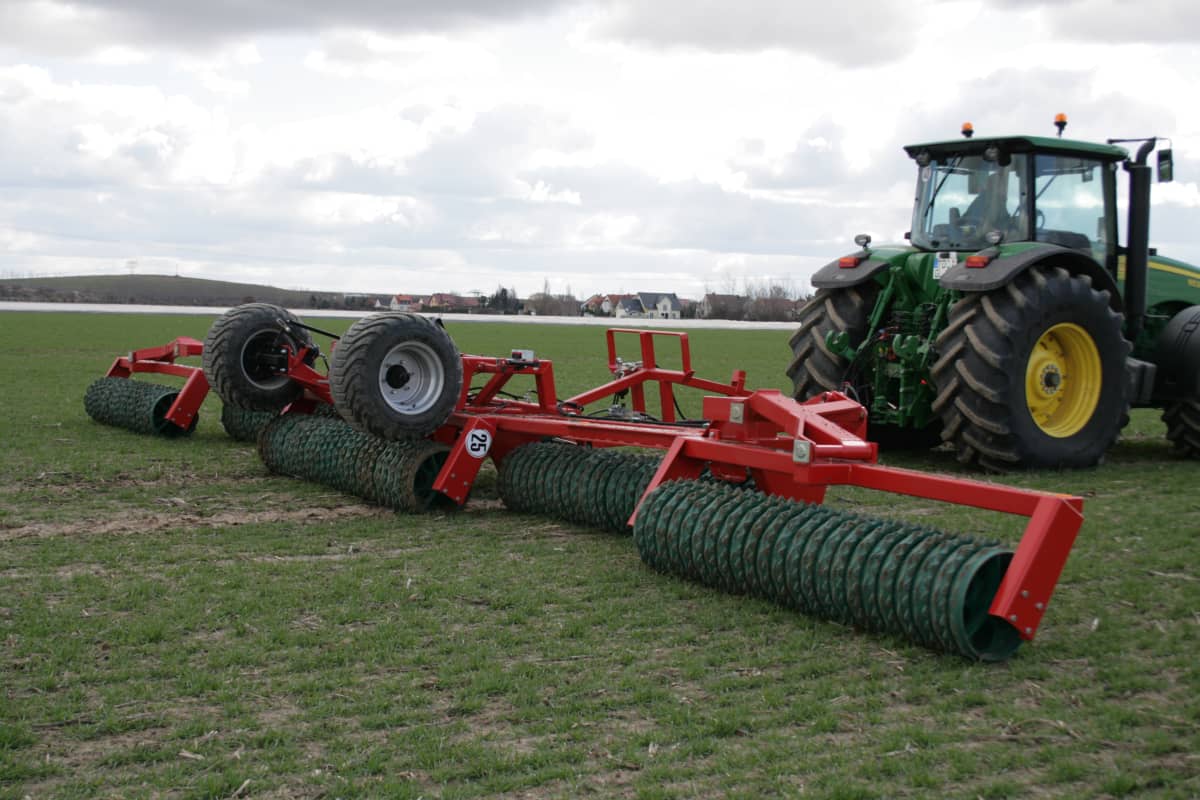

- The rear position of the central gang ensures short turns without damaging the crop.
- The heavy-duty frame of the Actiroll HDC is ready to be equipped with the levelling Clod Board.
- Due to the heavy weight applied by this roller (758 kg/m compared to 524 kg of the Actiroll HD 1230), the Actiroll HDC has an additional hydraulic 3D safety system in front/rear to allow each section to avoid any obstacle.
- In order to increase the roller weight and to pick-up stones in the field, stone boxes can be added on the lateral sections. Each box holds 150kg of stones. During folding, the boxes are emptied automatically

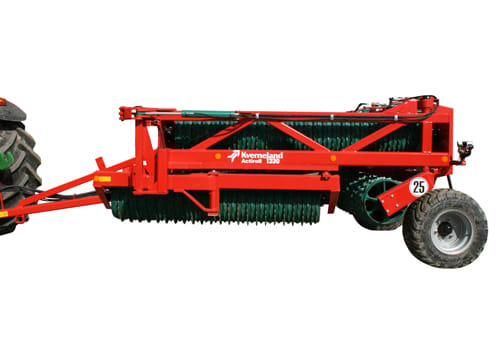

- Strong hitch for a safety transport.

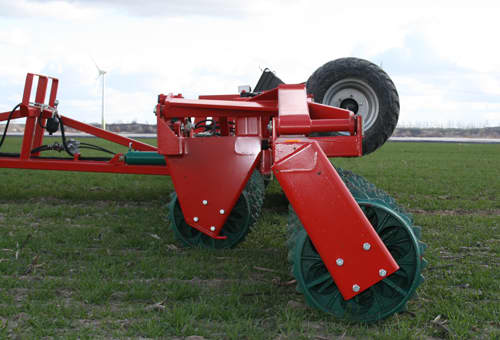

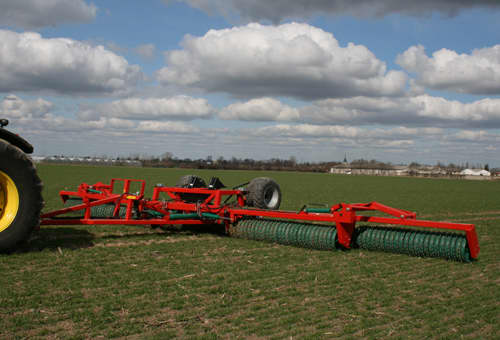

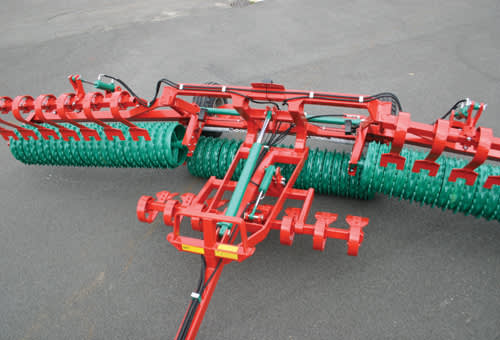

- Robust frame on Actiroll:
Central frame: 100x100x10 mm
Wing frame : 150x100x6 mm - Heavy duty frame on Actiroll-HD
Central frame : 100x100x10 mm + 80 x 80 x 10 mm
Wing frame : 150x100x10 mm - The central disc gang is at the back to avoid digging out the young crop

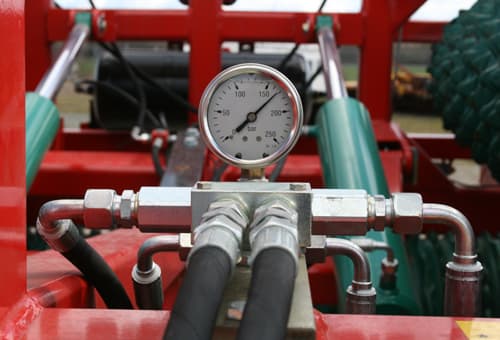

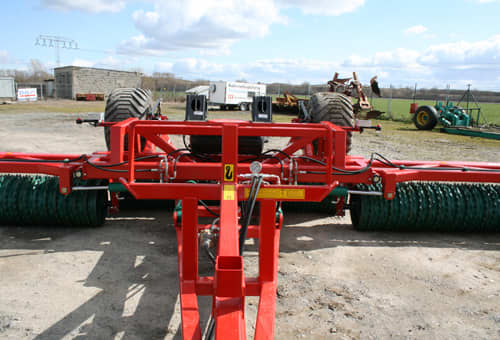

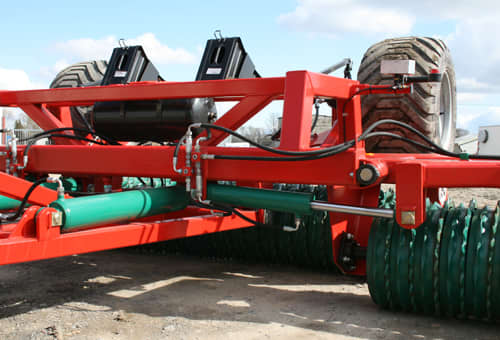

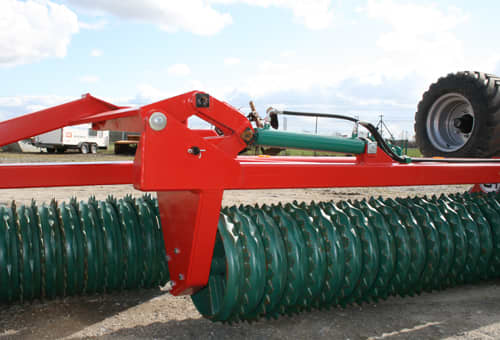

- Mechanical weight distribution system ‘’Contoura’’on Actiroll and hydraulic one on Actiroll HD.
- Homogeneous weight transfer on the whole working width (33% on each disc gang instead of 25%/50%/25%).
- Each roller section works independently ensuring optimal soil contact along the whole working width .
- Two springs located on each extension equally transfer the load onto the wings (for Actiroll 6.30m to 8.30m). With the Actiroll 9.30m as well as with the Actiroll HD/HDC (9.50m, 10.30m and 12.30m) the load is transferred by two hydraulic cylinders and one accumulator.

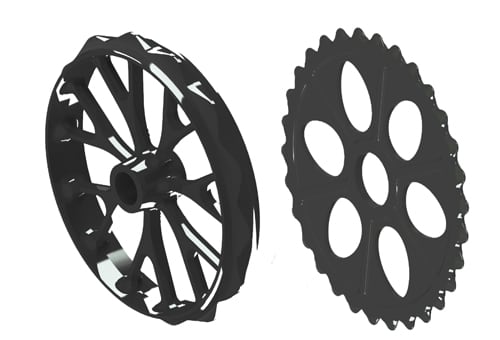

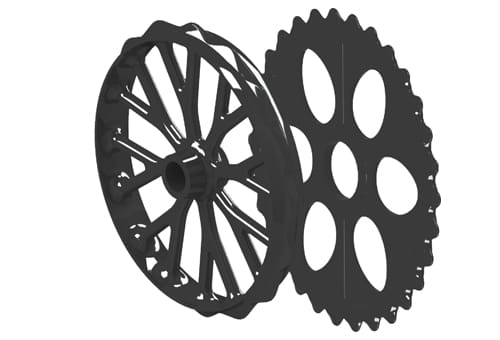

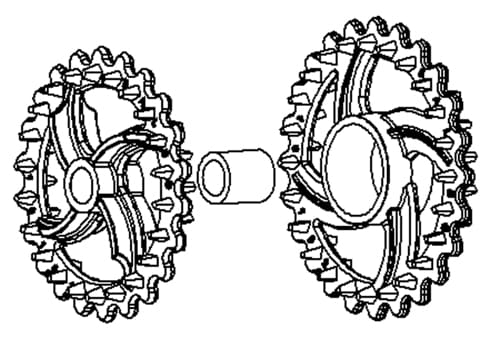

- The exceptional cast quality and special design used for the rings allows us to extend the warranty time to 3 years on Crosskill and Cracker rings. Up to 6 years on Cambridge Stone Ring. They are assembled onto a heat treated shaft (ø 60mm), maintained on each side by strong bearings.
- The adjustment of the rings gap is made by simple end stops located on each side of the gang. This adjustment can be made without any dismantling

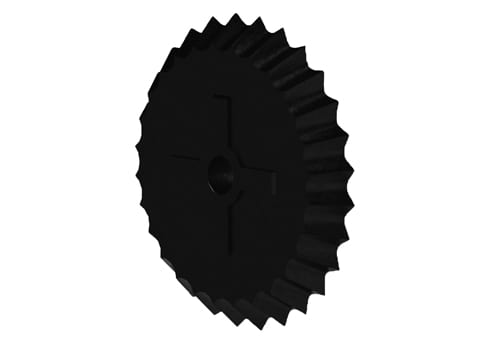

Cambridge ø 500mm
Ideal for ballasting young plants (for a better contact between the roots and the soil and increase the sucking). Can be used after ploughing as well (with Clod Board) or after a prepared field. Good auto-cleaning effect.
Cambridge ø 550mm (from 5.30m classic up to 24.30m):
Same function - used for heavy soils
Cambridge ø 600mm (from 6.30m to 16.30m):
Same function - used for heavy soils
Crosskill ø 530 mm (whole range) and heavy Crosskill ø 600 mm on Actiroll HD/HDC only
For tough clods and stony conditions, good auto-cleaning effect in wet conditions because of the ring diameter difference
Cracker ø500mm/ ø550mm
These rings are able to run cleaner due to the movement of each ring. They also apply a downforce for a better contact of the seeds to the soil. The result is a loose top layer that prevents capping and underneath firm layers for a better root development. In combination with a cracker board, these rings are ideal for seedbed preparation, to fight against weevil on maize stalks as its habitat for hibernation is destroyed. They also support the tillering of grass and seed germination thanks to a better seed-to-soil contact

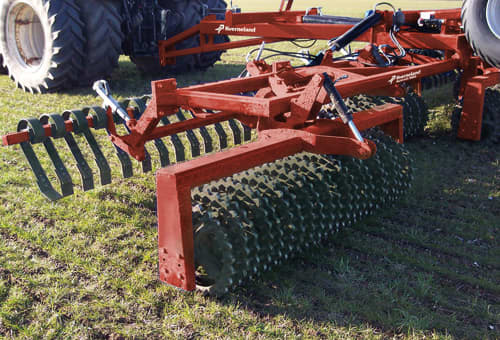

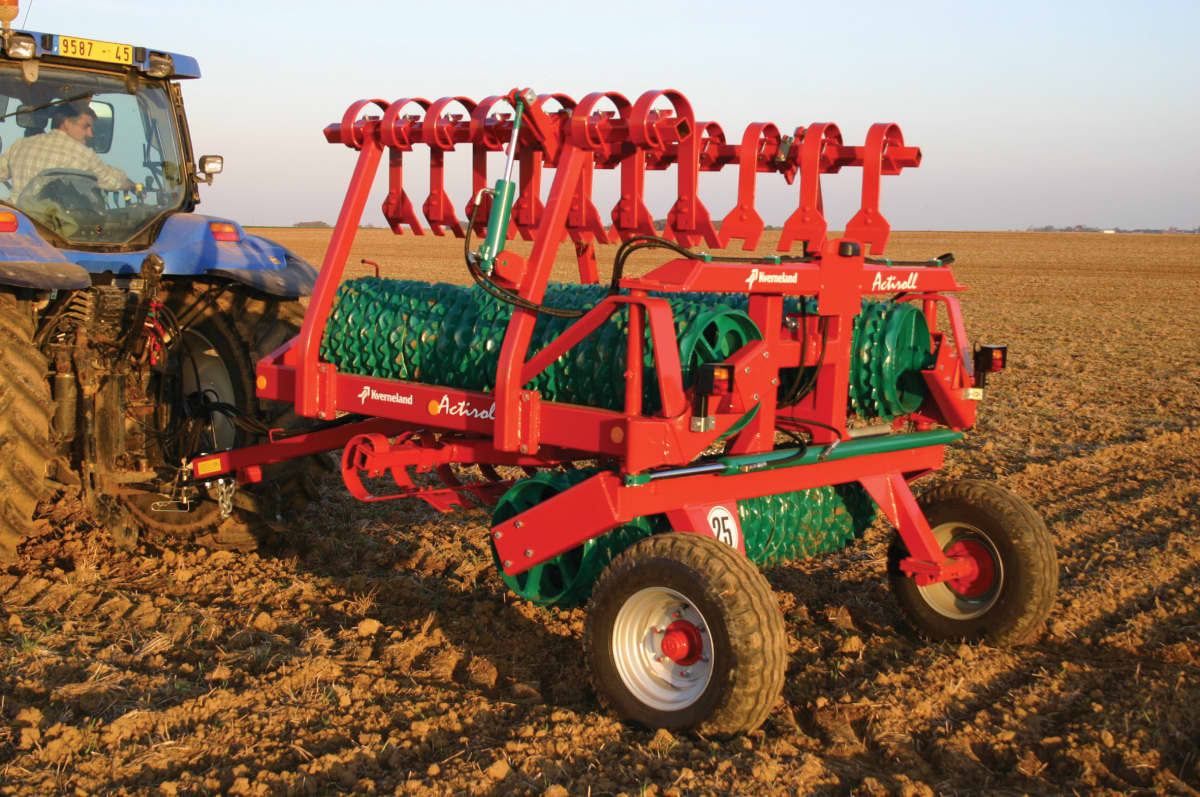

- With the Clod Board, the Actiroll is an active soil preparation tool, able to combine levelling and cracking in one pass, due to the high vibrations of the cracker tines.
- The position of the Clod Board can be hydraulically adjusted from the cab. For rolling winter crops or grass fields, the Clod Board can be easily set into off position.

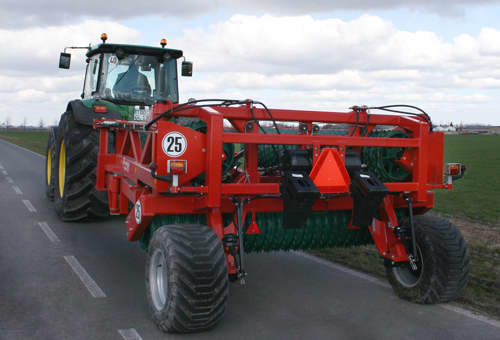

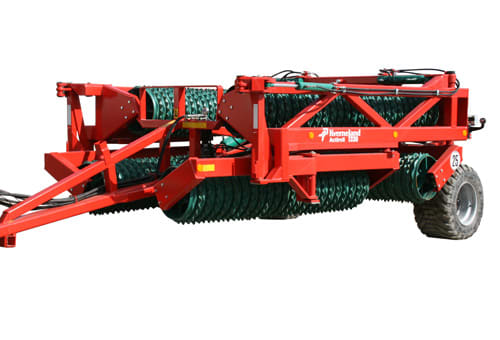

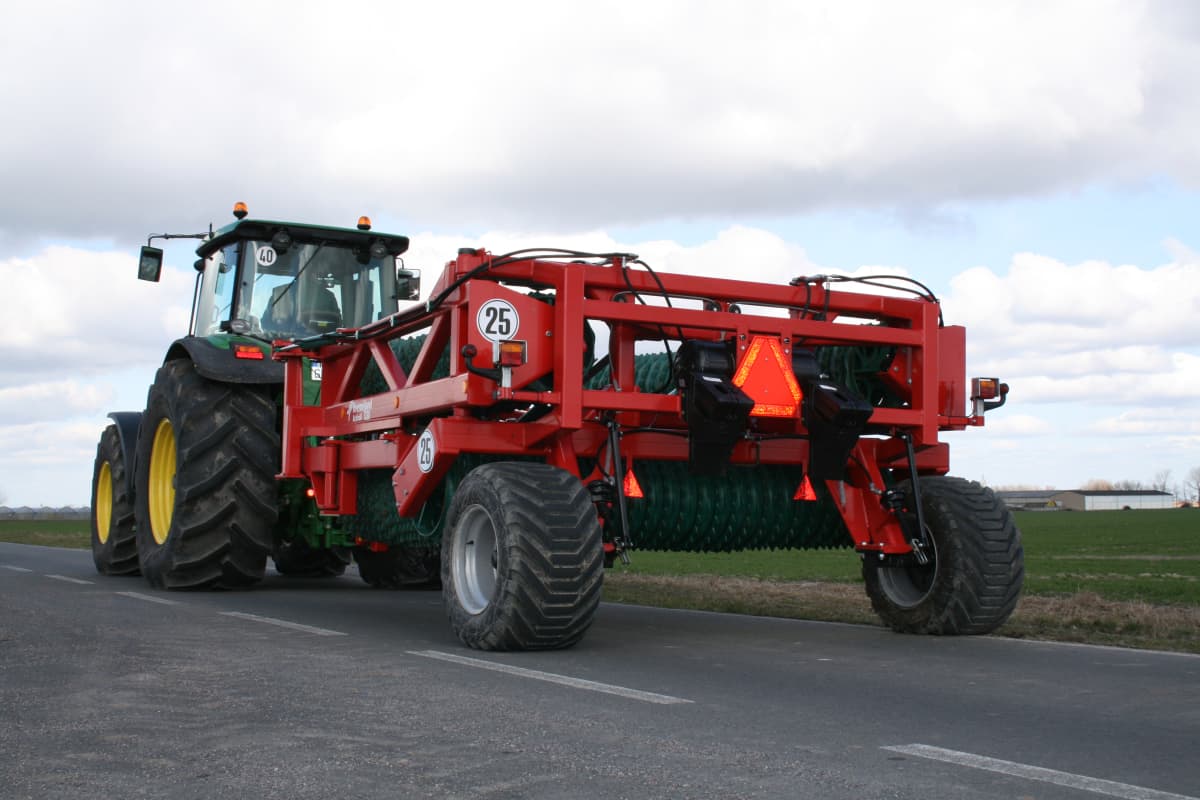

- The wing sections are mechanically locked. They also lock the cylinder of the transport carriage for utmost security. Moreover the Actiroll HD and HDC run very smoothly due to their low centre of gravity.

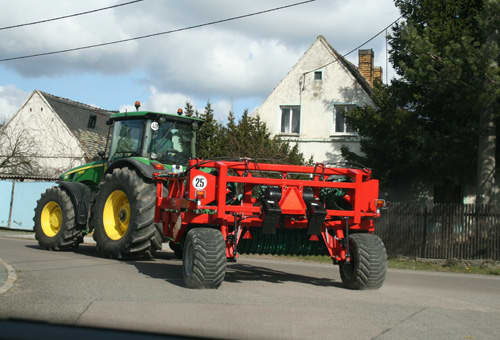

- Transport width in between 2.50m and 3 m depending on the diameter of the rings
- Compact machine and good maneuverability
Teknisk specifikation
Teknisk specifikation
Download brochureModel | Actiroll | Actiroll | Actiroll | Actiroll | Actiroll | Actiroll | Actiroll Classic | |
---|---|---|---|---|---|---|---|---|
Type | 450 | 530 | 630 | 760 | 830 | 950 | Klassisk 630 | |
Arbejdsbredde (m) | 4.50 | 5.30 | 6.30 | 6.30 | 8.30 | 9.50 | 6.30 | |
Transportbredde (m) | 2.50 | 2.50 | 2.50 | 2.50 | 2.50 | 3.00 | 2.50 | |
50 cm Cambridge-vægt (kg) | 2190 | 2800 | 3200 | 4070 | 4200 | 5215 | 2995 | |
55cm Cambridge vægt (kg) | - | 3290 | 3820 | 4760 | 4930 | 6090 | 3720 | |
60cm Cambridge vægt (kg) | - | - | - | - | - | - | - | |
53cm Crosskill-vægt (kg) | - | - | 2660 | 3545 | 3650 | 4580 | 2485 | |
60cm Crosskill vægt (kg) | - | - | - | - | - | - | - | |
50 cm vægt (kg) | - | - | 3215 | 4160 | 4310 | 5340 | 3215 | |
55cm Cracker (kg) | - | - | 3840 | 4940 | 5095 | 6410 | - | |
Sammenklappelige sektioner | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
Aksel sektion | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
ClodBoard | Mulighed | Mulighed | Mulighed | Mulighed | Mulighed | Mulighed | Ekstraudstyr | |
Vægtfordelingssystem "Contoura" | Mekanisk med fjeder | Mekanisk med fjeder | Mekanisk med fjeder | Mekanisk med fjeder | Mekanisk ved hjælp af fjeder | Hydraulisk | Mekanisk ved hjælp af fjeder | |
Antal hydraulikfunktioner | 1 DA + 1 SA | 1 DA + 1 SA | 1 DA + 1 SA | 1 DA + 1 SA | 1 DA + 1 SA | 2 DA | 1 DA + 1 SA | |
Hjul | 10.0/75 x 15.3 | 10.0/75 x 15.3 | 10.0/75 x 15.3 | 11.5/80 x 15.5 | 11.5/80 x 15.5 eller 400/ 60x15.5 med 60 cm Cambridge | 400/60 x 15.5 | 10.0/75 x 15.3 | |
Tilkobling* | Trækøje ⌀ 30mm eller ekstraudstyr Trækøje ⌀ 40mm | Trækøje ⌀ 30mm eller ekstraudstyr Trækøje ⌀ 40mm eller ekstraudstyr Krydsaksel kat. 3-N | Trækøje ⌀ 30mm eller ekstraudstyr Trækøje ⌀ 40mm eller ekstraudstyr Krydsaksel kat. 3-N | Trækøje ⌀ 30mm eller ekstraudstyr Trækøje ⌀ 40mm eller ekstraudstyr Krydsaksel kat. 3-N | Trækøje ⌀ 30mm eller option Trækøje ⌀ 40mm eller option Krydsaksel kat. 3-N | Trækøje ⌀40mm eller option Krydsaksel kat. 3 | Trækøje ⌀ 30mm eller option Trækøje ⌀ 40mm | |
Min HP | 60 | 65 | 70 | 90 | 110 | 130 | 70 | |
Maks. hk | 120 | 130 | 150 | 180 | 200 | 200 | 150 |
* Koblinger, se venligst lokale bestemmelser. Trækøje Ø 40 mm forlænget trækstang med 160 mm
Actiroll 6.30m 60cm Cambridge som standard med 400/60x15.5
Teknisk specifikation
Teknisk specifikation
Download brochureModel |
Working width (m) |
Weight (kg) |
Min. HP |
Max. HP |
|
Actiroll |
6.3 / 8.3 |
2685 - 6410 |
70 - 110 |
150 - 200 |
|
Actiroll HDC |
10.3 / 12.3 |
7285 - 12750 |
160 - 190 |
300 - 375 |
|
Actiroll HD |
10.3 / 12.3 / 14.3 / 15.3 /16.3 / 18.3 / 21.3 / 24.3 |
5810 - 21690 |
160 - 270 |
270 - 550 |
* Koblinger, se venligst lokale bestemmelser. Trækøje Ø 40 mm forlænget trækstang med 160 mm
Actiroll 6.30m 60cm Cambridge som standard med 400/60x15.5
