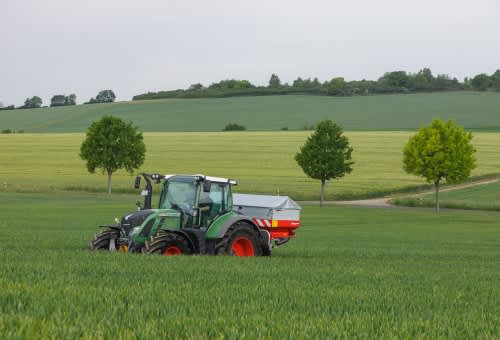

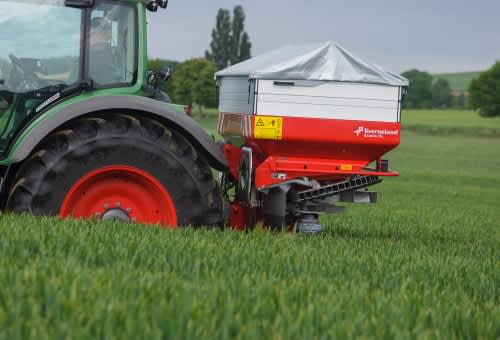

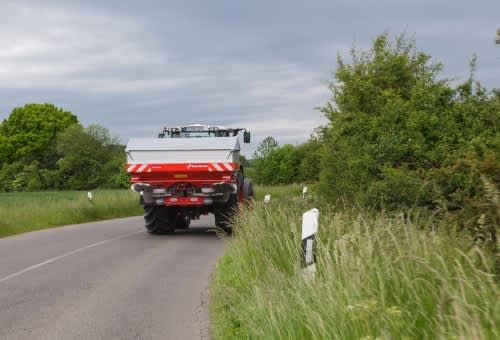

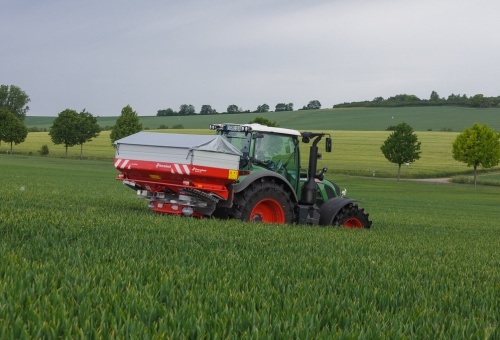

Kverneland Exacta HL
Modellen med høj kapacitet.
Exacta HL er sprederen med høj kapacitet i serien.
Beskrivelse
Kverneland Exacta HL med en volumen på op til 3.900 liter og med en maksimal spredningsbredde på 54 meter er den perfekte spreder til større kapacitet. Med dobbelte PTO-indgangsaksler på den centrale gearkasse er det nemmere altid at køre med den ønskede hastighed, og i kombination med det "langsomt roterende" omrørersystem kan Kverneland Exacta HL-sprederen sprede med høje skivehastigheder for at få et meget jævnt spredemønster. Kverneland Exacta HL-spredemaskinen kan betjenes hydraulisk eller elektrisk. Den elektrisk styrede spreder kan betjenes fra traktorkabinen via Exacta Remote II-computeren.
Funktioner
- No impact, no fragmentation, no dust: Central release point, smooth acceleration and centrifugal force accelerates fertiliser up to disc speed before it reaches the vane.
- Accurate spreading pattern: A double overlap spreading pattern gives unrivalled accuracy. The 8 vanes per discs are ensuring a continous flow of fertiliser to the field. This is important for high capacity spreading and forward speed.
- Minimal wind influence, maximum tolerance: Flat discs and a horizontal flow of fertiliser give a symmetrical spreading pattern.
- Consistent spreading pattern: Eight vanes per disc, eight sectors per revolution give an equal distribution. Double overlap spreading pattern.
- Guaranteed accuracy on slopes: guaranteed accuracy on slopes. The fertiliser always contacts the vanes at the same point, also on slopes and travels the complete length of the vane.
- The Exacta EL is hydraulically controlled.
- The working width is determined by the vane length. The 4 vanes can be detached easily, also for static calibration test.
- Application rate adjustment from the calibration position is easily accessible.
- The key to accurate spreading is matching fertiliser quality and litre weight with the spreading charts as close as possible. The Kverneland Exacta checklist helps you to ensure consistent accuracy in all field conditions
1. Select fertiliser type
2. Determine granule size and distribution
3. Determine litre weight

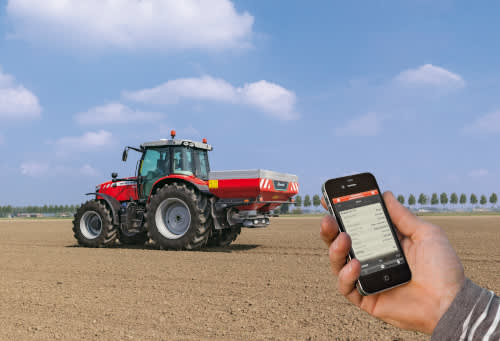

- Direct access to the most recent test results at: www.kvernelandspreadingcharts.com or download the spreading charts application via the App Store or get it on Google Play
- Kverneland offers the border spreading plate or tramline cylinder for border spreading with the Exacta EL.
- With one-side boundary spreading the tractor is driven approximately 2 metres from the field border.
- With boundary track spreading the tractor is driving in the first tramline and is spreading to the border. The distance to the border is the half of the working width.
- The Exacta HL/TL(X) spreaders are also available mounted on a trailer frame.
- Central Hydraulic Drive as option available for the HL/TL(GEOSPREAD).
- Easy to assemble aluminium hopper extensions are available to increase hopper capacity.
- An easy to fold in and out hopper cover is as option available. Simple to fit! This can be the manual hopper cover or with the electrical version controlled via the tractor cab.
- Left/right shut off valve for spreading at half working widths is optional available.
- To ensure a consistent flow when spreading low quantities, the CentreFlow system is equipped with a fine application kit. Ideal for spreading low quantities, seeds and slug pellets.
- Delta shaped heavy duty grids are standard equipment of the Exacta HL/TL(X) spreader.
- Centre gear box with 2 input shafts for high and low disc speed settings is standard equipment of the HL/TL(X) spreader.
- Hopper emptying kit is optional available to easy get the last fertiliser out of your hopper.
- Easy calibration is done with the optional calibration container.
- Long lifetime LED lighting set, is optional for the EL, CL and CL-EW. For the HL, TL and TL(X) GEOSPREAD spreader is this standard equipment.

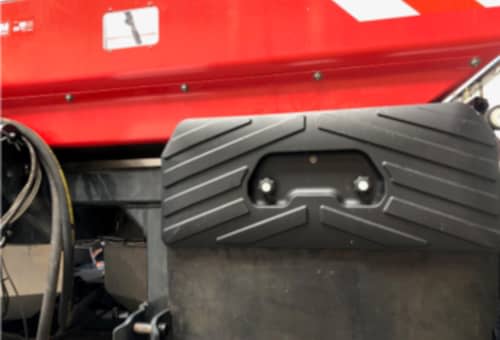

- The mud guards (option) protect the spreading disc against mud, water etc.
- With Exacta Remote II, you can operate the spreader from the closed tractor cab!
- The operating panel provides all the functions to start and stop the spreader, to set the right application rate and to increase and decrease the application rate on the move. The latest settings are retained in the memory function.
- Both discs can be shut off independently to spread half working width.
- Specially sealed actuators are used to cope with corrosive conditions.
- No impact, no fragmentation, no dust: Central release point, smooth acceleration and centrifugal force accelerates fertiliser up to disc speed before it reaches the vane.
- Accurate spreading pattern: A double overlap spreading pattern gives unrivalled accuracy. The 8 vanes per discs are ensuring a continous flow of fertiliser to the field. This is important for high capacity spreading and forward speed.
- Minimal wind influence, maximum tolerance: Flat discs and a horizontal flow of fertiliser give a symmetrical spreading pattern.
- Consistent spreading pattern: Eight vanes per disc, eight sectors per revolution give an equal distribution. Double overlap spreading pattern.
- Guaranteed accuracy on slopes: guaranteed accuracy on slopes. The fertiliser always contacts the vanes at the same point, also on slopes and travels the complete length of the vane.
- The compact EasySet 'dashboard' gives you considerably simplified accurate setting and adjustment of applicaton rates. Two hydraulically operated metering plates, each with three discharge openings ensure an equal fertiliser flow from the hopper to the spreading discs.
- The development department of Kvernelands spreader R&D team has its own spreader competence centre in order to allow continuous testing throughout the year. All test are carried out according to the strictest international standards and quality requirements.
- The key to accurate spreading is matching fertiliser quality and litre weight with the spreading charts as close as possible. The Kverneland Exacta checklist helps you to ensure consistent accuracy in all field conditions
1. Select fertiliser type
2. Determine granule size and distribution
3. Determine litre weight
- Direct access to the most recent test results at: www.kvernelandspreadingcharts.com or download the spreading charts Application via the App Store or get it on Google Play
- Kverneland offers the ExactLine system or manual/hydraulic border spreading plate for border spreading. The ExactLine can be accurately set for all types of fertiliser and for all working widths. Operation is easy, no need to leave the tractor seat. For the HL, TL and TLX models the ExactLine can even be fitted on the left and right hand side of the spreader.
- With one-side boundary spreading the tractor is driven approximately 2 metres from the field border.
- With boundary track spreading the tractor is driving in the first tramline and is spreading to the border. The distance to the border is the half of the working width.
- The Border Spreading Indicator (BSI), indicates which border spreading device is active.
- The Exacta HL/TL(X) spreaders are also available mounted on a trailer frame.
- Central Hydraulic Drive as option available for the HL/TL(GEOSPREAD).
- Easy to assemble aluminium hopper extensions are available to increase hopper capacity.
- An easy to fold in and out hopper cover is as option availble. Simple to fit!
- Left/right shut off valve for spreading at half working widths is optional available.
- To ensure a consistent flow when spreading low quantities, the CentreFlow system is equipped with a fine application kit. Ideal for spreading low quantities, seeds and slug pellets.
- Delta shaped heavy duty grids are standard equipment of the Exacta HL/TL(X) spreader.
- Centre gear box with 2 input shafts for high and low disc speed settings is standard equipment of the HL/TL(X) spreader.
- Hopper emptying kit is optional available to easy get the last fertiliser out of your hopper.
- Easy calibration is done with the optional calibration container.
- Long life time LED lighting set, is optional for the EL, CL and CL-EW. For the HL, TL and TL(X) GEOSPREAD spreader is this standard equipment.
- The mud guards (option) protect the spreading disc against mud, water etc.
- With Exacta Remote II, you can operate the spreader from the closed tractor cab!
- The operating panel provides all the functions to start and stop the spreader, to set the right application rate and to increase and decrease the application rate on the move. The latest settings are retained in the memory function.
- Both discs can be shut off independently to spread half working width.
- Specially sealed actuators are used to cope with corrosive conditions.
Teknisk specifikation
Teknisk specifikation
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Exacta HL (1500l) | Exacta HL (1875l) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Hopper capacity (l) | 1500 | 2150 | 2800 | 3450 | 1875 | 2550 | 3225 | 3900 | |
| Filling height (cm) | 110 | 129 | 148 | 167 | 119 | 138 | 157 | 176 | |
| Width (cm) | 275 | 275 | 275 | 275 | 290 | 290 | 290 | 290 | |
| Filling width (cm) | 269 | 269 | 269 | 269 | 284 | 284 | 284 | 284 | |
| Empty weight (kg) | 500 | 530 | 560 | 590 | 515 | 545 | 575 | 605 | |
| Spread width (m) | 12-54* | 12-54* | 12-54* | 12-54* | 12-54* | 12-54* | 12-54* | 12-54* | |
| Output (kg/min) | 10-320 | 10-320 | 10-320 | 10-320 | 10-320 | 10-320 | 10-320 | 10-320 | |
| Controls | Hydraulic/Electric | Hydraulic/Electric | Hydraulic/Electric | Hydraulic/Electric | Hydraulic/Electric | Hydraulic/Electric | Hydraulic/Electric | Hydraulic/Electric | |
| LED lighting set | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | |
| Border spreading plate | Option | Option | Option | Option | Option | Option | Option | Option | |
| ExactLine border spreading system | Option | Option | Option | Option | Option | Option | Option | Option |
