e-drill maxi plus

Flexibility is key!

The coulterbar can be easily coupled and uncoupled with a coupling hook similar to the front loader coupling. Track markers are attached to the power harrow. Therefore, the power harrow is ready for solo operation within short time. The coulterbar is attached with the Euro-Connection directly to the roller frame and can quickly and easily be hitched thanks to the readily accessible hydraulic and electronic interface.

The e-drill is exclusively designed to be combined with Kverneland power harrows.

• The metering device ELDOS accurately measures the required volume of seed by the distinctive rotor and discharges it into the seed injector where is is mixed with the air stream and then conveyed through the diffusor tube and the seed delivery hoses to the coulters.
• The distribution head is mounted in a protected position inside the seed hopper.

For the electronic control of the e-drill, a whole range of steering systems is available

Focus 3
Focus 3 is the new terminal steering the e-bas system which features hopper low level sensor, various tramline systems, information about ha, km/h monitoring of fan speed, pre-emergence marker, seed rate adjustments. Focus 3 is not ISOBUS compatible.

IsoMatch Tellus Go+
The multifunctional one-screen terminal has been developed for fast and simple control of all ISOBUS implements, giving the farmer a ‘customer made’ experience as it suits all needs for plain and efficient handling of farming machinery and tasks. IsoMatch Tellus Go+ is the farmer’s first step into Precision Farming. With the easy to use application, IsoMatch GEOCONTROL, it is possible to boost efficiency and save time and costs. The application includes Manual Guidance, Section Control and Variable Rate.

IsoMatch Tellus PRO

IsoMatch Tellus PRO is the centre for connecting all ISOBUS machines and a platform for running precision farming applications. It offers everything a farmer needs to get the maximum out of his machines and crops, as well as cost savings in fertiliser, chemicals and seeds by using automatic section control and variable rate control. With the unique dual screen functionality it gives the farmer the opportunity to view and control two machines and processes simultaneously.

With this new terminal you can work all the way as a PRO. The maximum working range for the task controller IsoMatch GEOCONTROL is increased from 2 km to maximum 10 km from the starting point. Thus even extremely big fields are handled in a full professional way. The new high brightness screen increases operator comfort. Visibility is increased during the day and dimmed to just a glowing display in dark conditions.

Adjustable hopper capacity offers extra flexibility

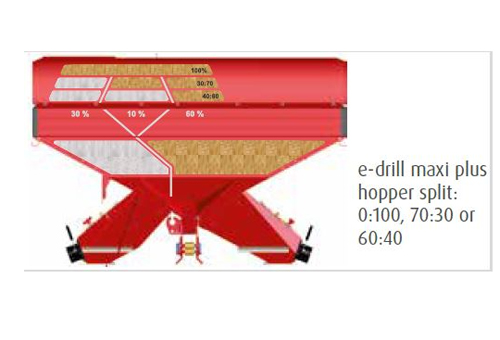

The e-drill maxi plus is offered with a hopper capacity of max. 2,100 litres which is divided into an adjustable hopper ratio of 60:40, 70:30 or 100:0 with two independently working metering devices positioned either side.  Two electronic low-level sensors, adjustable from outside, monitor small quantities of rape as well as larger quantities of beans. The full hopper volume can be used when sowing one sort of seed only.

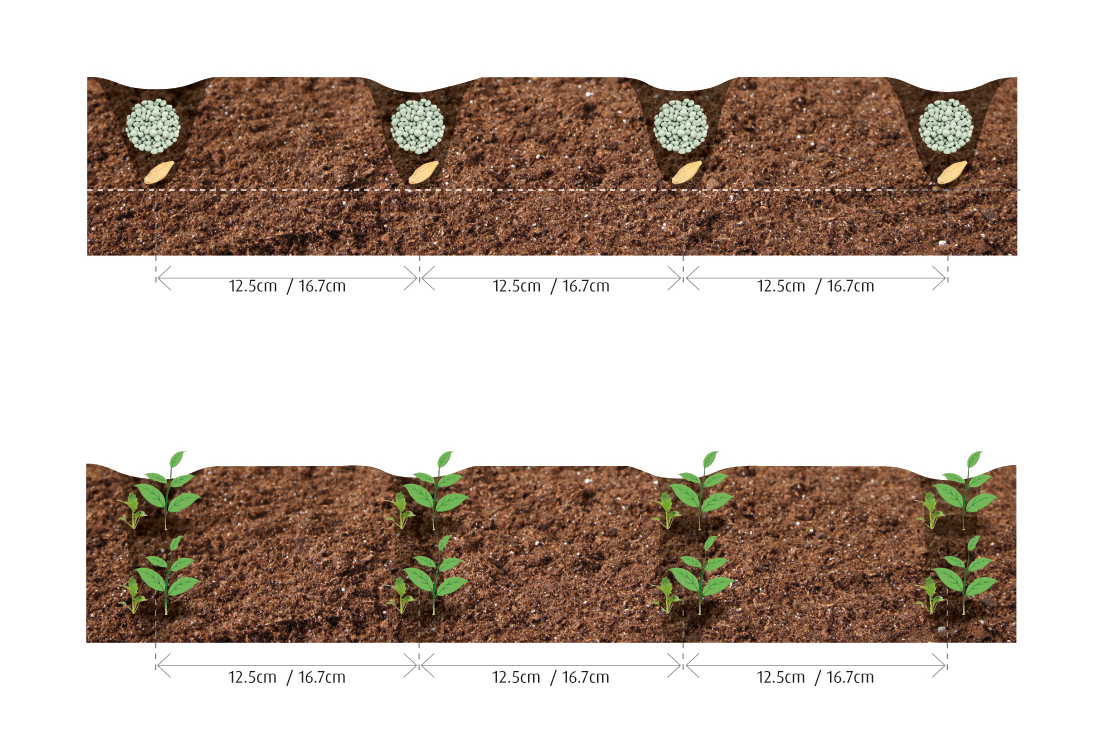

The e-drill maxi plus with double entry CX-II coulters and divided hopper places the fertiliser within the seeding row. The fertiliser or a second different crop is placed together with the seeds in just one working pass.

This is especially suitable e.g. for phosphoric fertiliser to support the initial germination and development of the plants in the most efficient way.

By an extra outlet of the CX-II coulter double entry, various combinations are possible:

• two types of seeds,
• one type of seed and one type of fertiliser or
• one type of seed combined with e.g. slug pellets
• one type of seed.

• The metering device ELDOS accurately measures the required volume of seed by the distinctive rotor and discharges it into the seed injector where is is mixed with the air stream and then conveyed through the diffusor tube and the seed delivery hoses to the coulters.
• The distribution head is mounted in a protected position inside the seed hopper.

• ELDOS is electric driven by e-bas and e-com, the e-com edition is fully ISOBUS compatible, e-bas works as stand alone controlled system.
• GEOCONTROL by GPS signal is possible which avoids double seeding.
• Special sensors ensure functionality from the tractor cab.
• Five standard rotors are delivered: for fine and large seeds or fertiliser.
• The exchange of the rotors is quickly and easily done without any tools.
• Application rates from 1 to 400kg/ha are possible (depending on working speed and width).
• The metering device is always easily accessible.

Calibration

• Very simple calibration test due to the separate seed guidance.
• A remote control allows the driver to operate the calibration process at the metering device.
• No gear has to be adjusted. The driver simply enters the desired values into the terminal, presses one button to start at the metering device and that’s it.
• The calibration is done automatically.
• A calibration flap with an integrated gate prevents any seed from dropping into the hose.

Adjustable hopper capacity offers extra flexibility

The e-drill maxi plus is offered with a hopper capacity of max. 2,100 litres which is divided into an adjustable hopper ratio of 60:40, 70:30 or 100:0 with two independently working metering devices positioned either side.  Two electronic low-level sensors, adjustable from outside, monitor small quantities of rape as well as larger quantities of beans. The full hopper volume can be used when sowing one sort of seed only.

The e-drill maxi plus with double entry CX-II coulters and divided hopper places the fertiliser within the seeding row. The fertiliser or a second different crop is placed together with the seeds in just one working pass.

This is especially suitable e.g. for phosphoric fertiliser to support the initial germination and development of the plants in the most efficient way.

By an extra outlet of the CX-II coulter double entry, various combinations are possible:

• two types of seeds,
• one type of seed and one type of fertiliser or
• one type of seed combined with e.g. slug pellets
• one type of seed.

Flexibility is key!

The coulterbar can be easily coupled and uncoupled with a coupling hook similar to the front loader coupling. Track markers are attached to the power harrow. Therefore, the power harrow is ready for solo operation within short time. The coulterbar is attached with the Euro-Connection directly to the roller frame and can quickly and easily be hitched thanks to the readily accessible hydraulic and electronic interface.

The e-drill is exclusively designed to be combined with Kverneland power harrows.

For the electronic control of the e-drill, a whole range of steering systems is available

Focus 3
Focus 3 is the new terminal steering the e-bas system which features hopper low level sensor, various tramline systems, information about ha, km/h monitoring of fan speed, pre-emergence marker, seed rate adjustments. Focus 3 is not ISOBUS compatible.

IsoMatch Tellus Go+
The multifunctional one-screen terminal has been developed for fast and simple control of all ISOBUS implements, giving the farmer a ‘customer made’ experience as it suits all needs for plain and efficient handling of farming machinery and tasks. IsoMatch Tellus Go+ is the farmer’s first step into Precision Farming. With the easy to use application, IsoMatch GEOCONTROL, it is possible to boost efficiency and save time and costs. The application includes Manual Guidance, Section Control and Variable Rate.

IsoMatch Tellus PRO

IsoMatch Tellus PRO is the centre for connecting all ISOBUS machines and a platform for running precision farming applications. It offers everything a farmer needs to get the maximum out of his machines and crops, as well as cost savings in fertiliser, chemicals and seeds by using automatic section control and variable rate control. With the unique dual screen functionality it gives the farmer the opportunity to view and control two machines and processes simultaneously.

With this new terminal you can work all the way as a PRO. The maximum working range for the task controller IsoMatch GEOCONTROL is increased from 2 km to maximum 10 km from the starting point. Thus even extremely big fields are handled in a full professional way. The new high brightness screen increases operator comfort. Visibility is increased during the day and dimmed to just a glowing display in dark conditions.

For at udvide anvendelsesområdet har Kverneland integreret den velkendte Kverneland a-drill. Denne ekstra såmaskine med separat beholder og doseringsanordning gør det muligt at udbringe en ekstra slags frø/gødning.
Bæredygtig og effektiv
Der er gode grunde til at fremme etableringen af yderligere afgrøder eller til at tilføre ekstra næringsstoffer under såning. En ekstra afgrøde vil undertrykke ukrudtsvækst, men ikke konkurrere med den førende afgrøde. Den ekstra afgrøde opfanger mineralsk kvælstof i jorden samt luftkvælstof, når det blandes med bælgplanter, og omdanner det til organisk kvælstof. Dermed vil kvælstof stadig være tilgængeligt for de næste afgrøder. Gødning anvendes mest præcist for at støtte plantevæksten, især i ungdomsårene, så man undgår, at gødningen udvaskes til grundvandet.

Bredt anvendelsesområde
Anvendelsesområdet og de mulige variationer for denne integrerede såmaskine er mangfoldige:
Ved at integrere a-såmaskinen kommer en ekstra ekstra såmaskine i spil og giver mange forskellige kombinationsmuligheder: To slags materiale udbringes præcist af e-drill maxi plus's dobbeltsåmaskine CX-II (2 fordelingshoveder), mens den tredje slags materiale udbringes via den integrerede a-drill's skilleplade i jordstrømmen af den efterfølgende harve via den integrerede a-drill:

1. 3 slags materiale i én arbejdsgang: 1 slags frø (f.eks. hvede/byg) plus gødning i sårækkerne plus sneglegødning via den efterfølgende harve
2. 3 slags materiale i én arbejdsgang: 1 slags frø (f.eks. hvede/byg) plus gødning i sårækken plus 1 slags frø (f.eks. kløver) via den efterfølgende harve
3. 3 slags materiale i én arbejdsgang: 2 slags frø i forskellige sårækker (f.eks. bønner og raps) plus sneglegødning via den efterfølgende harve
4. 3 slags materiale i én arbejdsgang: 2 slags frø i sårækken (f.eks. bønner og rug) plus 1 slags frø (f.eks. kløver) via den efterfølgende harve

Fordele

1. Størst mulig effektivitet og omkostningsbesparelse ved kombineret udbringning af forskellige slags frø og/eller gødning i én arbejdsgang
2. Fremmer rodudviklingen
3. Reduceret risiko for erosion
4. Øget biodiversitet og humusindhold
5. Øget bæredygtighed

Når der besluttes, hvilket udstyr der skal købes, er det ikke altid let at finde den optimale løsning på det brede marked, som der tilbydes i dag. Teknologien udvikler sig hurtigt, da vores traktorer og redskaber er mere og mere udstyret med højteknologisk elektronik. Vi forstår denne kompleksitet og er forpligtet til at give dig nemme landbrugsløsninger. derfor er disse omkostningseffektive ISOBUS Universal Terminals, IsoMatch Tellus PRO og IsoMatch Tellus GO+ lavet til dem der ønsker en nem og effektiv maskinstyring.
