Kverneland Roc 1038 S
Fremragende ydeevne i udfordrende miljøer
Front- og bagmonteret enkelt pick up rive med 3,8 m arbejdsbredde
Højdepunkter
- Enestående udførelse til ensilage- og kortafgrødemarkeder
- Seks bar pick-up og brede striber giver den bedste ydeevne i alle typer afgrøder
- Topstangen kan udstyres med en valgfri hydraulisk affjedring
- Brede affjedrede tandemhjul og slæbesko for at beskytte pickuppen
- Elektrisk justerbar arbejdshøjde
Beskrivelse

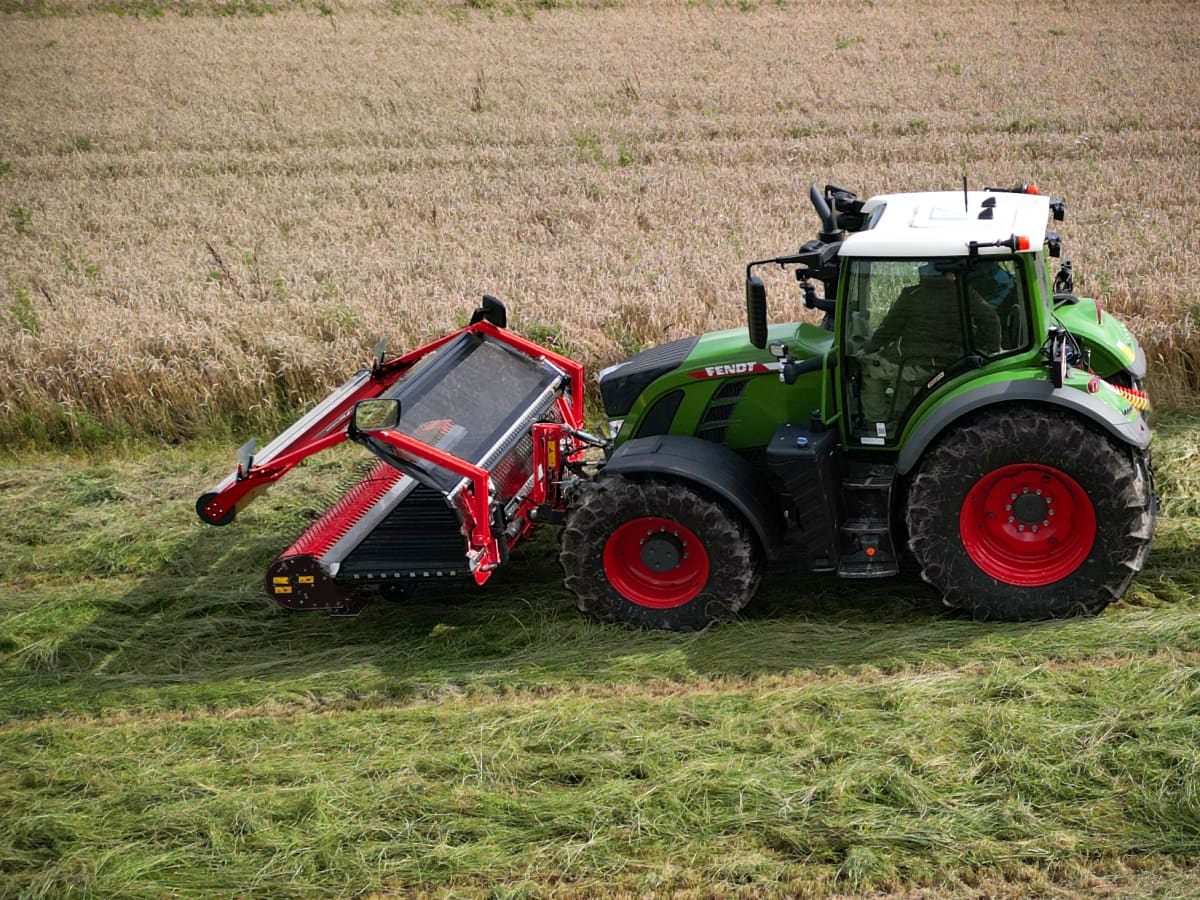

Kverneland Roc 1038 S er en letvægtsmaskine, der er designet til kuperede områder og udfordrende terræn. Den kan monteres foran eller bag på en traktor og gør det muligt at rive uden at køre på afgrøden. Den tilbyder komfortabel kørsel med en transportbredde på mindre end 3 m og standardspejle. Kverneland Pick up rive har et unikt pickup- og bånddesign, der muliggør effektiv opsamling af afgrøder og et ensartet flow. Den kan også vende eksisterende skår uden tovværk under transport af afgrøder til flere opsamlinger. Traktorens hydrauliske olieflow gør det muligt for bæltet at rotere til venstre eller højre, og dens standard mekanisk ophængte tandemhjul sikrer god jordfølgning. Forageren låses automatisk, når den løftes, så den nemt kan tilpasses jorden.
Højdepunkter
- Vendbar 3-punktsophængt fusion med 3,8 m arbejdsbredde velegnet til tørre og lange afgrøder
- Designet til at blive monteret foran eller bagpå en traktor og en valse nær tænderne for at sikre et jævnt materialeflow, selv i korte afgrøder.
- Unikt opsamlingssystem med 6 stænger og bæltedesign for at sikre ren sammenlægning.
- Standard hydrauliksystem og spejle sikrer fuld kontrol over maskinen.
- Ophængte tandemhjul.
- Elektrisk højdejusteringssystem.
- Nem vedligeholdelse, kvalitet og udskiftning af komponenter.
Funktioner
- A single belt system
- Fibreglass-reinforced saw blade-shaped crossbars provide optimal transportation for dry and wet crops
- An actively-driven belt, equipped with a sprocket and gear belt, ensures continuous operation even in heavy crop conditions
- Most maintenance and repairs can be done without removing the belt, and all parts can be disassembled with a single wrench
- The speed of the belt and pick-up can be precisely adjusted
- The tension of the belt is evenly distributed between the left and right sides since it is adjusted centrally
- Controlled pick-up with two cams and six tine bars
- Transport even the shortest crops easily with hydraulic adjustable and suspended roller
- Heavy-duty plastic strippers are designed to maintain their shape even when they encounter rocks.
- The design of strippers is specifically made to prevent crop displacement caused by the tine
- Replacing tines with only two bolts to remove (one per tine and one per plastic stripper) using only one hand
- It is possible to repair bearings, cam track and tine bars without disassembling the pick-up
- Electric height adjustment
- Perfect solution for raking in front of the wheels (rear mounting is possible as well, for driving in reverse)
- Easy to enter corners and small fields
- Ideal combination with small squares or round balers
- Ideal for turning existing swaths like straw after the combine
- Our mergers are designed and built to be maintenance-friendly
- All components can be easily disassembled
- Wear parts are in small size and replaceable with limited efforts
- Large roller to operate in all crops
- The roller is in all positions hydraulic suspended
- Specially designed belt and pickup
- If the crops are dry, the roller can be lifted from the cabin to protect the leaves
- To ensure a high speed and a clean crop in all conditions, four suspensions are used
- The pickup's standard tandem wheels protect the ground from damage
- The tandem wheel comes equipped with a spring suspension system
- Large roller to operate in all crops
- The roller is in all positions hydraulic suspended
- Specially designed belt and pickup
- If the crops are dry, the roller can be lifted from the cabin to protect the leaves
- A single belt system
- Fibreglass-reinforced saw blade-shaped crossbars provide optimal transportation for dry and wet crops
- An actively-driven belt, equipped with a sprocket and gear belt, ensures continuous operation even in heavy crop conditions
- Most maintenance and repairs can be done without removing the belt, and all parts can be disassembled with a single wrench
- The speed of the belt and pick-up can be precisely adjusted
- The tension of the belt is evenly distributed between the left and right sides since it is adjusted centrally
- Controlled pick-up with two cams and six tine bars
- Transport even the shortest crops easily with hydraulic adjustable and suspended roller
- Heavy-duty plastic strippers are designed to maintain their shape even when they encounter rocks.
- The design of strippers is specifically made to prevent crop displacement caused by the tine
- Replacing tines with only two bolts to remove (one per tine and one per plastic stripper) using only one hand
- It is possible to repair bearings, cam track and tine bars without disassembling the pick-up
- Electric height adjustment
- Our mergers are designed and built to be maintenance-friendly
- All components can be easily disassembled
- Wear parts are in small size and replaceable with limited efforts
- To ensure a high speed and a clean crop in all conditions, four suspensions are used
- The pickup's standard tandem wheels protect the ground from damage
- The tandem wheel comes equipped with a spring suspension system
- Perfect solution for raking in front of the wheels (rear mounting is possible as well, for driving in reverse)
- Easy to enter corners and small fields
- Ideal combination with small squares or round balers
- Ideal for turning existing swaths like straw after the combine
Teknisk specifikation
Teknisk specifikation
Download brochureWorking width (m) |
Pick-up width (m) |
Transport width (m) |
Power requirement (hp) |
Weight (kg) |
|
Kverneland Roc 1038 S |
3.8 |
2.95 |
3 |
60 |
980 |
