Kverneland 2800F
Når du leder efter sofistikeret ydeevne
Frontmonterede almindelige skiveklippere
Højdepunkter
NonStop BreakBack-løsning Meget fleksibelt hovedstykke Drivlinje med to hastigheder 750/1000 omdrejninger pr. minut Fremragende tilpasning til jordenBeskrivelse
Kverneland 2800 F frontmonterede skiveslåmaskiner, med 2,18 - 3,16 m arbejdsbredde, er kendetegnet ved enestående evne til at følge jorden, nem betjening og lav vægt, hvilket fører til fremragende klippeydelse og evne til at følge jorden i alt terræn. Ved standardindstillinger har knivbjælken et bemærkelsesværdigt tilpasningsområde på 430 mm opad og 210 mm nedad, kombineret med et tværgående drejeområde på 17°. Designet kræver ikke en fleksibel frontlift, da bevægelsen er indbygget i maskinen.
Funktioner

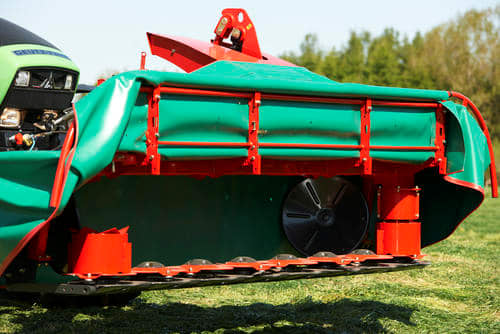

- Kverneland uses round discs. Round discs are less susceptible to stone impact, and reduce shock loads in the transmission.
- Stones are expelled immediately, before they have any chance of becoming jammed. The benefits are lower repair and maintenance costs - at the same time as a clean and aggressive cut.
- The cutterbar has a high oil capacity, ensuring a very low working temperature. This ensures an efficient oil cooling and lubrication of the entire cutterbar.
- The long curved gear wheels running in oil provides a very quiet and reliable power transmission.
- The fully welded cutterbar gives a very stiff and strong design for high durability.
- With the ProFit quick knife change system, maintenance of the cutting ability is easy. The knives are changed by one simple operation using the special lever.
- Standard PTO speed is 1000 rpm. However by simply switching driveline pulleys, 750 rpm for reduced fuel consumption can be achieved.
- This makes it possible to maintain the correct PTO speed, but using reduced engine revs, creating an opportunity for lower fuel consumption – an innovative solution to the problem of front PTO systems not offering an Economy speed.
- The 2832 FS, 2828 F and 2832 F are characterized by excellent cutting performance and ground following ability in all terrain. The design does not require a flexible front linkage, as the movement is build into the machine.

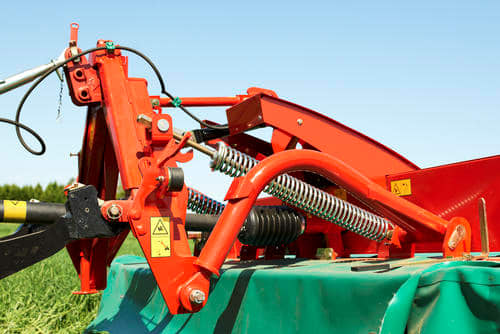

- To ensure best possible pattern of movement, the mowing unit moves independently from the front linkage.
- The mower design allows a transverse adaptation of up to 17°.
Teknisk specifikation
Teknisk specifikation
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Model | 2828 F | 2832 F | |
|---|---|---|---|
| Arbejdsbredde (m/ft) | 2.81(9'3") | 3.16(10'4") | |
| Transportbredde (m) | < 3.0 | 3.0 | |
| Kobling (KAT) | 2 | 2 | |
| PTO (rpm) | 750/1000 | 750/1000 | |
| Min. krævet effekt PTO-effekt (kW/hk) | 33 / 45 | 40 / 55 | |
| Antal diske og knive | 7/14 | 8/16 |
Unable to load the table
Teknisk specifikation
Teknisk specifikation
Download brochureArbejdsbredde |
Antal skiver |
Vægt |
Kraftbehov |
|
2828 F |
2,80 m |
7 |
670 kg |
34/50 kW/hp |
2832 F |
3,20 m |
8 |
710 kg |
40/55 kW/hp |
