Kverneland 850
Specialisten i strøelse
Monteret ballesnitter til arbejde med halm til strøelsesformål.
Højdepunkter
2.0m³ kammer Monteret version til beddingformål Kan bære op til to rundballer på én gang Drejelig rutsjebane til nøjagtig bedding Drejelig skinne til nøjagtig beddingBeskrivelse

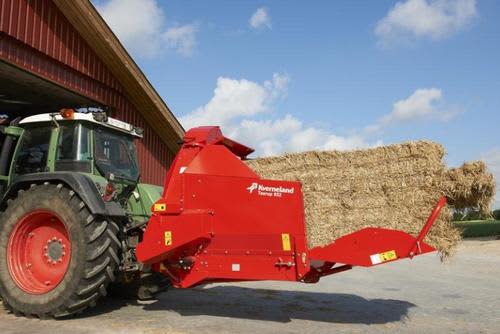

Kverneland 852 liftophængt ballesnitter er specielt designet til at arbejde med halm til strøelsesformål. Kammeret på 2 m3 giver hurtig og nem læsning af baller, og bagdøren giver mulighed for at bære en ekstra balle for at forbedre effektiviteten. Hjertet i 852 er kombinationen af tromle, kam og svinghjul - alt sammen specielt designet til at oprive halmballer i alle formater. Kverneland 852 er som standard udstyret med en drejelig sliske til præcis direkte strøning. Til multifunktionel strøelse og fodring fås et ensilagesæt med forlænget kam.
Funktioner
- The working heart of the 852 is the combination of drum, comb & flywheel – all specifically designed to shred straw bales in all formats.

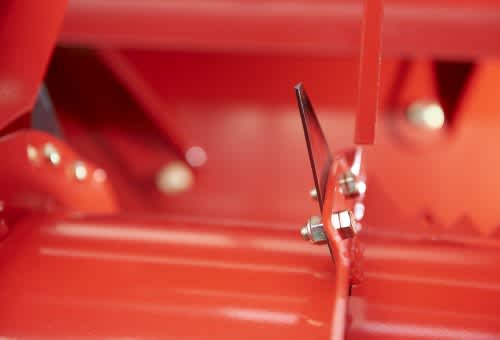

- The drum is fitted with spirals of blades and small ‘gripper’ teeth, which take the straw from the bale and feed it evenly into the flywheel chamber.

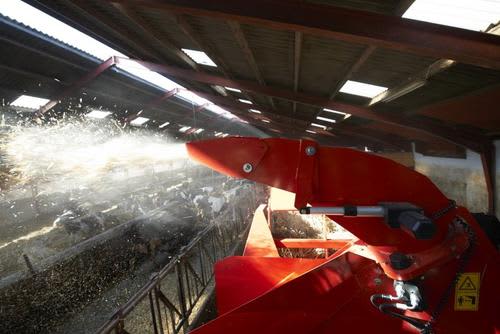

- The flywheel can discharge the straw via the 280° swivelling chute at distances up to 15 metres - even feed of the straw onto the flywheel reduces blockage risk and maintains tractor power needed at a minimum level.

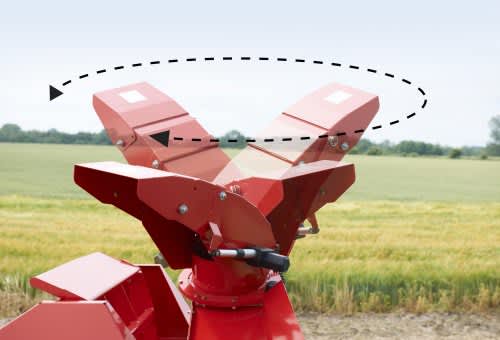

- The Kverneland 852 is fitted as standard with a new swivel chute that offers a 280° rotation of the chute.
- It allows the operator to accurately direct bedding materials into otherwise inaccessible areas of the building.
- The new chute is positioned right above the flywheel where the blow is strongest.
- This give a more efficient distribution of the material and reduces the risk of blockages.
- The end flap of the swivel chute operates via an electric actuator whilst the 280° rotation of the chute is hydraulically operated.
- The Kverneland 852 can discharge the straw at a distance of up to 15m.
- The 1.55m diameter flywheel of the Kverneland 850 series is fitted with 6 blowing paddles, providing a powerful blow for the most efficient distribution of the material and an excellent cleaning of the flywheel housing.
- The flywheel does not chop the straw, thus ensuring virtually full length material suitable for bedding of covered yard areas.

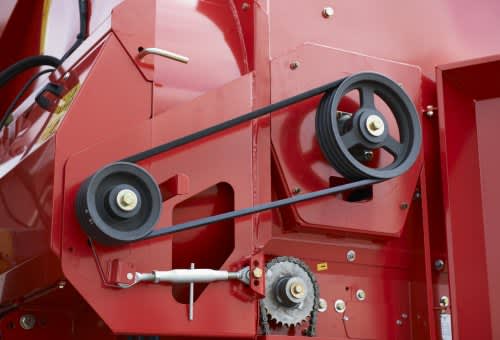

- In combination with the 2-speed gearbox (standard on models 853 and 856) the flywheel can throw straw up to 18.00m (on high speed) or gently feed hay/silage at the side of the machine (at low speed).
- With the 280° swivel chute discharge straw can be blown up to 15.00m.
- The hydraulically operated rear door fitted to 800 series provides a self loading facility for easy loading of square and round bales.
- The rear door also offers the ability to carry a second round bale for increased capacity.
- A bale kit can be fitted to the end of the tailgate to ensure that the bales stay in position during operation.

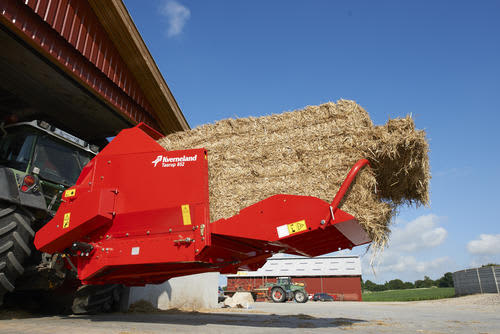

- The size of the bale chamber makes it very easy to load the material with a loader - and two round bales can be loaded at the same time - saving time.
Teknisk specifikation
Teknisk specifikation
Download brochure| Model | 852 | |
|---|---|---|
| Tud | 3-trins Sw. Chute | |
| Balle volumen (m3) | 2.00 | |
| Blæseafstand* (m) | op til 18 | |
| Transport | Liftophængt | |
| Oprivningssystem | Enkelt tromle | |
| Krævet PTO-effekt min (kW/hk) | 40/55 |
* Afhængigt af materiale og staldspecifikke forhold |
Teknisk specifikation
Teknisk specifikation
Download brochureVolumen |
Læsse kapacitet |
Kraftbehov |
|
852 |
2m³ |
800 kg |
40/55 kW/hk |
* Afhængigt af materiale og staldspecifikke forhold |
