Kverneland 9542
HydroLift-konceptriver med høj ydeevne
ProLine single rotor river med 4,20 m arbejdsbredde
Højdepunkter
- HydroLift for hurtig tilpasning til markforholdene
- Vedligeholdelsesfrit rotorhoved
- Justerbar kurveskive
- Tandemaksler giver perfekt tilpasning til jordkonturen
Beskrivelse
Kverneland 9542 ProLine single rotor med 4,20 m arbejdsbredde tilbyder et gearkassedesign med fremragende driftsresultater. Funktioner som svingningsdæmpere, tandemaksler, hydraulisk højdejustering og justerbar rotorhoved er standard kendetegn for riverne med enkelt rotor.
Funktioner
- The ProLine rakes feature a unique drive system which comprises oil-immersed pinion and crown wheels.
- The fully enclosed design ensures full and permanent lubrication, and makes the entire system absolutely maintenance-free.
- The hardened cam track is adjustable, and features a flat curve and an extremely large 400mm diameter, providing positive guidance to the steel rollers, and promoting quiet machine running.
- Aluminium bearing housings, with two integral ball bearings and wide support, provide solid and maintenance-free tine arm mounting.

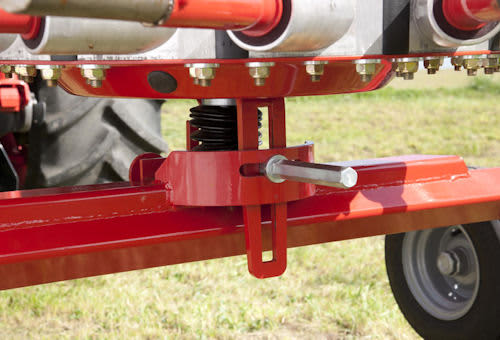

- Kverneland 9542 and 9546 are fitted with the hydraulic height adjustment system ‘HydroLift’ as standard.
- Kverneland HydroLift allows you to set the rake to different field conditions.
- From the tractor cab you can quickly set the raking height to suit the length of stubble or varying ground conditions.

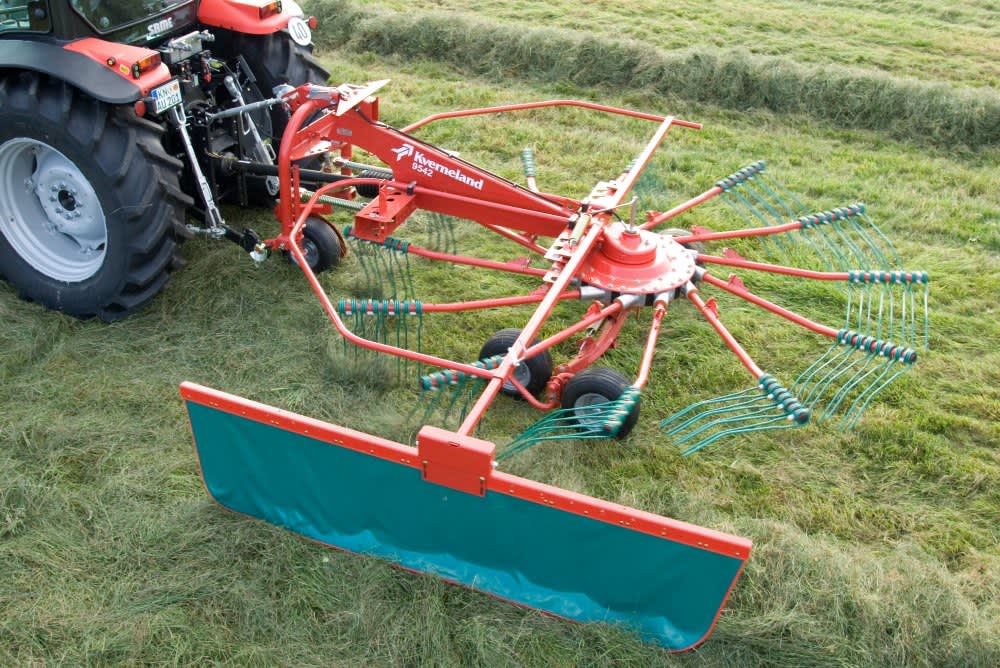

- All Kverneland CompactLine rakes feature curved tine arms for significantly cleaner raking performance and optimised swath formation.
- This design ensures that the row of tines on each tine bar has a more effective approach angle to the oncoming crop, and also gives a cleaner lift out of the tine from the formed swath.
- Kverneland rotary rakes are all fitted with “Duo Tines” that deliver optimal performance and thorough raking.
- The distance between each tine on every Duo Tine is smaller than is the case with conventional tines.
- This ensures precise and thorough performance in the field, and reduces crop wastage caused by crops not being collected into the swath.
Teknisk specifikation
Teknisk specifikation
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| 9542 | ||
|---|---|---|
| Arbejdsbredde | 4.2m | |
| Antal tandarme | 12 | |
| Vægt (kg) | 640 | |
| Rotordiameter (m) | 3.35 |
Unable to load the table
Teknisk specifikation
Teknisk specifikation
Download brochureArbejdsbredde |
Rivearme |
vægt |
|
9542 |
4,20 m |
12 |
640kg |
9546 |
4,60 m |
13 |
695kg |
