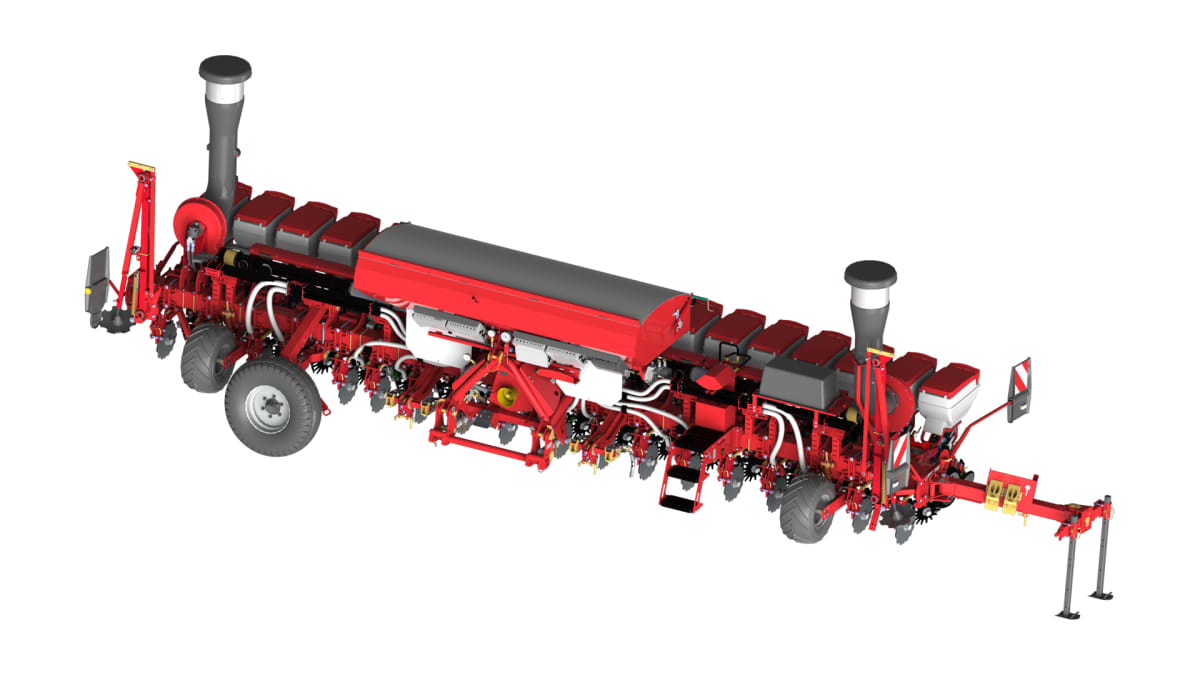

Optima RS (SX)
Kverneland Optima RS til høj præcis ydeevne
Den faste Kverneland Optima RS luftpræcisionssåmaskine med højhastighedssåenheder til stærk ydelse og høj produktion.
Højdepunkter
Optima SX høj hastighedssåmaskine - op til 18 km/t Optimal dybdekontrol Effektiv jordkontur Lille såskær til præcis placering af frø 60 liter såsædbeholderBeskrivelse
Luftpræcisionssåmaskinen Optima RS med fast ramme er designet til landmænd og entreprenører, der leder efter en solid og effektiv løsning. Optima RS-rammen fås med en arbejdsbredde fra 6,1 m til 9,3 m. Optima RS-rammen kan justeres til forskellige rækkebredder fra 45 cm til 80 cm i lige og ujævne konfigurationer og er klar til at bære op til 18 rækker.
Optima RS-rammen kan monteres med en stor 2000 l gødningstank eller alternativt kombineres med en fronttank for at opnå en god vægtfordeling. Desuden fås den med eldreven microgranulattildeling, micro-drill
Der fås en stærk transportanordning i længderetningen. Maskinen opfylder den nye EU-typegodkendelse og er klar til transport ved 40 km/t, når den er udstyret med valgfrit luftbremsesystem
Funktioner
With the pressurized seeding heart, the seeds are “shot” by an airstream of up to 70kph into the furrow. A smooth, flexible intermediate press wheel catches and protects the delicate seeds. Any negative impact such as vibration on the way between release point and soil contact are eliminated due to the high air stream.
The seeds reach their perfect position in the soil. Each sowing row is electrically powered by ISOBUS connection. An additional generator or other power sources are not required. The complete power supply and control is via ISOBUS.
e-drive/e-drive II – complete control and monitoring of the machine from the tractor cab in accordance with ISOBUS standard
- With e-drive/e-drive II, each sowing unit is driven individually via an electric motor.
- The low-maintenance drive is connected directly to the seeding heart via a toothed belt in an encapsulated dust proof housing.
- This enable an extremely compact design and smooth drive characteristics with low current consumption
- All the data is entered and read out via an ISOBUS terminal like IsoMatch Tellus PRO or Tellus GO.
- The sowing distances are infinitely adjustable and can be changed during sowing.
- All the sowing units can be switched off individually.
- In conjunction with “close row” sowing widths of 37.5cm a further benefit of the e-drive/e-drive II comes into play: Individual tramline switching. Tramlines can be set up for any spray width.
- The e-drive/e-drive II features complete electronic monitoring of all machine functions including seed monitoring via an opto sensor.
IsoMatch GEOCONTROL - Cost saving with immediate payback
Seeding with GPS and GEOCONTROL in combination with an electric driven precision drill is a major step towards precision and cost saving. These machines are all equipped with ISOBUS technology which with the help of the IsoMatch Tellus terminal, can be easily controlled.
Each electric driven seeding element, in combination with GPS and GEOCONTROL, is automatically switched on or off in exactly the right place, ensuring there is no overlap with any row that has already been seeded. This is especially handy in triangular fields, on curved or irregular shaped headlands.
GEOSEED - Precision at high end
GEOSEED is offered in two different levels:
GEOSEED Level 1 is the synchronization in the machines working width. This improves the distribution of seeds up to perfection in parallel or diamond pattern: Positive effects are the best use of nutrients, water and sun. Also the wind and water erosion is decreased.
GEOSEED Level 2 is the synchronization in the whole field. This is the necessary requirement for interrow cultivation, also across the seeding direction. GEOSEED is the only system in the world, that makes this mechanic weeds control possible!
Micro-drill for Optima HD-II and SX sowing units
The demand for microgranule applicators is increasing. Micro nutrients and also small amounts of insecticides or fungicides ensure the best start of the crop.
The electric driven micro-drills for the Optima HD-II and SX sowing units have been designed as backpack behind the sowing units and offer a hopper capacity of 17 liters.
They are electrically driven and ISOBUS controlled. The metering device consists of a wear-resistant plastic housing with exchangeable cell wheels made of stainless steel. This ensures the precise metering of the micro granules.
Operator’s safety
The engineers had focus on highest level of operator’s safety by offering easy and safe handling of the applicator. Therefore, the operator can exchange the cell wheels even when the hoppers are full of micro granule. There is no need to empty them first, reducing the operator’s risk of getting in direct contact with the granules.
A plus for the environment
The micro granules fall freely into the seed furrow without any air support, minimising the emission of dust. Therefore, the new micro-drill fully complies with the current guidelines for emission control of any granules applied.
Precision Farming
The comfortable, fully ISOBUS integrated control system allows the adaption to the stop and starting points of the seed row. This ensures precise shutting on and off at the end of the field and in tramlines (without overlaps or faults).
With the pressurized seeding heart, the seeds are “shot” by an airstream of up to 70kph into the furrow. A smooth, flexible intermediate press wheel catches and protects the delicate seeds. Any negative impact such as vibration on the way between release point and soil contact are eliminated due to the high air stream.
The seeds reach their perfect position in the soil. Each sowing row is electrically powered by ISOBUS connection. An additional generator or other power sources are not required. The complete power supply and control is via ISOBUS.
e-drive II – complete control and monitoring of the machine from the tractor cab in accordance with ISOBUS standard
- With e-drive II, each sowing unit is driven individually via an electric motor.
- The low-maintenance drive is connected directly to the seeding heart via a toothed belt in an encapsulated dust proof housing.
- This enable an extremely compact design and smooth drive characteristics with low current consumption
- All the data is entered and read out via an ISOBUS terminal like IsoMatch Tellus PRO or Tellus GO+.
- The sowing distances are infinitely adjustable and can be changed during sowing.
- All the sowing units can be switched off individually.
- In conjunction with “close row” sowing widths of 37.5cm a further benefit of the e-drive II comes into play: Individual tramline switching. Tramlines can be set up for any spray width.
- The e-drive II features complete electronic monitoring of all machine functions including seed monitoring via an opto sensor.
IsoMatch GEOCONTROL - Cost saving with immediate payback
Seeding with GPS and GEOCONTROL in combination with an electric driven precision drill is a major step towards precision and cost saving. These machines are all equipped with ISOBUS technology which with the help of the IsoMatch Tellus terminal, can be easily controlled.
Each electric driven seeding element, in combination with GPS and GEOCONTROL, is automatically switched on or off in exactly the right place, ensuring there is no overlap with any row that has already been seeded. This is especially handy in triangular fields, on curved or irregular shaped headlands.
GEOSEED - Precision at high end
GEOSEED is offered in two different levels:
GEOSEED Level 1 is the synchronization in the machines working width. This improves the distribution of seeds up to perfection in parallel or diamond pattern: Positive effects are the best use of nutrients, water and sun. Also the wind and water erosion is decreased.
GEOSEED Level 2 is the synchronization in the whole field. This is the necessary requirement for interrow cultivation, also across the seeding direction. GEOSEED is the only system in the world, that makes this mechanic weeds control possible!
Præcisionslandbrug
Lavet til smart, effektivt og nemt landbrug
IsoMatch GEOCONTROL er et avanceret software-program inden for IsoMatch Tellus og IsoMatch Tellus GO+, der hjælper dig med at styre alle ISOBUS kompatible Kverneland Group maskiner såsom sprøjter, spredere og såmaskiner! Kombineret med en GPS-modtager opfylder den fremtidens behov med hensyn til nemt, smart og effektivt landbrug!
Når der besluttes, hvilket udstyr der skal købes, er det ikke altid let at finde den optimale løsning på det brede marked, som der tilbydes i dag. Teknologien udvikler sig hurtigt, da vores traktorer og redskaber er mere og mere udstyret med højteknologisk elektronik. Vi forstår denne kompleksitet og er forpligtet til at give dig nemme landbrugsløsninger. derfor er disse omkostningseffektive ISOBUS Universal Terminals, IsoMatch Tellus PRO og IsoMatch Tellus GO+ lavet til dem der ønsker en nem og effektiv maskinstyring.
Med sine avancerede hardware og softwarefunktioner leverer IsoMatch Tellus PRO den optimale præcisionslandbrugsløsning til et alt-i-et kontrolsystem i dit traktorførerhus.
IsoMatch Tellus PRO er centrum for tilslutning af alle ISOBUS maskiner og en platform til kørsel af præcisionslandbrugsapplikationer. Det giver alt, hvad en landmand har brug for, for at få mest muligt ud af sine maskiner og afgrøder, samt med omkostningsbesparelser i gødning, kemikalier og frø ved automatisk sektionskontrol og variabel satskontrol. Med den unikke dobbeltskærms funktion giver det mulighed for at se og styre to maskiner og processer samtidigt.
Arbejd nemt, vær i kontrol.

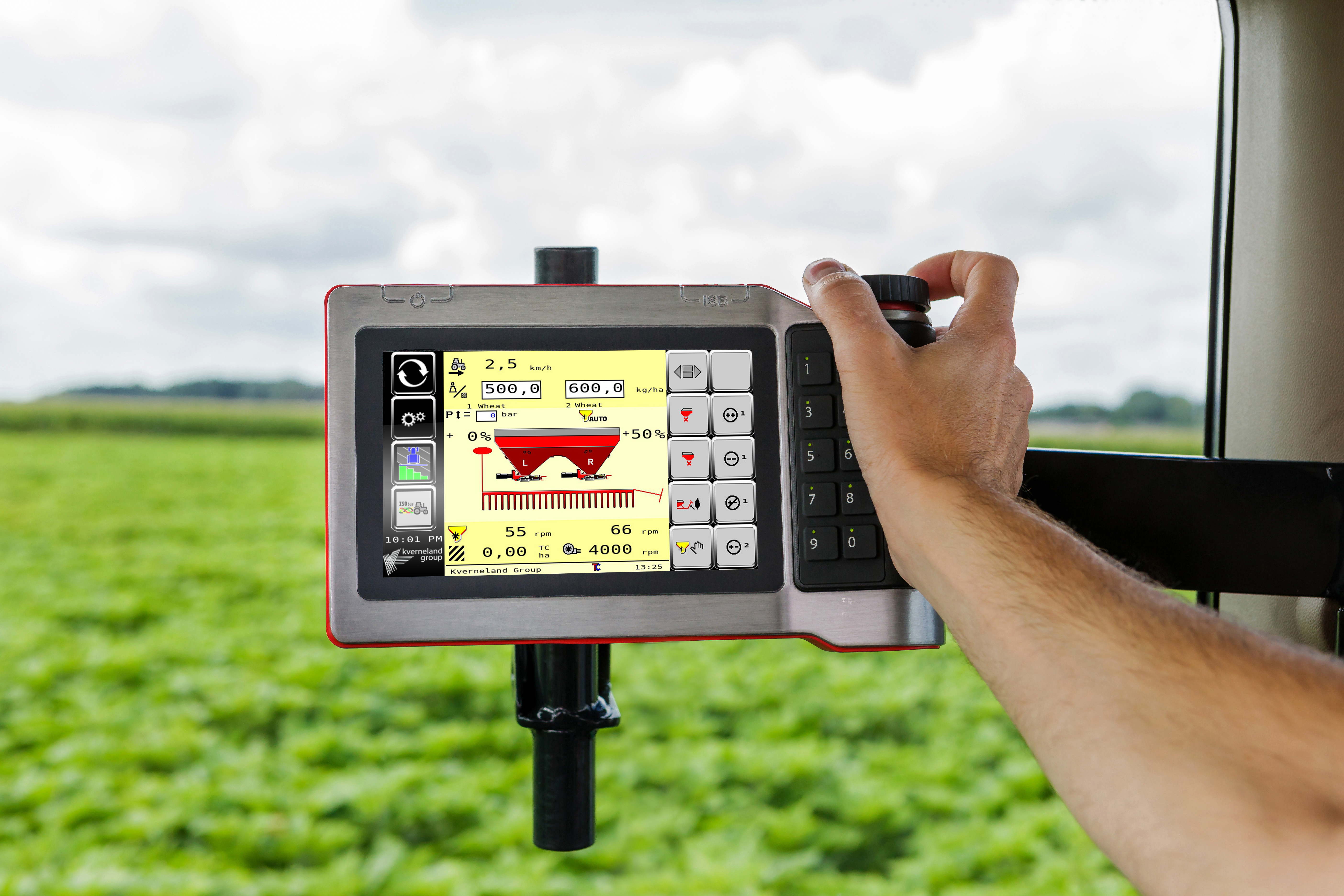

IsoMatch Tellus GO+ er specielt udviklet til at styre maskinen på en enkel måde. Landmanden har fuld kontrol over maskinen på præcis den måde, han ønsker. Maskinen kan nemt sættes op med de bløde taster via 7" touch skærm og optimal kontrol under kørslen skal du bruge de hårde taster og drejekontakten. det har aldrig været så nemt at styre redskabet.
Det kan være dit første skridt ind i præcisionslandbrug, aldrig har det været så let.
IsoMatch Tellus GO+ gør det nemt at styre enhver ISOBUS maskine fra dit førerhus. IsoMatch GEOCONTROL giver dig mulighed for at opnå hørere udbytte, lavere omkostninger og gøre dit arbejde meget lettere. Denne licensnøgle er opdelt i to dele, sektionskontrol og variabel ratekontrol, som er tilgængelig fra IsoMatch Shop. Nu kan du købe den specifikke funktionalitet, du har brug for.
GEOSEED increases the yields of row crops and ensures maximum efficiency. Seeds are placed perfectly in line and in relation to each other.
GEOSEED is offered in two different levels:
GEOSEED Level 1 is the synchronization in the machines working width. This improves the distribution of seeds up to perfection in parallel or diamond pattern: Positive effects are the best use of nutrients, water and sun. Also the wind and water erosion is decreased.
GEOSEED Level 2 is the synchronization in the whole field. This is the necessary requirement for interrow cultivation, also across the seeding direction. GEOSEED is the only system in the world, that makes this mechanic weeds control possible!
Teknisk specifikation
Teknisk specifikation
Download brochureModel | Optima RS | Optima RS | Optima RS | Optima RS | Optima RS | |
---|---|---|---|---|---|---|
Rammetype | Fast | Fast | Fast | Fast | Fast | |
Arbejdsbredde (m) | 6.10 | 6.80 | 7.60 | 8.30 | 9.30 | |
Antal SX-sækkerækker | 8 - 12 | 8 - 12 | 12 | 12 - 18 | 12 - 18 | |
Rækkebredde SX-rækken (cm) | 45-80 | 45-80 | 65 | 45-70 | 50-80 | |
Transportbredde (m) | 3.00 | 3.00 | 3.00 | 3.00 | 3.00 | |
Mekanisk drev af række | Valgmulighed | Valgmulighed | Valgmulighed | Valgmulighed | Valgmulighed | |
e-drive II, klar til GEOSEED® | Valgmulighed | Valgmulighed | Valgmulighed | Valgmulighed | Valgmulighed | |
Ventilator drev 1000rpm | Valgmulighed | Valgmulighed | Valgmulighed | Valgmulighed | Valgmulighed | |
Blæserdrev 800 rpm | Standard | Standard | Standard | Standard | Standard | |
Hydraulisk blæserdrev | Tilvalg | Tilvalg | Valgmulighed | Valgmulighed | Valgmulighed | |
Forbindelse | KAT III / KAT IV N | KAT III / KAT IV N | KAT III / KAT IV N | KAT III / KAT IV N | KAT III / KAT IV N | |
Dæk 7.00-12AS | Tilvalg | Valgmulighed | Valgmulighed | Mulighed | Valgmulighed | |
Dæk 26x12.00STG | Standard | Standard | Standard | Standard | Standard | |
Hydraulisk betjent sporskriver | Standard | Standard | Standard | Standard | Standard | |
Hydraulisk rammeballastsæt | Tilvalg | Mulighed | Valgmulighed | Valgmulighed | Valgmulighed | |
Monteret gødningsspreder | Valgmulighed | Valgmulighed | Valgmulighed | Valgmulighed | Valgmulighed | |
Maksimalt antal rækker med monteret gødningsspreder | 12 | 12 | 12 | 18 | 18 | |
Mekanisk drev til gødningsspreder | Standard | Standard | Standard | Standard | Standard | |
Elektrohydraulisk drev til gødningsspreder | Tilvalg | Tilvalg | Tilvalg | Valgmulighed | Valgmulighed | |
Gødningstankens kapacitet i liter | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 | |
Antal rækker med frontbunker f-drill / iXtra LiFe | 8 - 12 | 8- 12 | 12 | 12 - 18 | 12 - 18 | |
Mikrogranulat-applikator mikro-boremaskine | Valgmulighed | Valgmulighed | Valgmulighed | Mulighed | Valgmulighed |
Teknisk specifikation
Teknisk specifikation
Download brochureOptima SX seeding row |
|
Hopper capacity (liter) |
60 |
V-press wheel 25mm |
• |
V-press wheel 50mm |
º |
Electronic drive e-drive II |
• |
Rape Kit |
º |
Max. driving (km/h) |
18 |
Min. row width (cm) |
40 |
Weight (kg) |
129 |
