S series
Kverneland rotorharver med styrke og pålidelighed - rotorharver, du kan stole på!

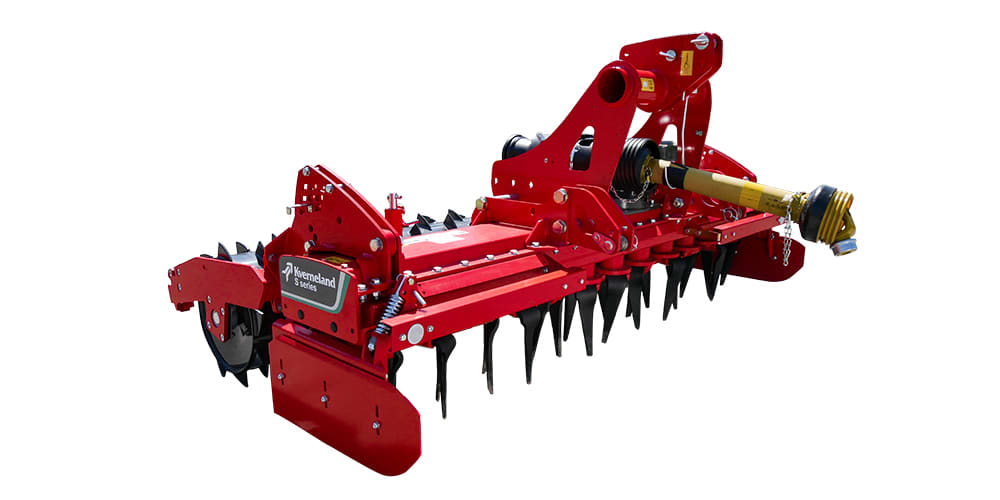

Kverneland S-serien er en heavy-duty rotorharve til traktorer op til 250 hk.
Højdepunkter
Stærk modstandsdygtighed over for slid og vridning Grundig smuldring over hele arbejdsbredden Maksimal alsidighed med alle typer såmaskiner Reduceret spidsbelastning og brændstofforbrug Stort udvalg af bagrullerBeskrivelse
Kverneland S-serien er en heavy-duty rotorharve til forskellige opgaver og jordtyper. S-serien er robust designet til brug på traktorer op til 250 hk, og med en stærk og kraftig rotorbjælke og Quick-Fit-tænder er den den rigtige løsning til store landbrug og maskinstationer.
S-serien er udstyret med Quick-Fit-tænder som standard. Aktive tænder med mere aggressiv virkning er tilgængelige for optimal ydeevne under vanskelige jordforhold. Bjælkedesignet giver en stor afstand mellem tandholderne og bjælkebunden. Det betyder, at store mængder restprodukter og sten kan passere frit uden at blokere. Det er muligt at bruge den alene eller i kombination med de tungeste Kverneland kultivatormonterede såmaskiner.
Højdepunkter
- Stærk slidstyrke
- Stærk modstandsdygtighed over for slid og vridning af den selvbærende bjælke.
- Robust såmaskine ophæng
- Ensartet smuldring over hele arbejdsbredden med fire rotorer (8 tænder) pr. meter.
- Maksimal alsidighed - nem og enkel kombination med alle typer såmaskiner.
- Reduceret spidsbelastning og brændstofforbrug.
- Bredt udvalg af valser
Funktioner
For optimum performance in difficult soil conditions, the robust and self-supporting trough design provides a large clearance between the tine holder and trough bottom. This allows large amounts of residues and stones to pass freely without blocking and provides excellent results in mulch conditions.
Model |
Trough dimension (mm) |
Gears |
Ø Shaft (mm) |
Bearings (mm) |
Bearing distance (mm) |
Rotor clearance (mm) |
M series |
140 x 400 |
tempered |
40 & 45 |
80 - 90 |
70 |
98.25 |
H series |
165 x 400 |
tempered & hardened |
45 & 50 |
90 - 100 |
84.5 |
90.5 |
S series |
200 x 400 |
hardened |
55 & 60 |
110 - 120 |
110.5 |
100 |
The S Series is equipped with Quick-Fit tines as standard. These are secured by a special pin and clip mounted in the tine holder. Tine replacement is, therefore, very easy without the need for tools. Downtime can be further minimized by an optional carbide layering of the tines. This will ensure a long liftime and minimum wearing even in tough and abrasive soils.
Depending on soil conditions there is the choice of Standard and Active tines.
Active tines
The active tines ensure optimum penetration in hard or not cultivated soil. The tine, due to its shape, pulls itself into the ground. This gives a constant working depth and also prevents the machine from lifting out of the ground in hard dry soil conditions. In addition, it creates additional re-compaction at the packer roller. The active tine lifts the material and pushes it in front of the power harrow. This gives an optimum levelling effect even in tractor tracks. In mulch conditions the active tines can work directly into stubble and hard soil. The special shape of the tines keeps residues on the surface and this gives a big advantage against erosion.
Helical tine positioning
The tines are arranged in varying angle positions in order to prevent damage caused by stones and ensure even levelling. 4 rotors per meter and the helical tine positioning reduce the peak loads on the driveline which results in smoother running and less fuel consumption. All gears are hardened in the trough for a long lifetime.
Flexibility is key!
The coulterbar can be easily coupled and uncoupled with a coupling hook similar to the front loader coupling. Track markers are attached to the power harrow. Therefore, the power harrow is ready for solo operation within short time. The coulterbar is attached with the Euro-Connection directly to the roller frame and can quickly and easily be hitched thanks to the readily accessible hydraulic and electronic interface.
The e-drill is exclusively designed to be combined with Kverneland power harrows (H-series and NGS).
Re-consolidation for a stable soil structure
Rollers ensure re-cmpaction of the soil as final step of the optimum seedbed preparation. By reducing soil porosity and limiting evaporation, all plants will have the same access to nutrients, moisture and light. This will give the crop a good start for a perfect growth and high yields.
The right rollers for all types of soil and conditions:
Actipack ø560mm – 205 kg/m
- For medium to heavy soils, also in wet, stony and sticky conditions due to the independent skids and knives
- The cutting discs break the larger clods whilst the adjustable knives cut the remaining clods resulting in optimal clod breakdown and fine seedbed preparation
Cracker Packer ø550mm – 200kg/m
- For medium to heavy soils
- Real stripe-wise reconsolidation (12.5cm) in front of seed coulters – only 50% of the soil surface is rolled
- Good absorption of water
- Sufficient soil left loose for covering of seeds
- Good crumbling effect especially on heavy soils
- Smooth rings and passive-angled knives – no blocking when used in mulch conditions
Tooth Packer roller ø575mm – 160kg/m
- Medium to heavy soils
- Good carrying capacity
- Good self-cleaning effect
- Central adjustable scraper bar with independently adjustable scrapers
- Carbide coated scrapers on request
- Most versatile roller – especially as part of heavy power harrow/seed drill combination
Cage roller ø550mm – 90kg/m
- Light to medium soil and dry working conditions e.g. seed bed preparation for potato planting
- 10 bars for a good loading capacity and option in wet conditions
Teknisk specifikation
Teknisk specifikation
Download brochureModel | S-serien | S-serien | S-serien | S-serien | |
---|---|---|---|---|---|
Maskintype | Fast | Fast | Fast | Fast | |
Arbejdsbredde (m) | 3.0 | 3.5 | 4.0 | 4.5 | |
Transportbredde (m) | 3.0 | 3.5 | 4.0 | 4.5 | |
Bjælkedimension (mm) | 200 x 400 | 200 x 400 | 200 x 400 | 200 x 400 | |
PTO indgangshastighed (rpm) | 1,000 | 1,000 | 1,000 | 1,000 | |
Overbelastningsbeskyttelse på PTO-aksel (Nm) | 2,500 | 2,500 | 2,500 | 2,500 | |
Antal rotorer | 12 | 14 | 16 | 18 | |
Standard rotorhastighed 1000rpm (rpm) | 298 | 298 | 298 | 298 | |
Valgfri rotorhastighed 1000rpm (rpm) | 365 og 435 | 365 og 435 | 365 og 435 | 365 og 435 | |
Afstand mellem koniske lejer (mm) | 110.5 | 110.5 | 110.5 | 110.5 | |
Rotorafstand (mm) | 100 | 100 | 100 | 100 | |
Antal tænder | 24 | 28 | 32 | 36 | |
Tændernes dimension (mm) | 18 x 330 | 18 x 330 | 18 x 330 | 18 x 330 | |
Quick-Fit-tænder | Standard | Standard | Standard | Standard | |
Aktive tænder | Mulighed | Mulighed | Mulighed | Mulighed | |
3-punkts kobling: Top | CAT II/CAT III | CAT II/CAT III | CAT II/CAT III | CAT II/CAT III | |
3-punkts kobling: Lav | CAT II/CAT III N/CAT III | CAT II/CAT III N/CAT III | CAT II/CAT III N/CAT III | KAT II/CAT III N/CAT III | |
Justering af dybde | manuel | manuel | manuel | manuel | |
Slæbeplanke bagerst | Mulighed | Ekstraudstyr | Mulighed | Ekstraudstyr | |
Sporløsner | Mulighed | Mulighed | Mulighed | Mulighed | |
Valser | Rørvalse (ø 550 mm), Tandpakkervalse (ø 575 mm), Actiline-valse (ø 550 mm), Crackerpakkervalse (ø 550 mm), Actipack-valse (ø 560 mm) | Rørvalse (ø 550 mm), Tandpakkervalse (ø 575 mm), Actiline-valse (ø 550 mm), Crackerpakkervalse (ø 550 mm), Actipack-valse (ø 560 mm) | Rørvalse (ø 550 mm), Tandpakkervalse (ø 575 mm), Actiline-valse (ø 550 mm), Crackerpakkervalse (ø 550 mm), Actipack-valse (ø 560 mm) | Rørvalse (ø 550 mm), Tandpakkervalse (ø 575 mm), Actiline-valse (ø 550 mm), Crackerpakkervalse (ø 550 mm), Actipack-valse (ø 560 mm) | |
Forberedt for integreret såmaskine | Mulighed | Mulighed | Mulighed | Mulighed | |
Lysudstyr | Mulighed | Mulighed | Mulighed | Mulighed | |
Samlet vægt (kg)* | 1,900 | 2,080 | 2,290 | 2,560 | |
Minimumskrav til effekt (kW/HP) | 74/100 | 74/100 | 74/100 | 74/100 | |
Maksimalt effektbehov (kW/HP) | 184/250 | 184/250 | 184/250 | 184/250 |
* Ca. vægt med slæbeplanke, tandpakkervalse ⌀ 575mm og PTO-aksel ca.
Teknisk specifikation
Teknisk specifikation
Download brochureModel |
Working width (m) |
No. of rotors/tines |
Weight with packer roller (kg) |
Min./max. HP |
S series |
3.0 |
12/24 |
1,670 |
100/250 |
S series |
3.5 |
14/28 |
1,950 |
100/250 |
S series |
4.0 |
16/32 |
2,225 |
100/250 |
S series |
4.5 |
18/36 |
2,510 |
100/250 |
* Ca. vægt med slæbeplanke, tandpakkervalse ⌀ 575mm og PTO-aksel ca.
