Kverneland 9471 S EVO
Sideudlægningsriver til den fleksible løsning
CompactLine bugserede sideudlægningsriver med 7,1 m arbejdsbredde.
Beskrivelse
9471 S Evo, med en arbejdsbredde på 7,1 m, er designet til maksimal fleksibilitet og rivning under forskellige forhold. De to rotorer arbejder uafhængigt af hinanden, hvilket gør det muligt at opsamle enten et stort skår eller to mindre natskår. Disse river kan lægge to store skår i ét, så der i alt kan samles op til 12,5 m afgrøde i ét skår. I afgrøder med lav volumen kan der desuden rives flere overgange i én række.
Højdepunkter

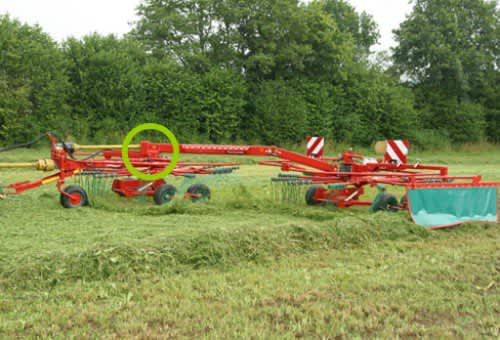

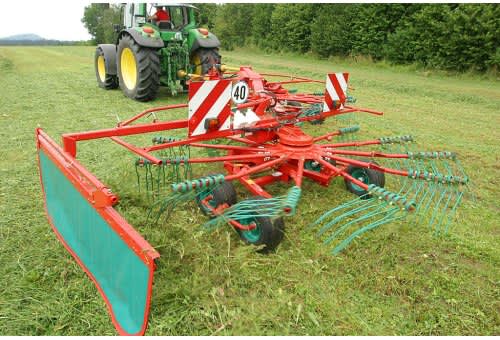

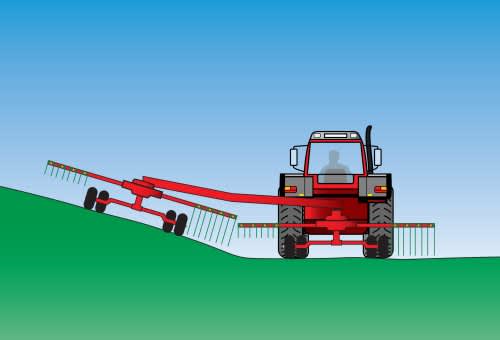

- TerraLink giver en perfekt jordkonturfølgning
- Muligt at samle afgrøden i ét skår fra op til 12,5 m eller lægge to mindre natskår
- QuickLift - giver hurtigt løft på forageren og tilstrækkelig plads til at køre over skårene uden at beskadige dem
- Vedligeholdelsesvenlig CompactLine-gearkasse med fuldt lukket oliebad
Funktioner
- The Kverneland CompactLine rakes feature oil-immersed cam discs and guide rollers.
- Tine arm bearings are fully lubricated, and hence absolutely maintenance-free.
- High-tensile tine arm holders and two bearings on either side of the driveshaft, provide the compact unit with strength and dependability.
- Kverneland-developed cam tracks are specifically tailored to individual rotor diameters, for optimum raking at any working width and on any model.

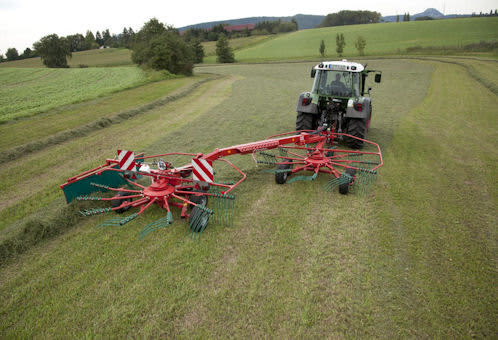

- The Vario version also offers the patented SideShift system as an option, which comprises electro-hydraulic control of all functions.

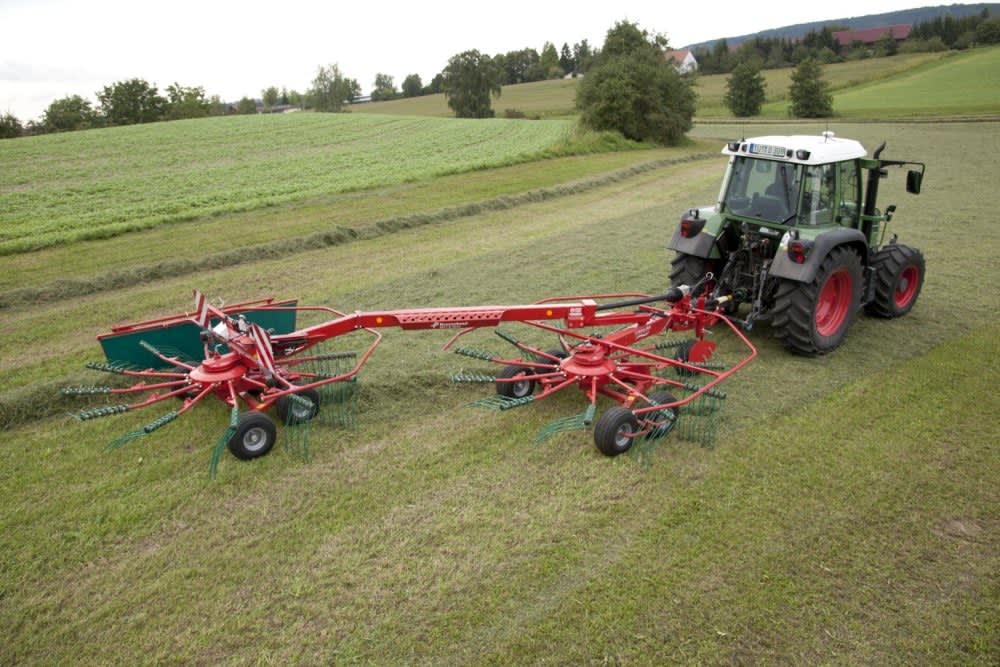

- A special feature on the Kverneland 9471 S Vario is the possibility to operate both rotors – front and rear – in an offset position from the tractor cab.
- With this patented system, raking along field boundaries or around trees is no problem – as the tractor can run at a safe distance from the obstacles.
- It is also possible to run on raked fields while having the rake offset to the left side.

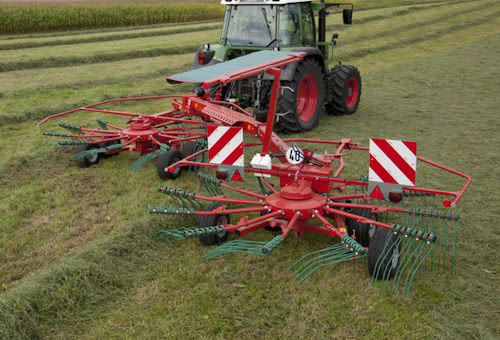

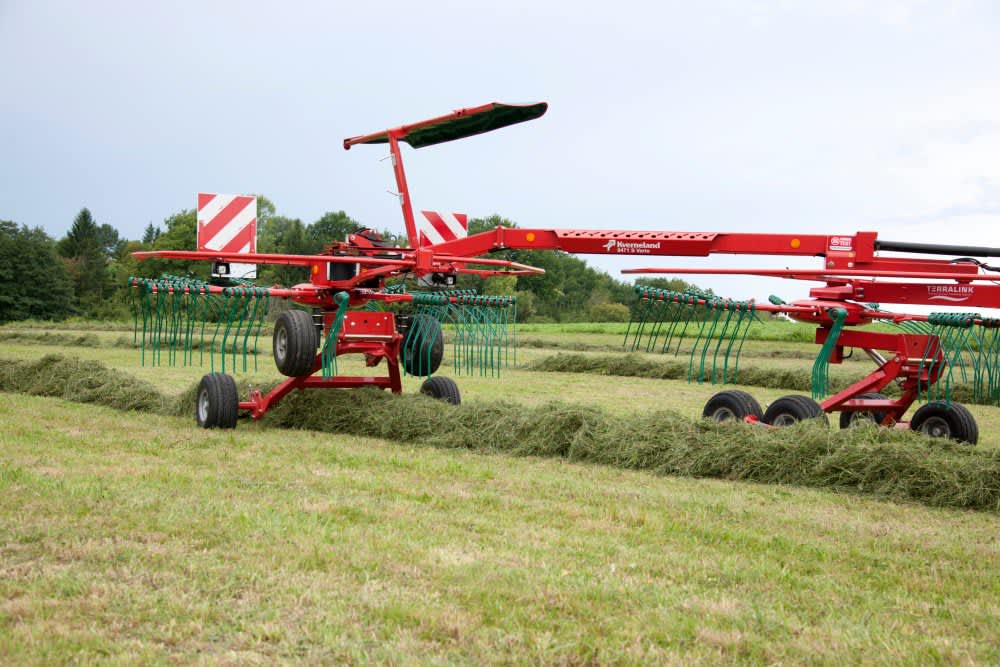

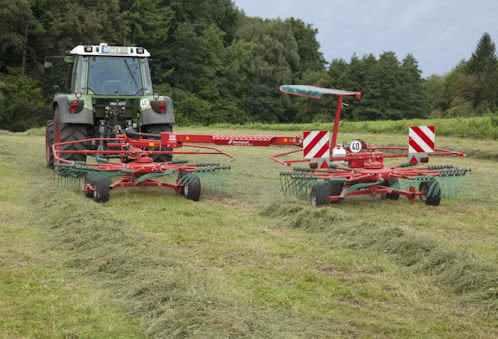

- It is possble to collect either one large swath or two smaller swaths.
- Both 9471 S models can place two large swaths into one, allowing a total of up to 12.50m crop to be gathered into one swath.
- It is also possible to place two small night swaths for hay crops.
- Completely maintenance- and wear-free.
- Quiet machine running due to automatic dampening

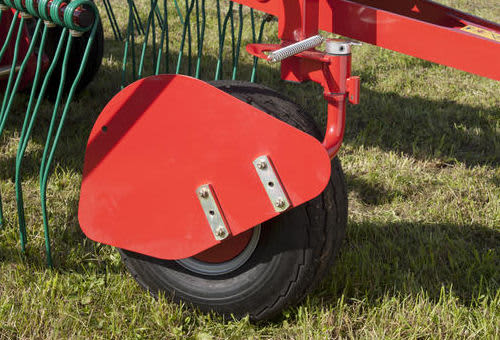

- Wide track boogies with large wheels provide perfect ground contour following
- Trailed axle configuration enhances quiet running and reduces tractor input power

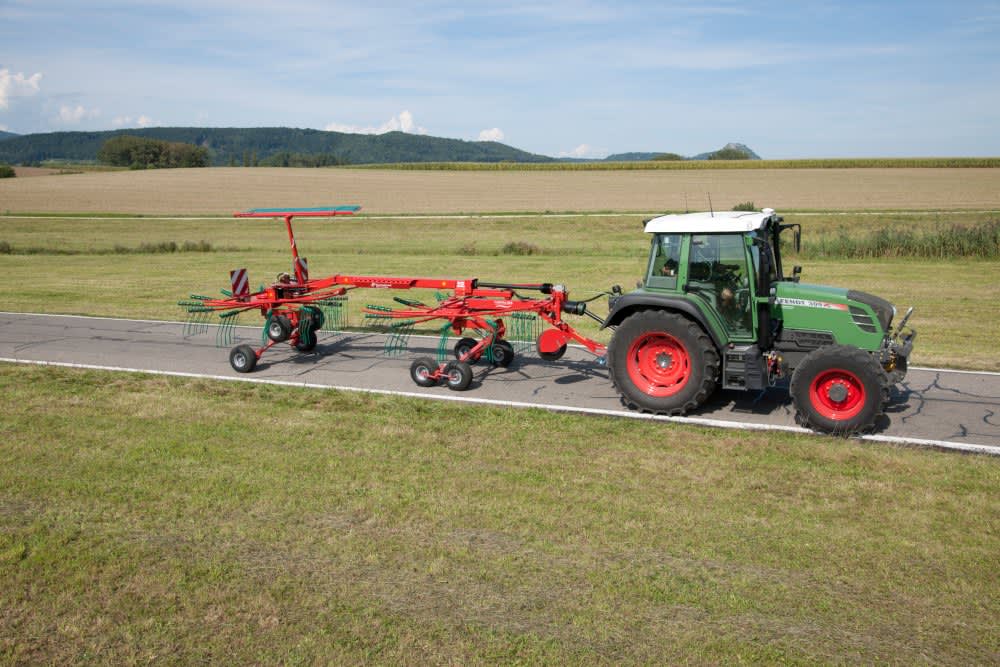

- Superb tracking in road transport

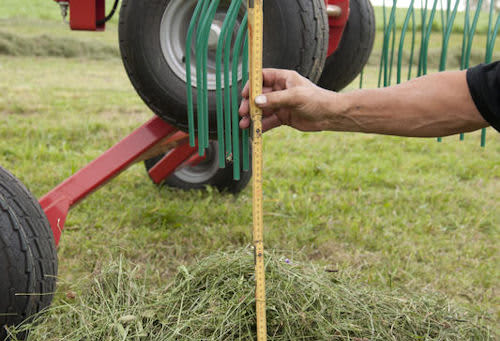

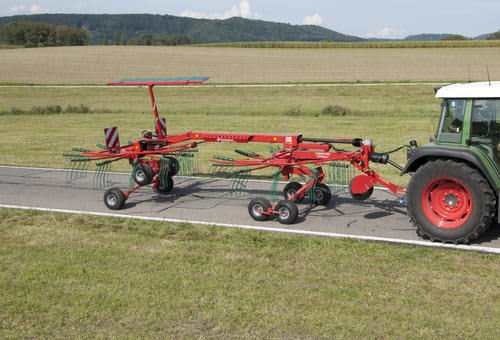

- Kverneland 9471 S is equipped with the QuickLift system as standard.
- This ensures a lifting height of 50cm to easily over cross existing swathes. Furthermore the axles are pulled
- Rotors are lifted using only a single acting valve.

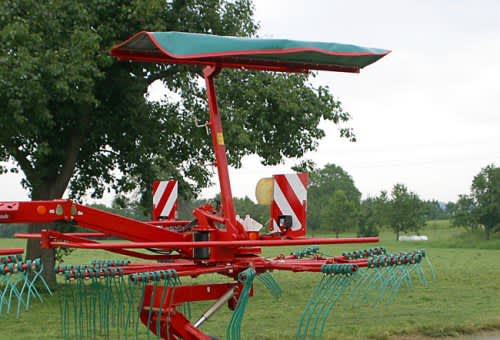

- During transport the swath board automatically fold clear. Transport width is below 3m (2.45m with tine arms removed).
Teknisk specifikation
Teknisk specifikation
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| 9471 S EVO | ||
|---|---|---|
| Working Width | 6.6/7,1m | |
| Tine Arms | 11/12 | |
| Weight (kg) | 1350 | |
| Rotor diameter (m) | 2.95 |
Unable to load the table
Teknisk specifikation
Teknisk specifikation
Download brochureWorking Width |
No of Tine Arms |
Weight |
|
9471 S Vario |
6.60/7.10m |
11/12 |
1400kg |
9471 S Evo |
6.60/7.10m |
11/12 |
1350kg |
