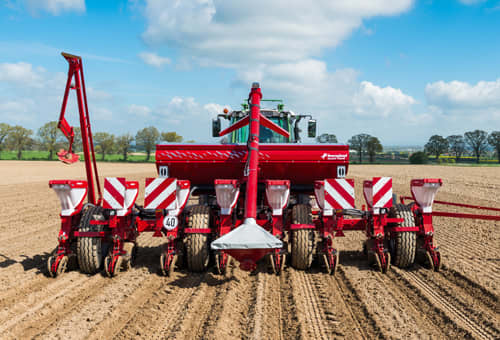

Optima TFprofi
Høj ydeevne og effektivitet ved lav trækkraft

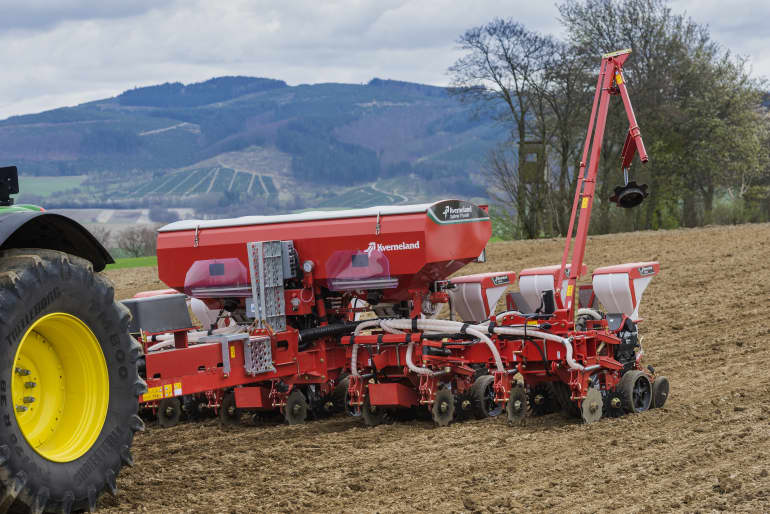

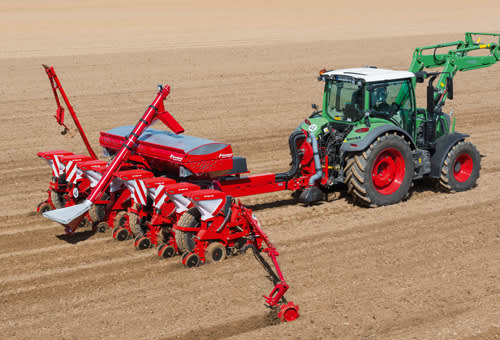

Luftpræcisionssåmaskinen Optima TFprofi med bugseret ramme kombinerer såning med højeste præcision, høj ydeevne og lav trækkraft
Højdepunkter
Den mest præcise udbringning af frø Alsidighed: til alle slags frø Lavt strømbehov Praktisk tilkobling og stor manøvredygtighed GEOCONTROL og GEOSEEDBeskrivelse
Kverneland Optima er den universelle præcisionssåmaskine til forskellige typer frø og er klar til mulch- eller konventionel såning. Optima TFprofi er udstyret med en bugseret hydraulisk folderamme i en arbejdsbredde på 6 m (6,4), hvilket giver den perfekte kombination af den mest præcise frøplacering, høj ydelse og et reduceret krav til traktorkraft på kun 90 hk.
Otima TFprofi er udstyret med HD-II. Den valgfrie gødningstank på 2.000 l kan nemt fyldes med en frontlæsser, big bags eller som en mulighed med en påfyldningssnegl. Forskellige gødningsskær er tilgængelige. Som ekstraudstyr kan gødningsmængden drives elektrohydraulisk. Kombinationen med en iXtra LiFe gør det muligt at anvende flydende gødning under såning.
Funktioner
The Optima TFprofi offers constant seeding depth control and high frame stability.

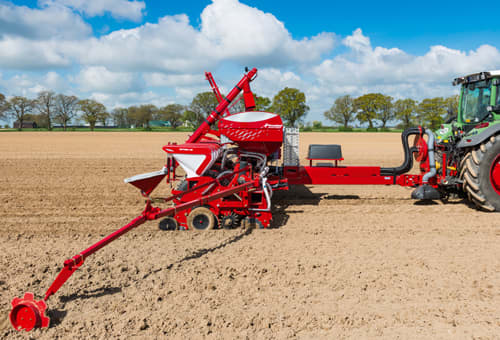

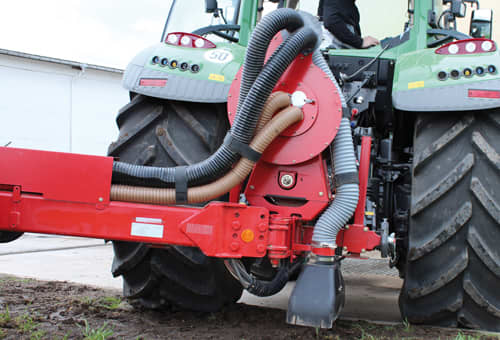

Convenient coupling and great manoeuvrability
As standard the TFprofi is equipped with a CAT3N cross shaft. Thus the pivot point lies substantially behind the tractor tyres. This brings two advantages for the driver. Firstly turning at angles of up to 90° are possible, secondly the Optima TFprofi follows the tractor tracks in curves. The fan is assembled on the cross shaft. Thus the pto shaft is always straight and the wearing of the universal joints is minimized.

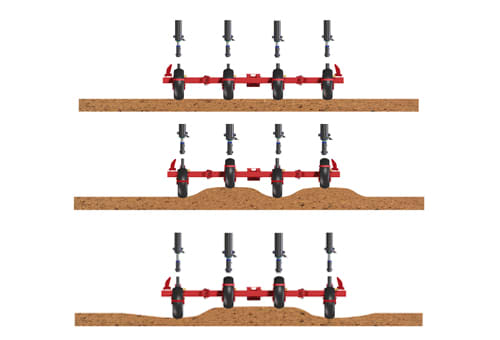

Four wheel chassis for maximum stability
The Optima TFprofi can be equipped with four landwheels as an option. They carry the machine during work and half the ground pressure both in work and on the headlands.
The landwheels are fully floating; thanks to an intelligent hydraulic system that allows the wheels to follow the ground contours individually. All four hydraulic cylinders are of dual chamber design. The upper part of the machine cylinder is for the lifting and lowering of the machine. The lower chamber is connected to the adjacent cylinder, to enable the cylinders to counterbalance each other. This allows the landwheels to follow the ground contours individually (by as much as 15cm in either direction) which guarantees the same constant pressure on all wheels. At the same time when working in rough conditions frame movements are reduced by 50%. This results in improved smoothness of ride, even at higher working speeds of up to 12km/h.

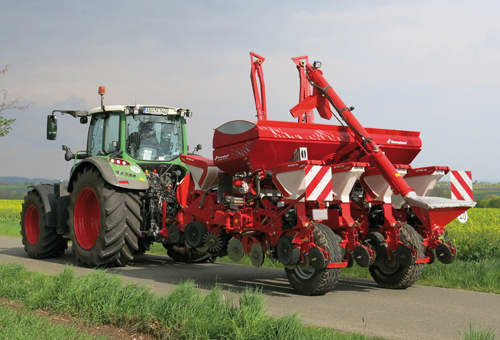

Comfort on the road
To prepare the TFprofi for road transport, the driver simply starts the folding process directly from the tractor cab. The wing sections are hydraulically swung to the front of the machine next to the drawbar. The transport width is 2.98m only (3.40m at 80cm row width). A maximum transport speed of 40 km/h is possible even with a 3/4 filled hopper when equipped with the optional pneumatic or hydraulic brake system.

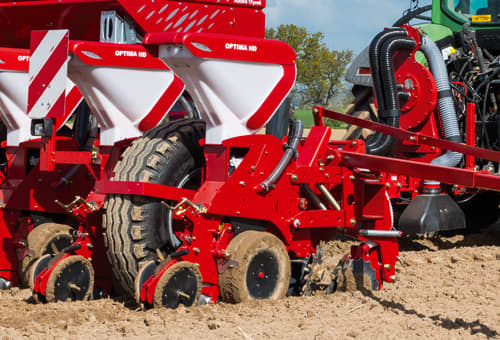

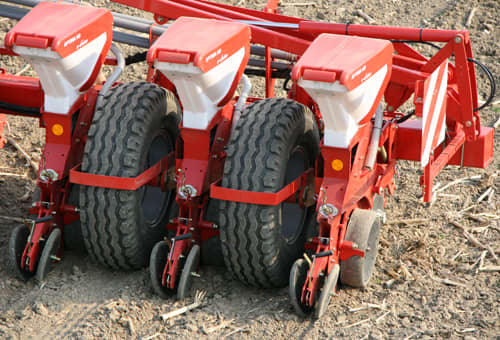

Til mulch og konventionel såning
- Optimal dybdekontrol selv under vanskelige forhold takket være såhusets tunge vægt samt mulighed for at lægge yderligere tryk (op til 100 kg) på hvert enkelt såhus via fjederbelastningssystemet.
- Effektiv jordfølgeevne takket være de store dybdehjul (Ø400 mm, bredde 120 mm), præcis kerneplacering på grund af det lille såskær, som laver en fin sårille. God kerneplacering og efterfølgende tildækning sker ved hjælp af det mellemliggende trykhjul (ekstraudstyr: tung model i rustfrit stål) og det justerbare V-trykhjul, og sikrer god vækst.
Seeding heart without seals for HD-II
The patented seeding heart by Kverneland has reduced maintenance costs to a minimum.
- No friction, no wear, low drive torque, minimum maintenance: The seed disc rotates in the seeding heart together with the vacuum chamber. This seeding drum is connected to the vacuum fan via a hollow shaft.
- This seed heart principal results in no loss of vacuum, and therefore a low vacuum requirement
e-drive/e-drive II – complete control and monitoring of the machine from the tractor cab in accordance with ISOBUS standard
- With e-drive/e-drive II, each sowing unit is driven individually via an electric motor.
- The low-maintenance drive is connected directly to the seeding heart via a toothed belt in an encapsulated dust proof housing.
- This enable an extremely compact design and smooth drive characteristics with low current consumption
- All the data is entered and read out via an ISOBUS terminal like IsoMatch Tellus PRO or Tellus GO.
- The sowing distances are infinitely adjustable and can be changed during sowing.
- All the sowing units can be switched off individually.
- In conjunction with “close row” sowing widths of 37.5cm a further benefit of the e-drive/e-drive II comes into play: Individual tramline switching. Tramlines can be set up for any spray width.
- The e-drive/e-drive II features complete electronic monitoring of all machine functions including seed monitoring via an opto sensor.
The new fertiliser hopper has a capacity of 2,000l. The wide opening of nearly 3m enables the filling with front loader or big bags. An optional filling auger is also available.
The dosing units can, as an option, be driven electro-hydraulically. This is controlled and monitored via ISOBUS. The electro-hydraulic drive of the metering device enables constant adaptation of the application rate during work (as well as via application charts with GEOCONTROL). In addition the exact switching on/off at headlands is also possible.

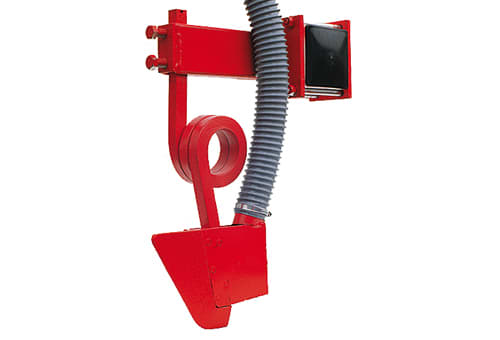

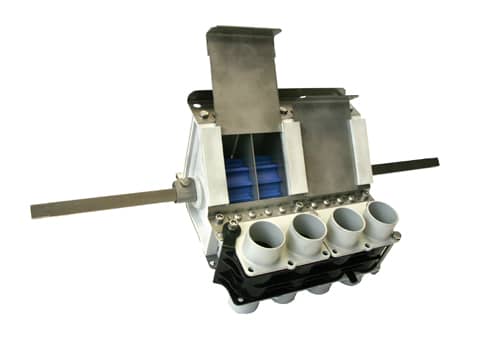

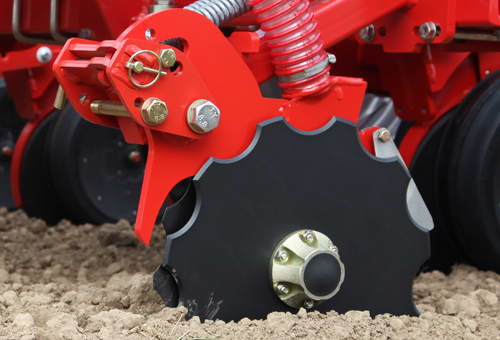

The fertiliser dosing is done by two quad outlet dosing units. Each row comes with its own air support to ensure the steady conveyance of high amounts of fertiliser especially when working on hillsides.

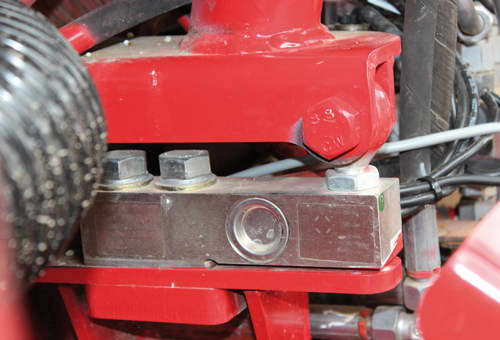

Another option is that the fertiliser hopper can be placed on 4 weigh cells for a constant control and monitoring of the application rate. Prior to operation, the amount of fertiliser required for the job can be filled into the hopper and can be adjusted to what is really needed.
For contractors whose machines work for several customers, a further advantage is the possibility to invoice the fertiliser used accurately to the kilogram.
Micro-drill for Optima HD-II and SX sowing units
The demand for microgranule applicators is increasing. Micro nutrients and also small amounts of insecticides or fungicides ensure the best start of the crop.
The electric driven micro-drills for the Optima HD-II and SX sowing units have been designed as backpack behind the sowing units and offer a hopper capacity of 17 liters.
They are electrically driven and ISOBUS controlled. The metering device consists of a wear-resistant plastic housing with exchangeable cell wheels made of stainless steel. This ensures the precise metering of the micro granules.
Operator’s safety
The engineers had focus on highest level of operator’s safety by offering easy and safe handling of the applicator. Therefore, the operator can exchange the cell wheels even when the hoppers are full of micro granule. There is no need to empty them first, reducing the operator’s risk of getting in direct contact with the granules.
A plus for the environment
The micro granules fall freely into the seed furrow without any air support, minimising the emission of dust. Therefore, the new micro-drill fully complies with the current guidelines for emission control of any granules applied.
Precision Farming
The comfortable, fully ISOBUS integrated control system allows the adaption to the stop and starting points of the seed row. This ensures precise shutting on and off at the end of the field and in tramlines (without overlaps or faults).
IsoMatch GEOCONTROL - Cost saving with immediate payback
Seeding with GPS and GEOCONTROL in combination with an electric driven precision drill is a major step towards precision and cost saving. These machines are all equipped with ISOBUS technology which with the help of the IsoMatch Tellus terminal, can be easily controlled.
Each electric driven seeding element, in combination with GPS and GEOCONTROL, is automatically switched on or off in exactly the right place, ensuring there is no overlap with any row that has already been seeded. This is especially handy in triangular fields, on curved or irregular shaped headlands.
GEOSEED - Precision at high end
GEOSEED is offered in two different levels:
GEOSEED Level 1 is the synchronization in the machines working width. This improves the distribution of seeds up to perfection in parallel or diamond pattern: Positive effects are the best use of nutrients, water and sun. Also the wind and water erosion is decreased.
GEOSEED Level 2 is the synchronization in the whole field. This is the necessary requirement for interrow cultivation, also across the seeding direction. GEOSEED is the only system in the world, that makes this mechanic weeds control possible!
The trailed, foldable frame with either six or eight rows can be equipped with a 1340l fertiliser hopper. The Optima TFprofi is very compact in transport position.

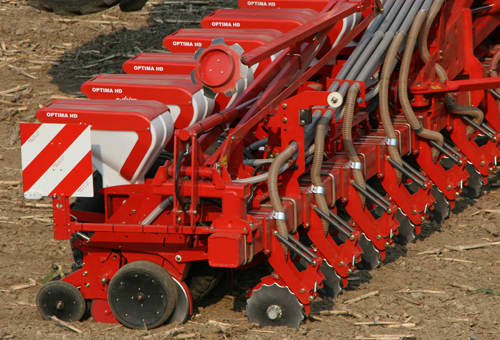

For mulch and conventional sowing
- The heavy basic weight of the sowing unit together with the possibility to add additional pressure (up to 100kg) onto each individual sowing unit via the optional spring loaded system allows optimum depth control even unter extreme conditions.
- Effective ground contour following, due to the large lateral depth control wheels (Ø 400mm, width 120mm), precise seed placement and seed covering by means of the intermediate press wheel and the multi adjustable V-press wheel, ensure maximum field emergence.
- The sowing unit Optima HD can be mounted on all Optima frames (3-point linkage or trailed).
Seeding heart without seals
- The patented seeding heart by Kverneland has reduced maintenance costs to a minimum
- No friction, no wear, low drive torque, minimum maintenance: The seed disc rotates in the seeding heart together with the vacuum chamber. This seeding drum is connected to the vacuum fan via a hollow shaft
- This seed heart principal results in no loss of vacuum, and therefore a low vacuum requirement
e-drive/e-drive II – complete control and monitoring of the machine from the tractor cab in accordance with ISOBUS standard
- With e-drive/e-drive II, each sowing unit is driven individually via an electric motor.
- The low-maintenance drive is connected directly to the seeding heart via a toothed belt in an encapsulated dust proof housing.
- This enable an extremely compact design and smooth drive characteristics with low current consumption
- All the data is entered and read out via an ISOBUS terminal like IsoMatch Tellus PRO or Tellus GO.
- The sowing distances are infinitely adjustable and can be changed during sowing.
- All the sowing units can be switched off individually.
- In conjunction with “close row” sowing widths of 37.5cm a further benefit of the e-drive/e-drive II comes into play: Individual tramline switching. Tramlines can be set up for any spray width.
- The e-drive/e-drive II features complete electronic monitoring of all machine functions including seed monitoring via an opto sensor.
The new fertiliser hopper has a capacity of 2,000l. The wide opening of nearly 3m enables the filling with front loader or big bags. An optional filling auger is also available.
The dosing units can, as an option, be driven electro-hydraulically. This is controlled and monitored via ISOBUS. The electro-hydraulic drive of the metering device enables constant adaptation of the application rate during work (as well as via application charts with GEOCONTROL). In addition the exact switching on/off at headlands is also possible.
The fertiliser dosing is done by two quad outlet dosing units. Each row comes with its own air support to ensure the steady conveyance of high amounts of fertiliser especially when working on hillsides.
Another option is that the fertiliser hopper can be placed on 4 weigh cells for a constant control and monitoring of the application rate. Prior to operation, the amount of fertiliser required for the job can be filled into the hopper and can be adjusted to what is really needed.
For contractors whose machines work for several customers, a further advantage is the possibility to invoice the fertiliser used accurately to the kilogram.
IsoMatch GEOCONTROL - Cost saving with immediate payback
Seeding with GPS and GEOCONTROL in combination with an electric driven precision drill is a major step towards precision and cost saving. These machines are all equipped with ISOBUS technology which with the help of the IsoMatch Tellus terminal, can be easily controlled.
Each electric driven seeding element, in combination with GPS and GEOCONTROL, is automatically switched on or off in exactly the right place, ensuring there is no overlap with any row that has already been seeded. This is especially handy in triangular fields, on curved or irregular shaped headlands.
GEOSEED - Precision at high end
GEOSEED is offered in two different levels:
GEOSEED Level 1 is the synchronization in the machines working width. This improves the distribution of seeds up to perfection in parallel or diamond pattern: Positive effects are the best use of nutrients, water and sun. Also the wind and water erosion is decreased.
GEOSEED Level 2 is the synchronization in the whole field. This is the necessary requirement for interrow cultivation, also across the seeding direction. GEOSEED is the only system in the world, that makes this mechanic weeds control possible!
Præcisionslandbrug
Lavet til smart, effektivt og nemt landbrug
IsoMatch GEOCONTROL er et avanceret software-program inden for IsoMatch Tellus og IsoMatch Tellus GO+, der hjælper dig med at styre alle ISOBUS kompatible Kverneland Group maskiner såsom sprøjter, spredere og såmaskiner! Kombineret med en GPS-modtager opfylder den fremtidens behov med hensyn til nemt, smart og effektivt landbrug!
Når der besluttes, hvilket udstyr der skal købes, er det ikke altid let at finde den optimale løsning på det brede marked, som der tilbydes i dag. Teknologien udvikler sig hurtigt, da vores traktorer og redskaber er mere og mere udstyret med højteknologisk elektronik. Vi forstår denne kompleksitet og er forpligtet til at give dig nemme landbrugsløsninger. derfor er disse omkostningseffektive ISOBUS Universal Terminals, IsoMatch Tellus PRO og IsoMatch Tellus GO+ lavet til dem der ønsker en nem og effektiv maskinstyring.
Med sine avancerede hardware og softwarefunktioner leverer IsoMatch Tellus PRO den optimale præcisionslandbrugsløsning til et alt-i-et kontrolsystem i dit traktorførerhus.
IsoMatch Tellus PRO er centrum for tilslutning af alle ISOBUS maskiner og en platform til kørsel af præcisionslandbrugsapplikationer. Det giver alt, hvad en landmand har brug for, for at få mest muligt ud af sine maskiner og afgrøder, samt med omkostningsbesparelser i gødning, kemikalier og frø ved automatisk sektionskontrol og variabel satskontrol. Med den unikke dobbeltskærms funktion giver det mulighed for at se og styre to maskiner og processer samtidigt.
Arbejd nemt, vær i kontrol.
IsoMatch Tellus GO+ er specielt udviklet til at styre maskinen på en enkel måde. Landmanden har fuld kontrol over maskinen på præcis den måde, han ønsker. Maskinen kan nemt sættes op med de bløde taster via 7" touch skærm og optimal kontrol under kørslen skal du bruge de hårde taster og drejekontakten. det har aldrig været så nemt at styre redskabet.
Det kan være dit første skridt ind i præcisionslandbrug, aldrig har det været så let.
IsoMatch Tellus GO+ gør det nemt at styre enhver ISOBUS maskine fra dit førerhus. IsoMatch GEOCONTROL giver dig mulighed for at opnå hørere udbytte, lavere omkostninger og gøre dit arbejde meget lettere. Denne licensnøgle er opdelt i to dele, sektionskontrol og variabel ratekontrol, som er tilgængelig fra IsoMatch Shop. Nu kan du købe den specifikke funktionalitet, du har brug for.
With manual guidance you are perfectly on track.
The IsoMatch InLine is a light bar which allows easy manual guidance. It is the perfect assistant to get you as close as possible to your desired A-B line. Mounted in the line of sight, you can easily see the distance from the A-B line and to which direction you should steer for the ideal position. The display of the IsoMatch InLine also displays the status of the machine sections, which adds more comfort of use. The LEDs can be dimmed for night operation.
SMART
Distance to A-B line with LED indication and a numeric display
EFFICIENT
Manual guidance in combination with IsoMatch GEOCONTROL
EASY
Displays status of machine sections
The essential accessory for IsoMatch GEOCONTROL.
The IsoMatch Global 2 is the GPS antenna, with DGPS accuracy, in the IsoMatch product range. It enables satellite navigation for site-specific section control, variable rate application, manual guidance and field registration.
SMART
Allows manual guidance, automatic section control and variable rate in combination with IsoMatch GEOCONTROL
EFFICIENT
DGPS accuracy without additional subscription fees
EASY
Easy to fit with mounting brackets included
The IsoMatch Eye is the camera option in the IsoMatch product range.
IsoMatch Eye is a camera that has been developed for use with our sophisticated IsoMatch Tellus and IsoMatch Tellus GO dual screen terminal. The IsoMatch Eye is switchable from rear view to standard view.
It gives you full control and overview of entire machine operation during day and night, because of its night vision by integrated LED’s. This increases the safety e.g. when reversing the machine or manoeuvring around obstructions.
SMART
Changeable from rear view to standard view
EFFICIENT
Full control and overview of entire machine operation
EASY
Night vision by integrated LED’s
IsoMatch MultiEye is an accessory for connecting multiple cameras to the IsoMatch Universal Terminal.
With the IsoMatch MultiEye you can connect multiple cameras to the IsoMatch Tellus or IsoMatch Tellus GO+ Terminal. You can easily switch between the cameras without the need for an additional screen in you tractor cabin. It gives you full control and overview of the entire machine operation during day and night, because of its night vision by integrated LED’s. This increases the safety when reversing the machine or manoeuvring around obstructions.
SMART
You can connect up to four IsoMatch Eye cameras and easily switch between the cameras with the remote control box which is standard included.
EFFICIENT
Full control and overview of entire machine operation from every side you want.
EASY
Night vision by integrated LED’s which increases the safety when reversing the machine or manoeuvring around obstructions.
The IsoMatch Grip is an ISOBUS auxiliary device developed for great operator comfort and efficient machine control. Its ergonomic shape and the complete freedom of assigning and controlling a total of 44 implement functions from one device are unique in the market today. From your fingertips you have endless possibilities to operate all machine functions as desired. And assignments are saved per machine making it even more applicable to your needs.
GEOSEED increases the yields of row crops and ensures maximum efficiency. Seeds are placed perfectly in line and in relation to each other.
GEOSEED is offered in two different levels:
GEOSEED Level 1 is the synchronization in the machines working width. This improves the distribution of seeds up to perfection in parallel or diamond pattern: Positive effects are the best use of nutrients, water and sun. Also the wind and water erosion is decreased.
GEOSEED Level 2 is the synchronization in the whole field. This is the necessary requirement for interrow cultivation, also across the seeding direction. GEOSEED is the only system in the world, that makes this mechanic weeds control possible!
Teknisk specifikation
Teknisk specifikation
Download brochureModel | Optima TFprofi | |
---|---|---|
Ramme type | Bugseret fold | |
Arbejdsbredde (m) | 6.00 | |
Antal HD-II sårækker | 8 | |
Rækkebredde HD-II række (cm) | 70 - 80 | |
Transportbredde (m) | 3.00 * | |
Mekanisk drev af række | Tilvalg | |
e-drive II, klar til GEOSEED® | Tilvalg | |
Ventilator drev 1000rpm | Tilvalg | |
Blæserdrev 800 rpm | Standard | |
Hydraulisk blæserdrev | Tilvalg | |
Træk | 40 mm Ringeøje ** | |
Dæk 12,5/80-18 | Standard*** | |
Hydraulisk betjent markør | Standard | |
Monteret gødningsspreder | Tilvalg | |
Maksimalt antal rækker med monteret gødningsspreder | 8 | |
Mekanisk drev til gødningsspreder | Standard | |
Elektrohydraulisk drev af gødningsspreder | Tilvalg | |
Gødningstankens kapacitet i liter | 2,000 | |
Påfyldningssnegl | Tilvalg | |
Vejeceller | Valgmulighed | |
Mikrogranulat-applikator mikro-drill | Valgmulighed |
* 3,50 m hvis 80 cm rækkebredde
** Valgfri CAT III/CAT III N krydsaksel og K80 trækøje
*** Standardudstyr: 2 dæk, ekstraudstyr: 4 dæk
Teknisk specifikation
Teknisk specifikation
Download brochureWorking width/transport width |
6m/2.98m |
6.4m / 3.4m |
|
Number of rows |
8 HD sowing units |
8 HD sowing units |
|
Row width (cm) |
70/75 |
80 |
* 3,50 m hvis 80 cm rækkebredde
** Valgfri CAT III/CAT III N krydsaksel og K80 trækøje
*** Standardudstyr: 2 dæk, ekstraudstyr: 4 dæk
