Kverneland 850 Pro

A new flywheel configuration has been developed for the Kverneland 853 Pro and 856 Pro.

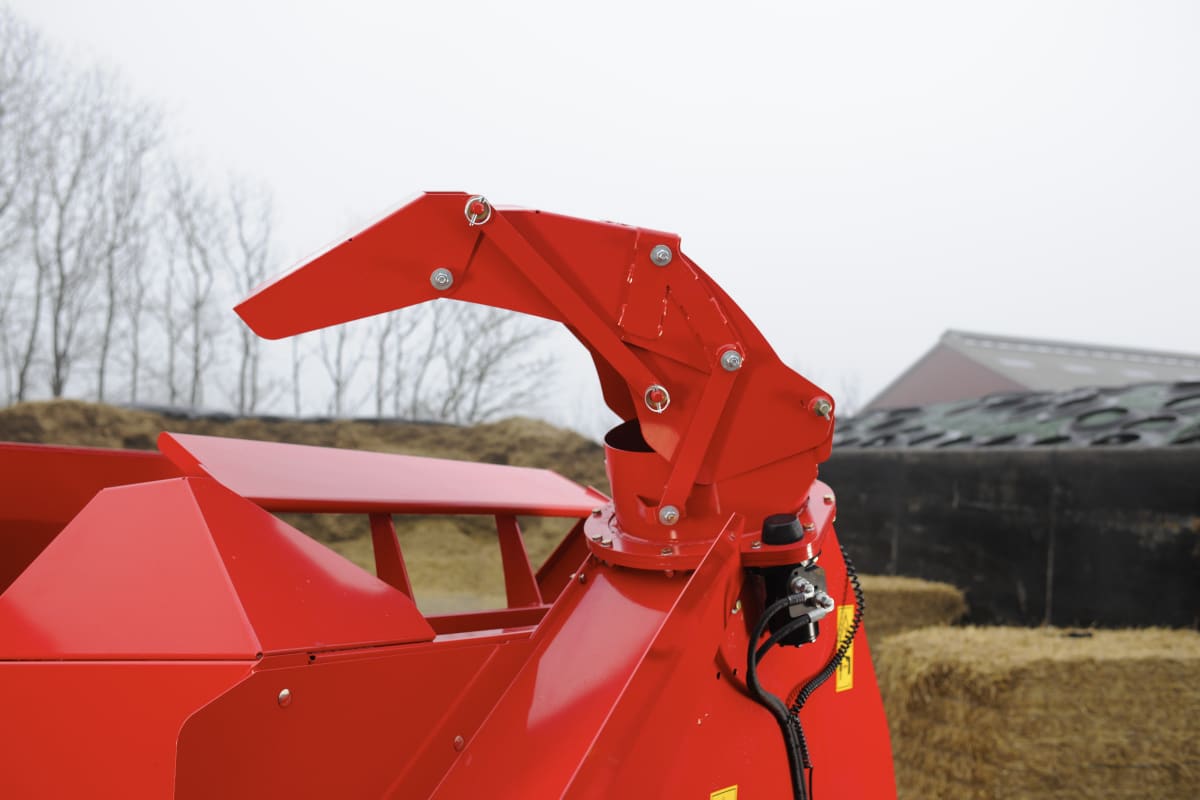

• The features in construction designed 3-stage swivel chute enables the perfect combination of extensive blowing distance and feeding into high troughs
• To maximise airflow the 1.55m diameter flywheel is fitted with 6 large front blower paddles.
• The flywheel features 3 main paddles for an increased intake of material from chamber to flywheel.
• The flywheel does not chop the straw, thus ensures virtual full length material suitable for bedding of covered yard areas.

• The Drum Feed Control System (DFCS) is an exclusive feature (patent pending), designed to handle even the most difficult material when feeding.
• It is a simple and reliable system, which includes a powerful electric cylinder and a comb positioned above the drum.
• During loading DFCS is engaged, which means that the comb is in a lowered position.
• This ensures that blockages of the flywheel is minimized during the loading and start up process.

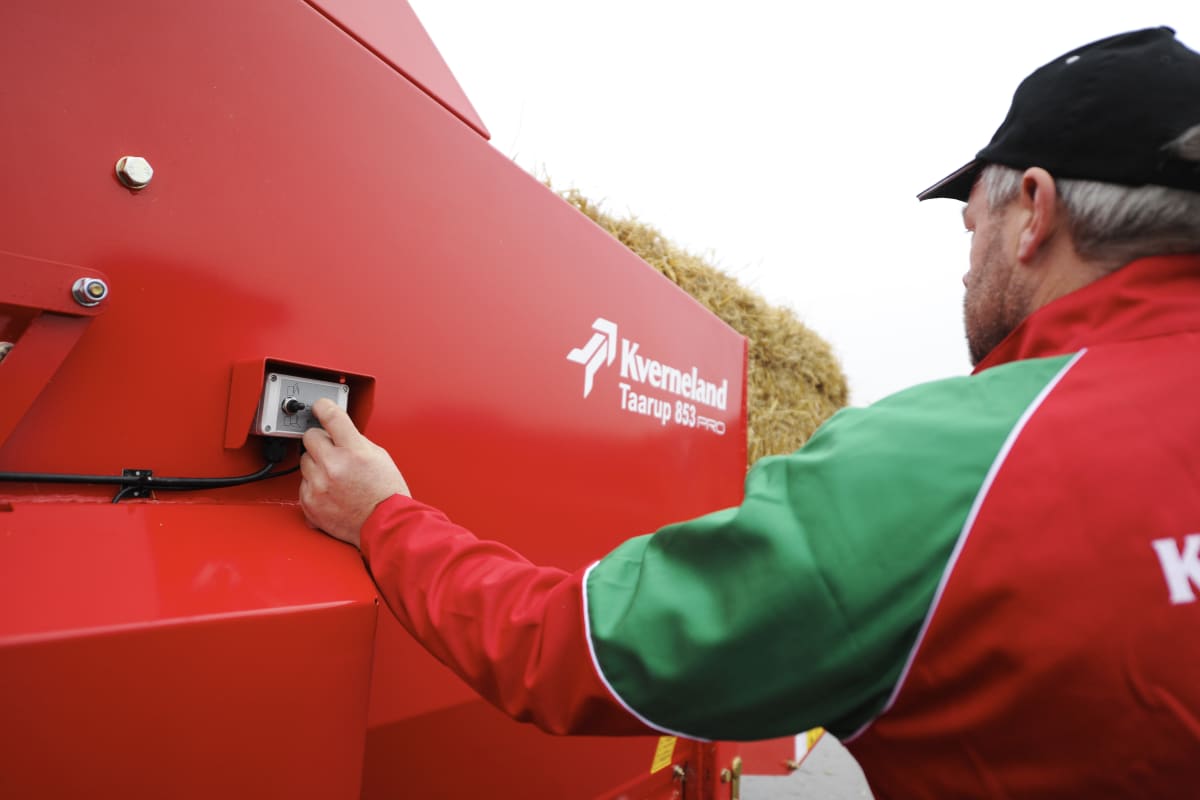

• Once the flywheel speed is at a sufficient level, all you need to do is to push a button and the DFCS ‘fingers’ will be gradually disengaged and open for full flow through the flywheel resulting in
• perfect flow.
• The progressive release of the ‘fingers’ offers a more gentle start, protecting the machine and minimizing the risk of blockages.
• A reliable and simple system with minimum maintenance!

• To provide the correct flywheel speed for bedding and feeding the Kverneland 853 and 856 are fitted with a two speed gearbox.

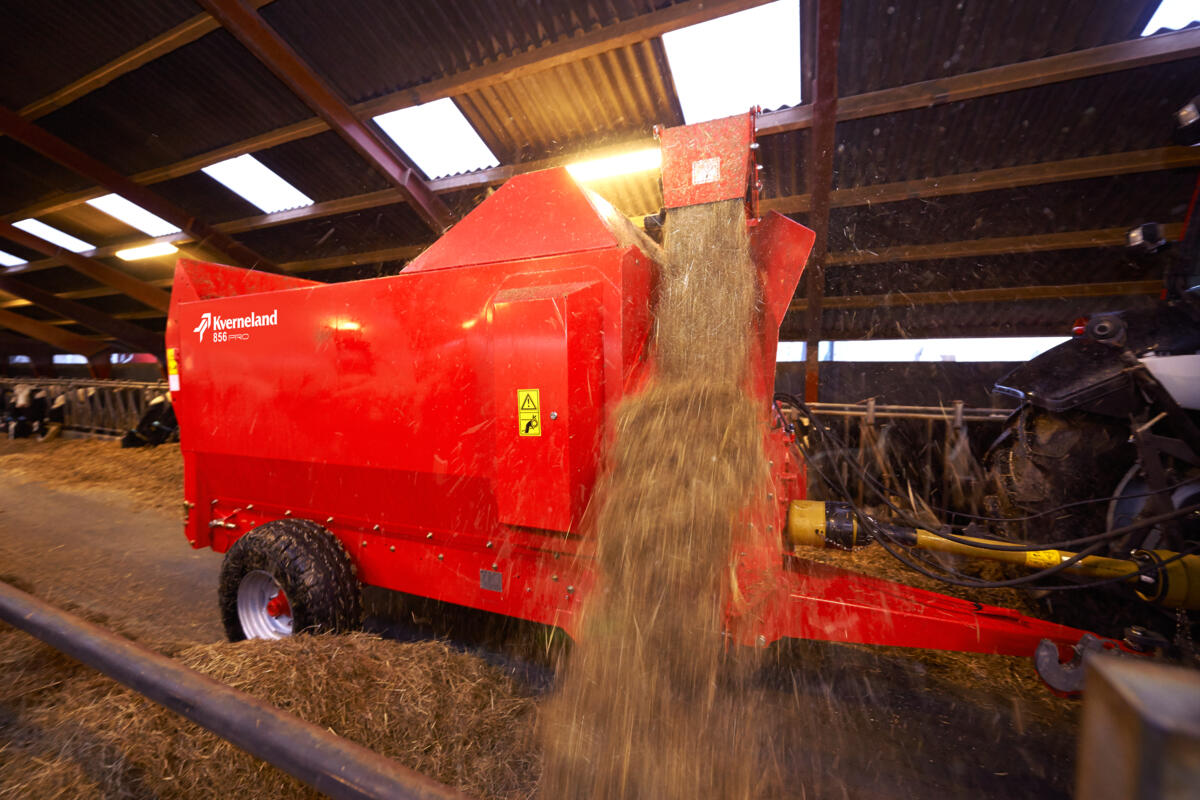

• At lower speeds the flywheel ensures a metered flow of silage or hay for feeding.

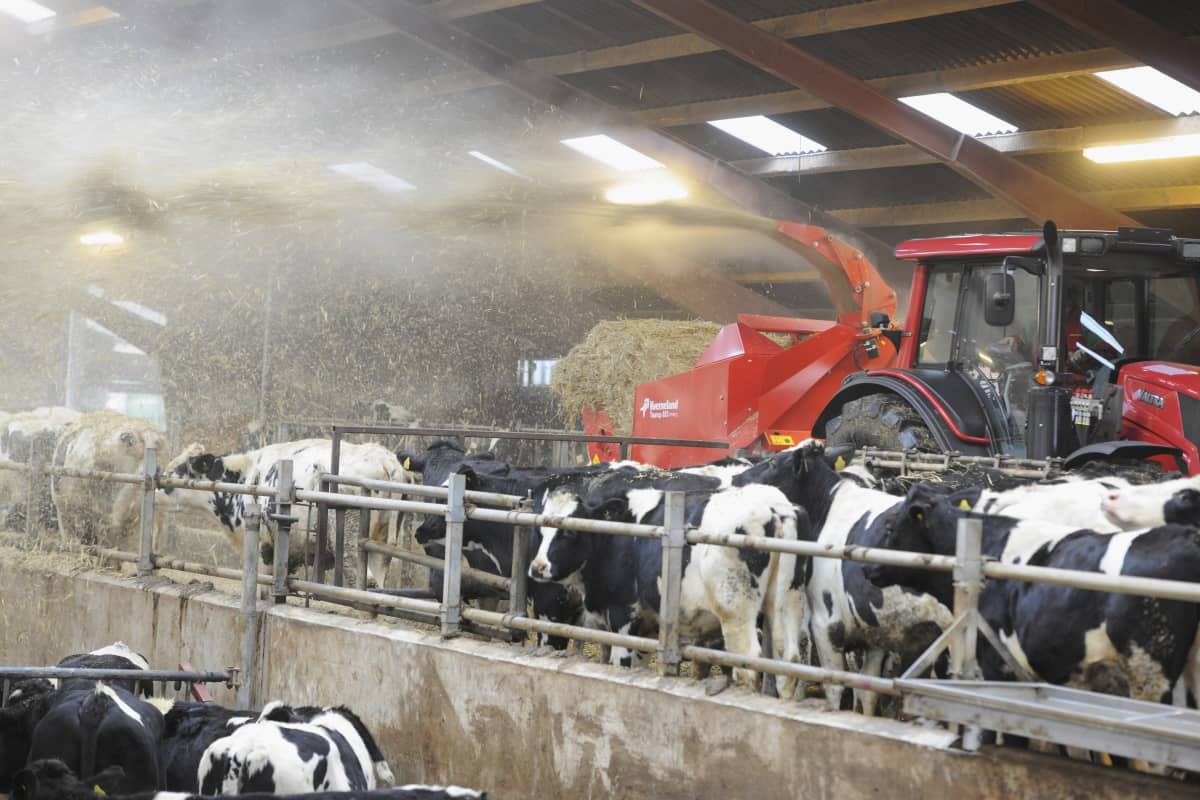

• At high speed a powerful blow for the most efficient distribution during bedding is ensured.
• The gearbox speed is adjusted via the handle on the side of the machine.

• The Kverneland 850 range includes a unique drum – knife configuration.
• Standard on models 853 & 856, the knives are mounted on angled rings so that they pass a fixed ‘comb’ on alternative sides.
• This ensures that materials are cut and fed into the flywheel chamber evenly, reducing the risk of blockage, offering even  discharge & leaving the drum and comb clean.
• The drum is fitted with 14 blades as standard, but will accept a further 28 blades according to material type – simply bolt them on in a matter of minutes.
• A patented system - the knives pass the fixed comb on alternative sides for a more even cut.

• The hydraulically operated rear door fitted to 800 series provides a self loading facility for easy loading of square and round bales.
• The rear door also offers the ability to carry a second round bale for increased capacity.
• A bale kit can be fitted to the end of the tailgate to ensure that the bales stay in position during operation.
• The size of the bale chamber makes it very easy to load the material with a loader - and two round bales can be loaded at the same time - saving time.
