Vendere -Tjekliste! -Er du klar til sæsonstart?
Nyttige tips og tricks til at få din vendere klar, så du får mest muligt ud af din sæson.
YOUR PARTS SPECIALIST
Find your local Kverneland dealer
Only Original Parts will keep your machine a Kverneland

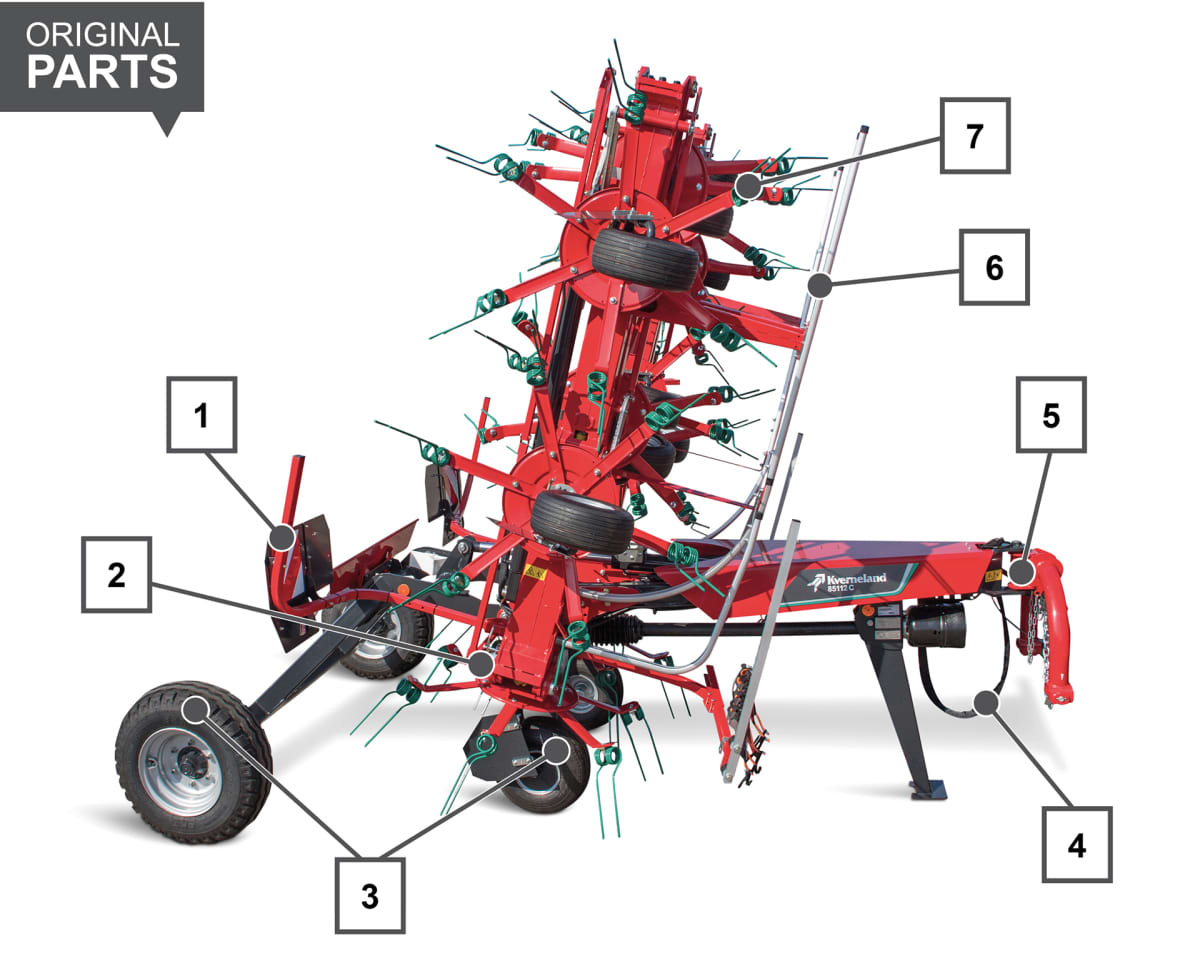

Kverneland-vendere er kendt for lav vedligeholdelse. Men alligevel så vær forberedt på den kommende sæson -Ved at give din Kverneland-vendere et sundhedstjek, så den sikre en toppræstation.

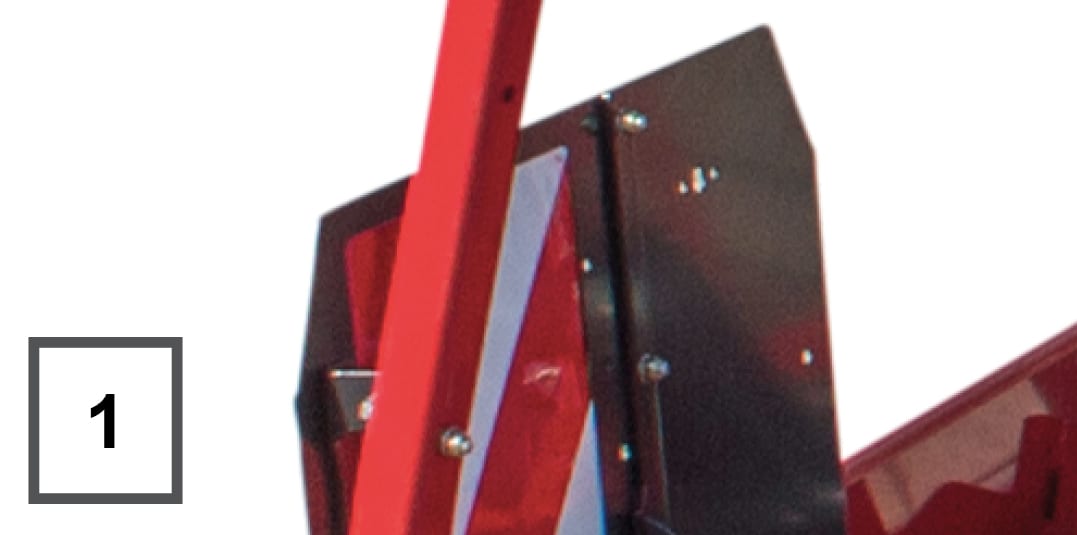

Check the condition and functionality of all Road lights. Repair/replace if necessary.

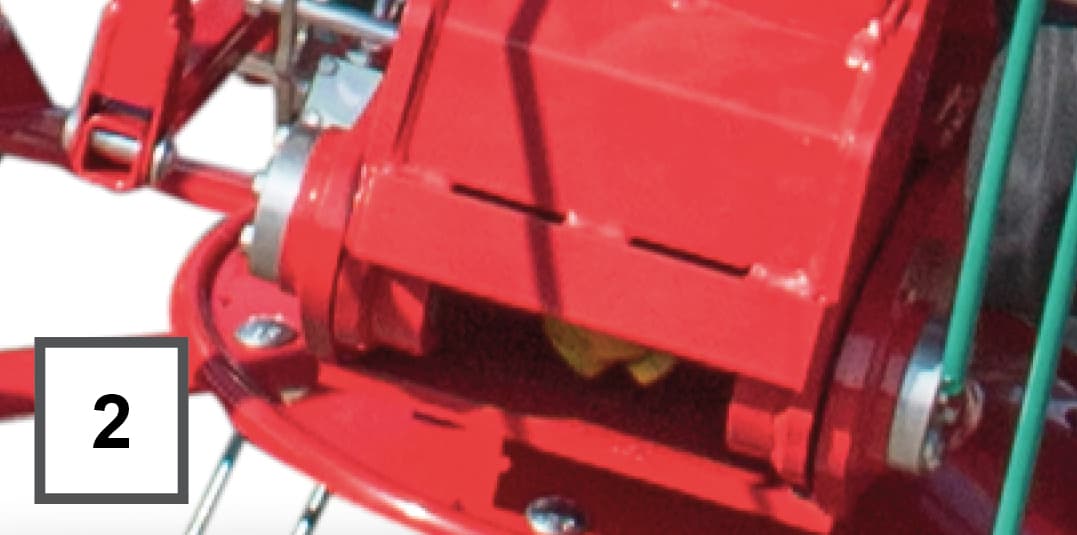

Check all steering and pivots points. Greasing if necessary.
Check the condition and pressures of all tyres. Replace or adjust if necessary.

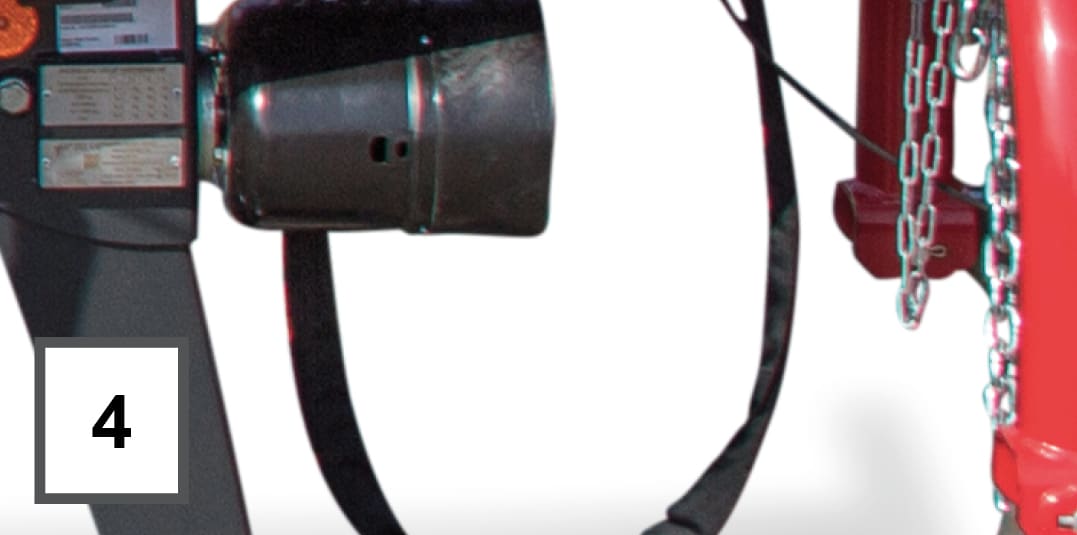

Check all hydraulic hoses and connections. Replace if necessary.

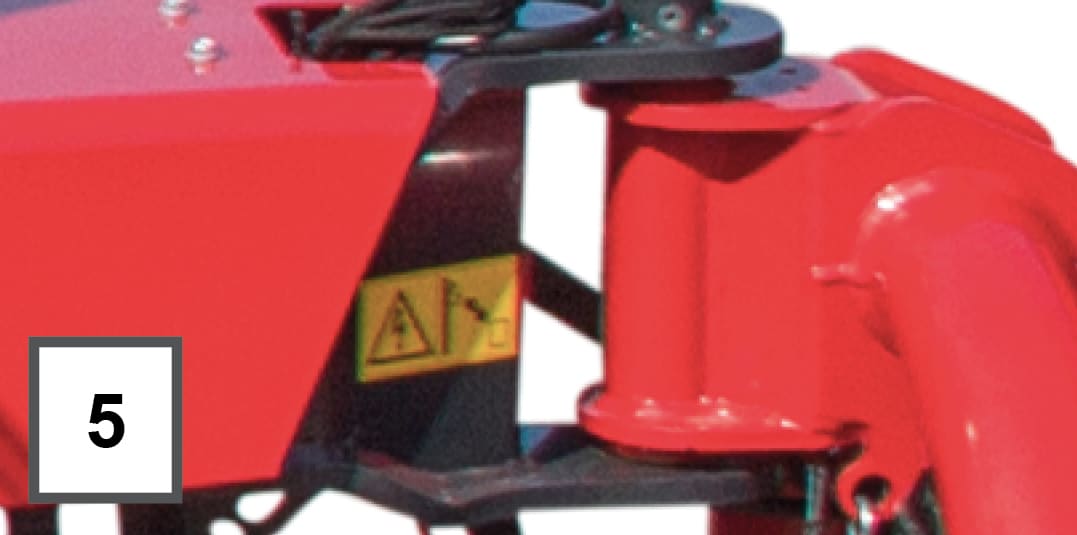

Make sure all PTO drive lines and joints are clean and lubricated.

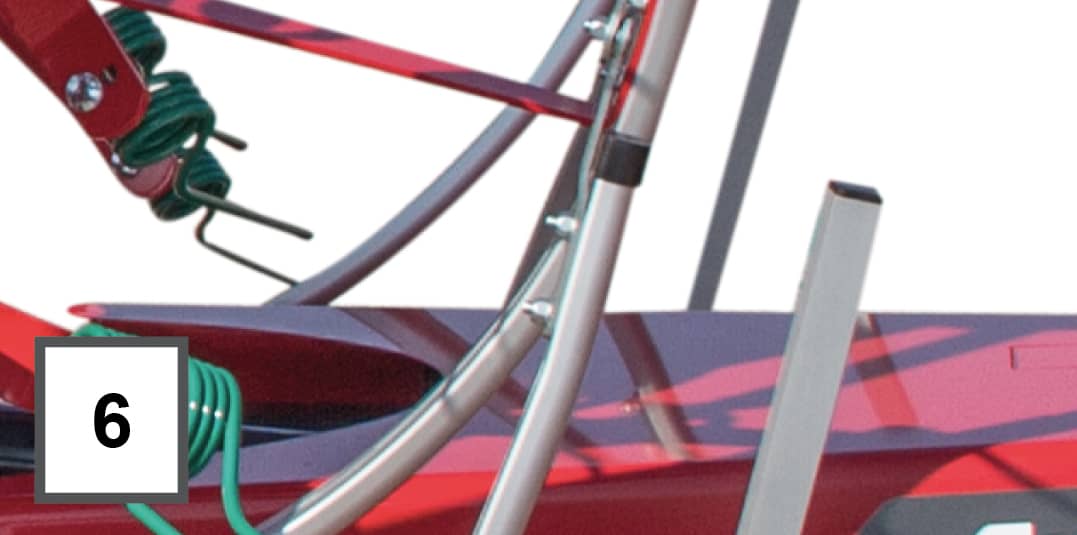

Ensure all safety guarding is fitted and functions correctly.

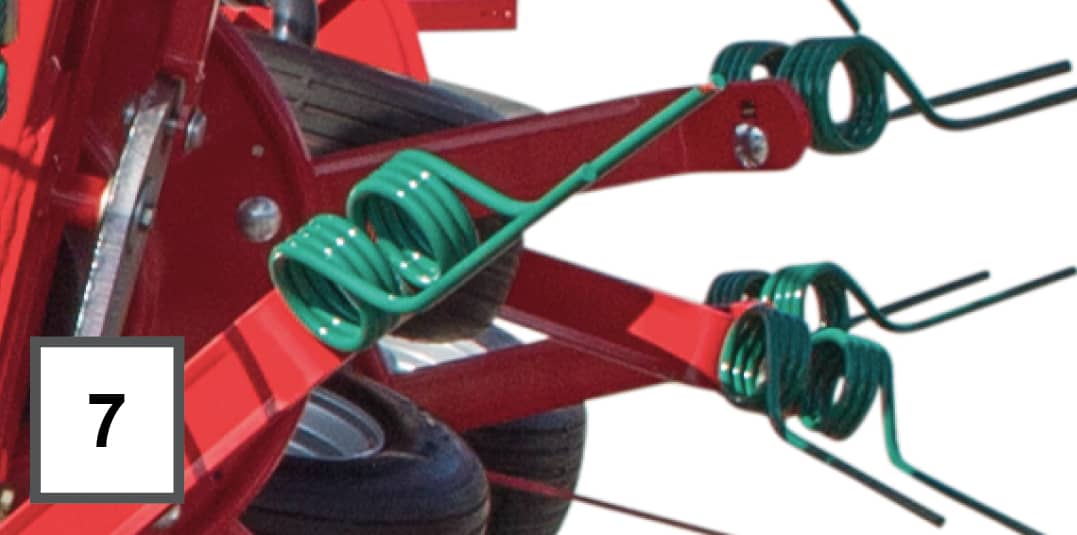

Check all Tines, safety fixings and Tine arms for wear or damage. Ensure all fixings are tight. Replace if necessary
Adjust the working angle to get the best results

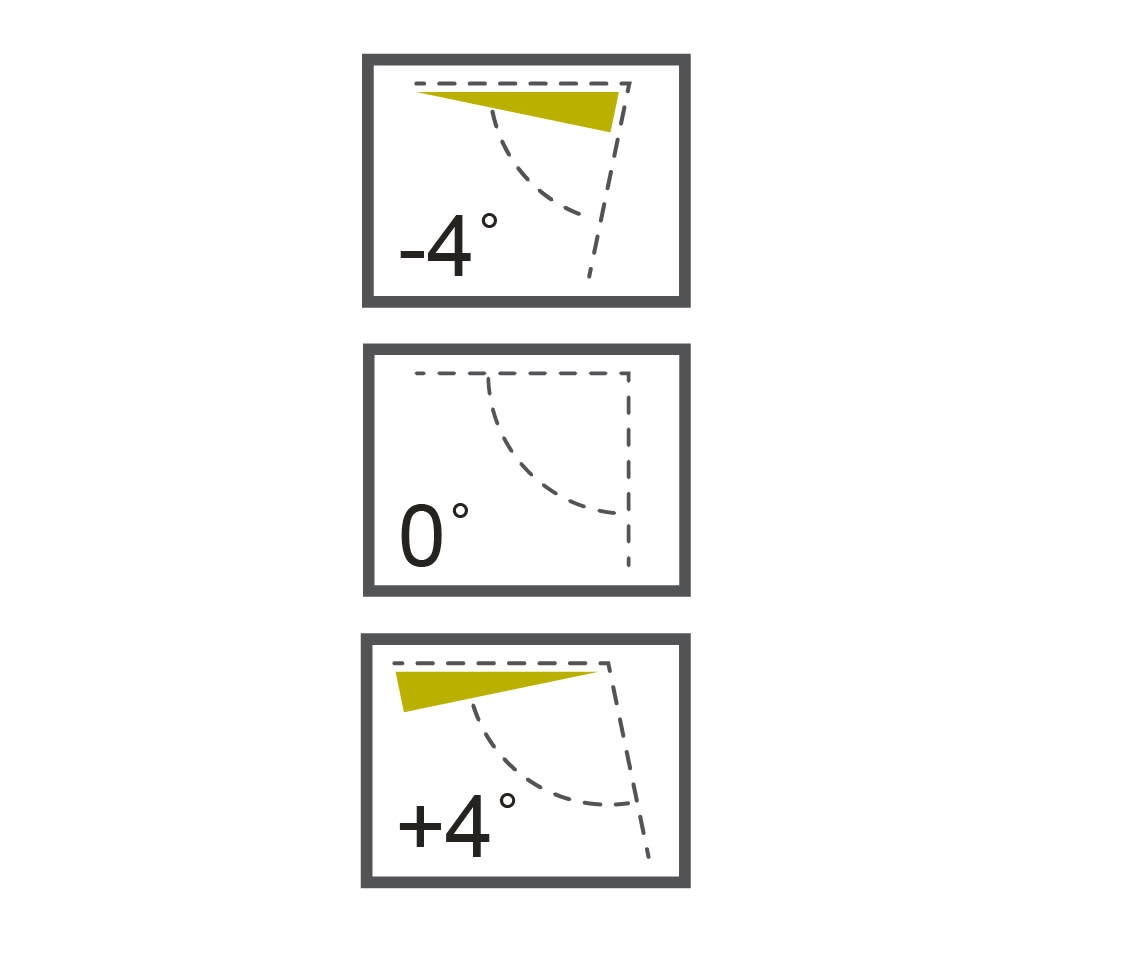

3-step Tine angle adjustment
By inserting a triangular washer between the tine and the tine arm – the Super-C tine can be locked in three alternative positions for optimum performance in different crop conditions.
SENSITIVES CROPS
Passive angle of -4°. Insert the washer with slope against the direction of rotation.
NORMAL CROP
Standard angle of 0 degrees. No washer required as per standard factory specification.
CONDITIONING FORAGE
Aggressive angle of +4°. Insert the washer with slope in direction of rotation.
TRIANGULAR WASHER
VF16644606.61

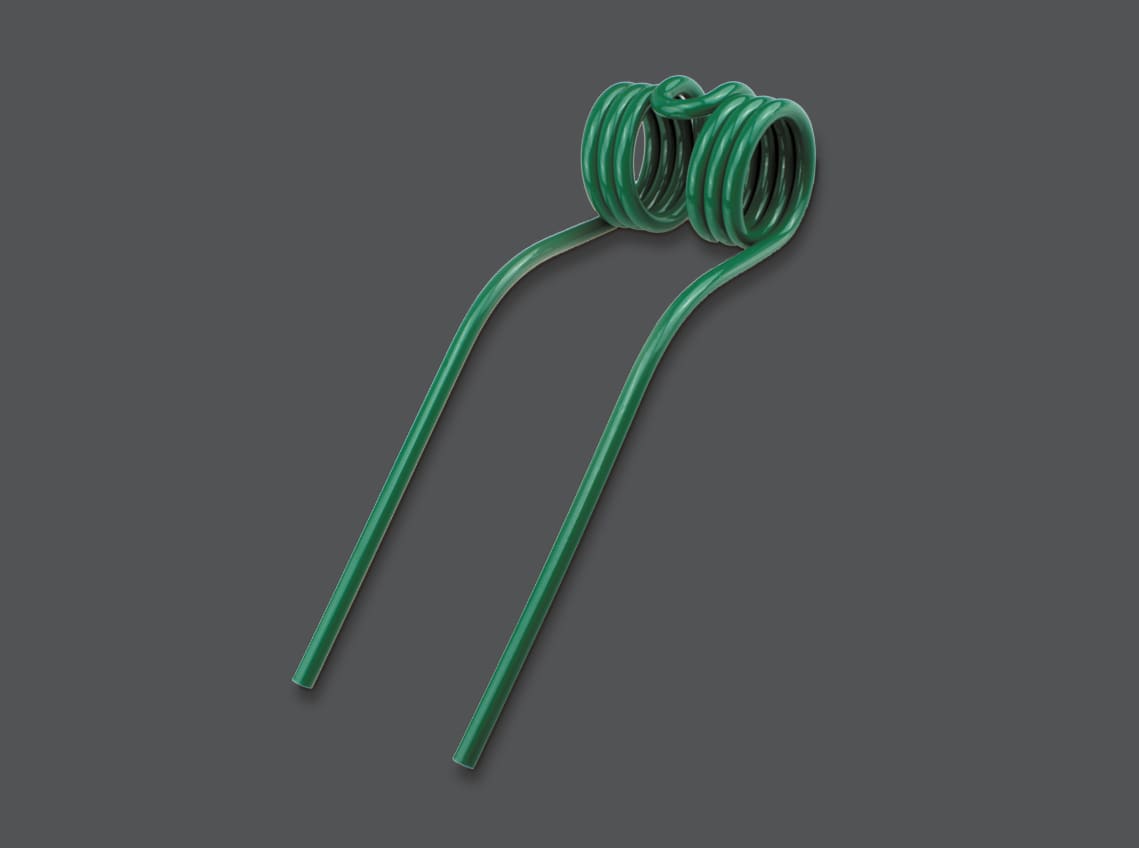

Super-C Tines
The Super-C Tine is made from 10mm Shot-blasted Coil spring steel and has two equal length legs to evenly spread the load. Being 20% greater in diameter than conventional designs – results in one of the most durable and flexible tines on the market.
| VF16644530.88 | VF16644530.88 | A13193588 | VF16607564.88 | |
| Tedders - Compact Line | ||||
|
8445 / 8452(T) 84600 / 8480 |
x | |||
| Tedders - Pro Line | ||||
| 8090CD | x | |||
|
8076CD / 84140C 8555 / 8576 8583 T / 85111 T |
x | |||
|
8590 / 85122 C 8568 / 8590 85112 |
x |

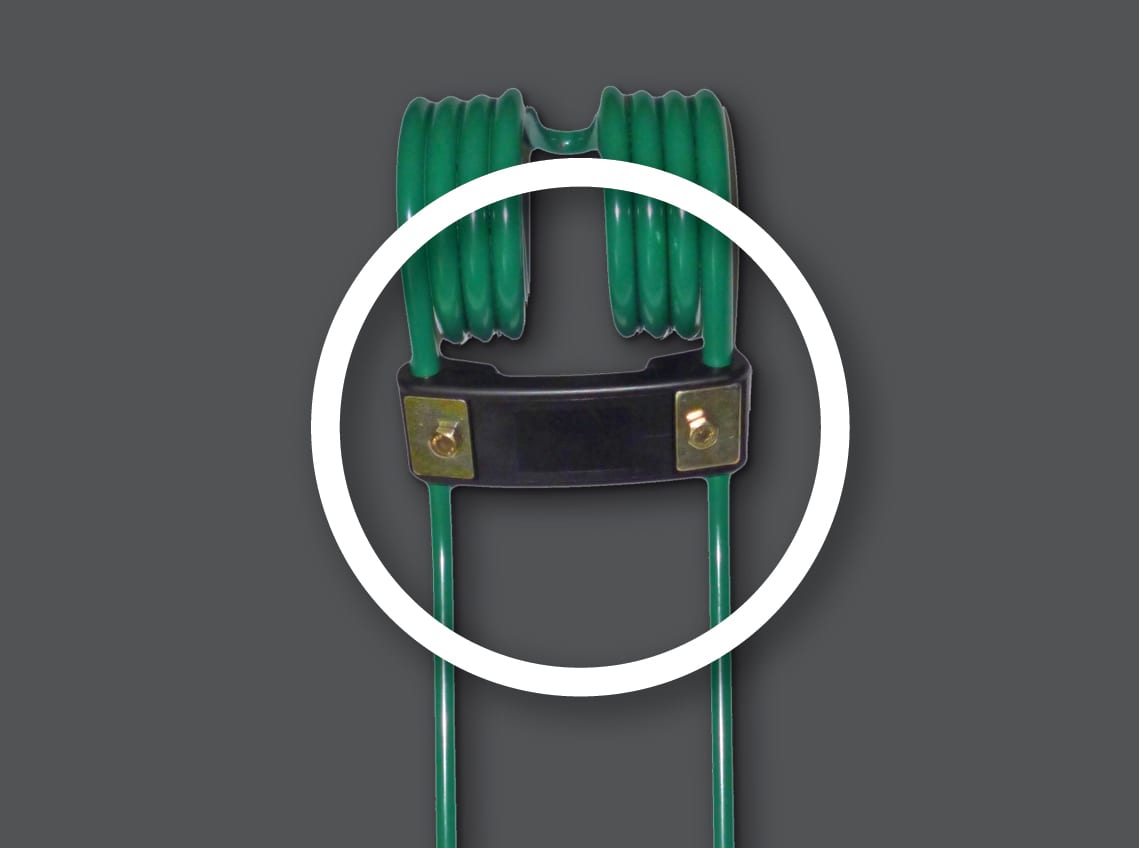

Tine safety

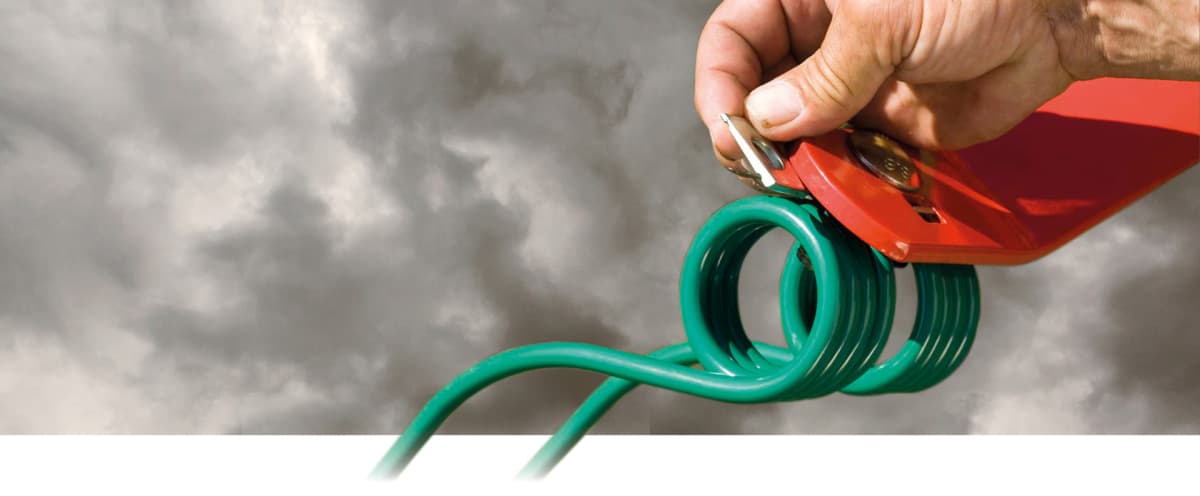

Damage to both livestock and machinery can be avoided by fitting Tine Safety clips to all tines. Mounted below the coil securing both tine legs - the safety device holds both halves of the tine together to prevent it from being lost in the crop.
| VF06580459 | VF06565406 | |
| Tedders - Compact Line | x | |
| Tedders - Pro Line | x |

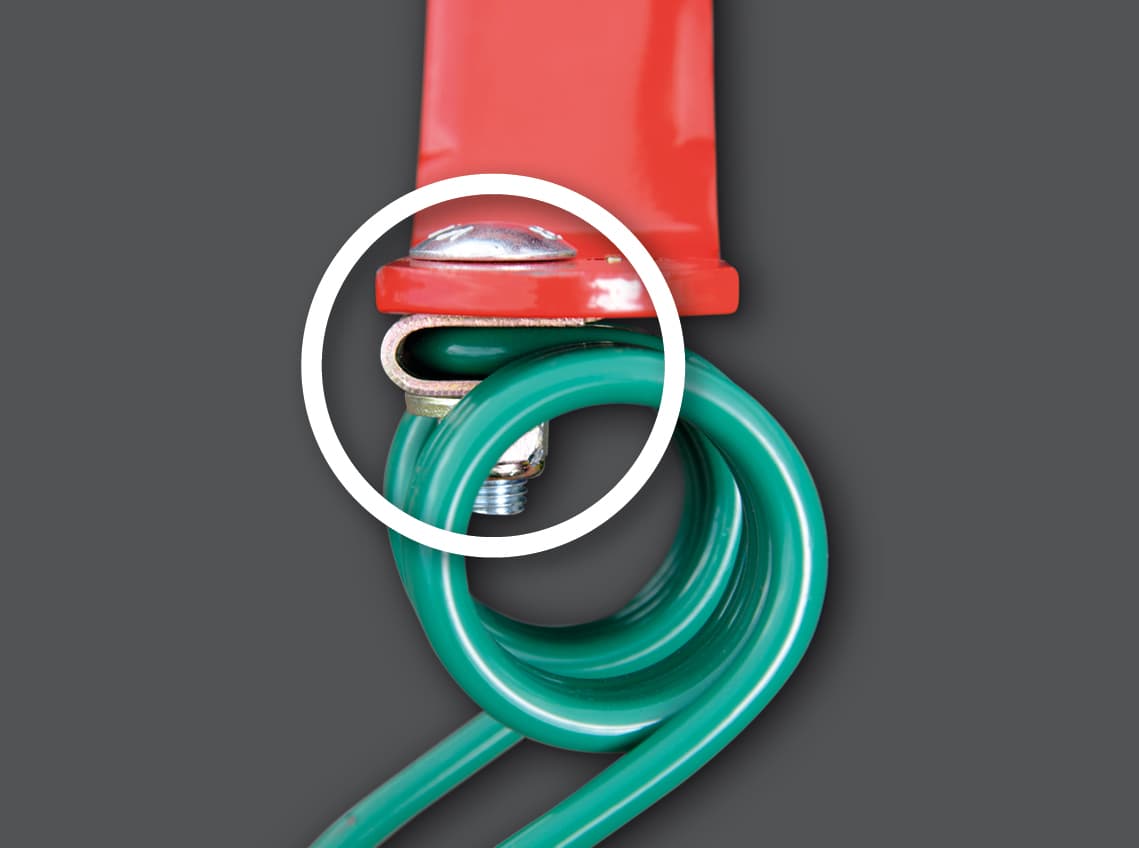

Tine fixing
Using the appropriate Fixing Kits, securely tightened at all times, will ensure the tines give maximum performance and keeps losses and downtime to a minimum. (*Can be used with triangular washers)
| A131835630 | A131835230 | VF06565744 | |
| Tedders - Compact Line | |||
|
8445 / 8452(T) 8460 / 8480 |
x | ||
| Tedders - Pro Line | |||
| 8090CD | x | ||
|
8076CD / 84140C 8555 / 8576 8583 T / 85111 T 8590 85122 C / 8568 8590 / 85112 |
x |
Be prepared – save valuable time when it counts
Intet er mere frustrerende end at gå i stå midt i marken. – at man mister tid og produktivitet.
Hvis du har et servicekit ved hånden, så er du i gang igen på ingen tid. Servicesættet indeholder tilstrækkelige sliddele såsom: tænder, tandholdere, dæk og monteringssæt mm., som får din maskine til at fungere igen, ved tilfælde af et nedbrud. Bed din forhandler om at bestille et servicesæt til din vendemaskine, og giv dig selv ro i sindet, når du er i marken.

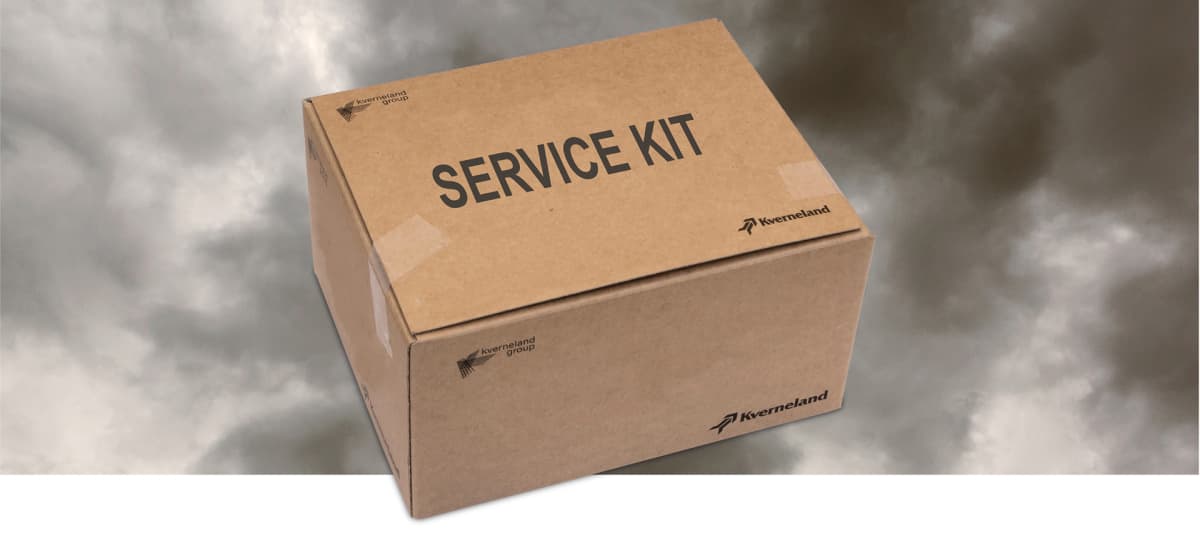

SERVICE KIT 85112/C
A145581132
| ARTICLE NUMBER | MODEL | QTY |
| VF06564096 | Cpl. Wheel 16x6x8 TT 10PR Silver rim | 1 |
| VF16642644 | Cpl. Wheel 18.5x8.5-8 TT 6PR Silver rim | 1 |
| A131159794 | Tine arm | 2 |
| A131393588 | Spring tine, 10 mm | 10 |
| A131835430 | Tine fixing set (ProLine) Bent | 10 |
| A100020200 | Agraset 106 (3 x 8 pcs.) | 1 |
