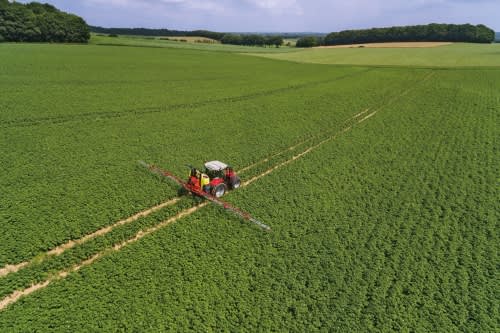

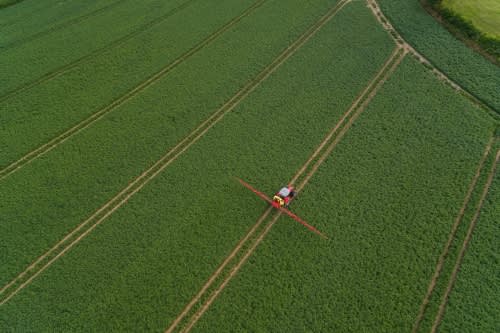

Kverneland iXter A

Spray Booms

HC 18-20-21-24-27-28-30m Vertical Folding Steel Boom

• The HC boom is the multi-talented boom in the steel boom range. The triangular steel construction and the unique anti yaw system allow high speed even in very difficult conditions. The HC boom is giving you the functionalities for one side folding, symmetrical reduction and asymmetrical reduction depending of the choice for the electric hydraulic command.

HOSA 15m "Z" Folding Aluminium Boom

• The HOSA spray boom is an unique boom of the aluminium boom family having an advanced Z-folding principle: the lateral movement enables you to quickly reduce boom width and pass obstacles in the field. The aluminium profile is desinged for maximum resistance. No welding provides remarkable strength, the anodised hardened surface protects against scratches and corrosion.

Fully Integrated Concept

• Full Integration Concept
  Nobody would expect all these functions so easily to hand. Better protection and integration is simply not possible. iXter B is setting a new standard!

• Easy Set Control Panel
  The Easy Set control panel makes life easy by its intuitive operation. The controls are separated to a suction and pressure side. The valves are well protected behind the door: this keeps your operational area free of dirt and pesticides.

• Easy Hitch Makes Life Easy
  There is enough space to connect the PTO shaft and the hydraulic and electric cables. An ingenious locking system secures the machine and shows the operator it has connected correctly.

• Easy Operation
  The graduated chemical inductor with a capacity of 20 litres is mounted on rails and fully integrated in the frame. In storage position the inductor is sealed against the top plate and no cover is needed. The rotating canister cleaning nozzle releases the water when pushed downwards. The circular rinsing system is no add on: it is part of the design! The standard return flow agitation with its unique agitation tube keeps the tank mixture agitated. The turbo agitation system (optional) allows powerful mixing during preparation of the mixture. This is especially helpful when powders are used or after sedimentation during a longer period of interruption.

Control Systems - NON ISOBUS

Remote Control EC: All in One Remote Control

• Spraying on/off functions including up to 7 sections
• Agitation shut off
• Pressure control
• Pre select hydraulic boom functions

FlowMate Control FMC: Basic Spray Computer

• Extremely simple to operate
• Very compact by integration of all spraying and hydraulic functions
• Integrated nozzle advice
• Field memory for 25 different fields

iXclean: Every Litre Counts

• Electrical Level Indicator
  An electrical level indicator provides actual tank volume to a spraying computer as well as via the external display on the Easy Set control panel.

• iXclean Comfort
  iXclean Comfort is a semi automatic valve control system. The combination of an electrical level indicator and suction valve provides operator comfort and accuracy: automatic fill stop when the programmed level is reached and remote control of all ENFO rinsing and priming functions out of your tractor cab! Simply prime the spray lines before you start and rinse them afterwards or even during an unexpected weather break, without stepping out of your cab!

• iXclean Pro
  Advanced solutions come from iXclean Pro, with fully automatic, electric valve management on ISOBUS sprayers. It means all functions can be controlled from the cab. Switching between filling, agitation, spraying, diluting, priming, rinsing and tank cleaning, is extremely easy: just push the button! In addition to auto filling, iXclean Pro offers also a fully automatic multi-step rinsing and cleaning program for the entire sprayer. Pushing one button a comprehensive cleaning process including all lines too starts, thatt akes just a few minutes and uses minimal amounts of clean water. It is so thorough, that residue levels after automated cleaning, are below 1%. iXclean Pro for filling or cleaning: making every litre count!

• ENvironmental FOcus (ENFO)
  ENFO priming and rinsing is standard on all our spray computers. This smart technology optimizes filling and cleaning of the spray lines. Accurate application, no waste of chemicals and saving water are the benefits for you and your environment.

Sprayer Features

• Starguide IV

Those who have used it will never go back. Starguide IV will change your spraying days forever: spray around the headland and the Starguide IV will control the spray sections automatically as you can cover the remainder of the field.

• Parking frame

A parking frame is available for easy hitching and storage of the sprayer.

• Filling

The optional 2 inch hydrant filling device allows filling under pressure at high capacity. A GEKA adapter for 1 inch filling is optional available. For external filling a 1,5 inch suction hose is optional available. If 2 inch filling is required a camlock adapter can be ordered.
