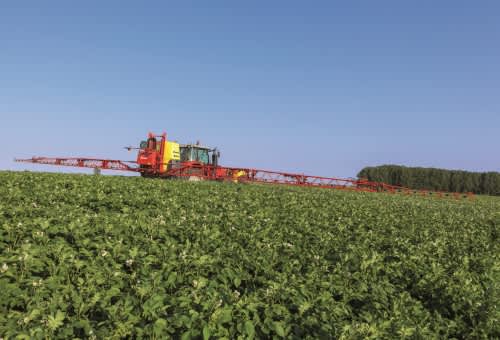

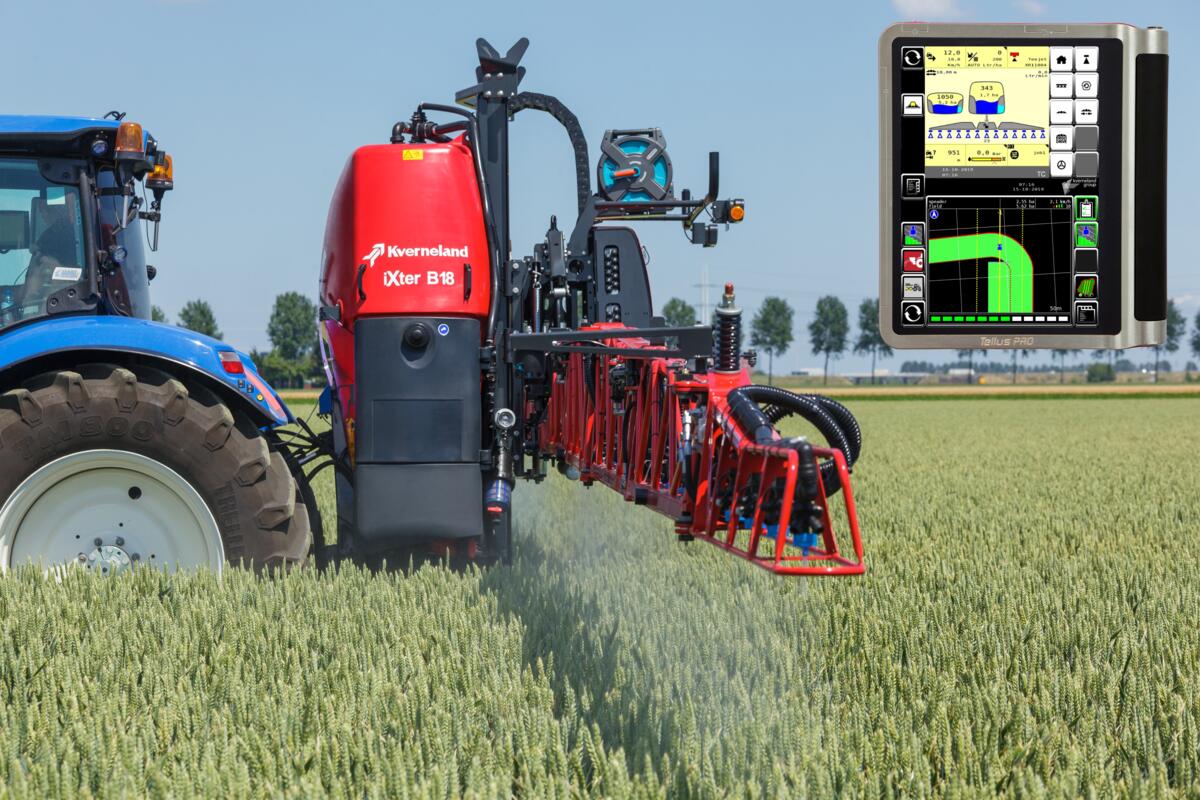

Kverneland iXter B

Mounted sprayer range with tank volumes from 1000 up to 1800 litres. Different boom types available from 15 - 30 metres.

The Power of Technology

The Kverneland iXter B mounted sprayer is the fruit of years of research and development in close collaboration with farmers: this is today the most advanced mounted sprayer range with focus on user friendliness and environmental protection. The iXter B range is available with four different tank volumes from 1000 up to 1800 litres and two boom alternatives (HOSA, HC) from 15 to 30m. Pumps are available with capacities of 150, 200 and 260 l/min. Liquid fertiliser resistant and capable of running dry without damage. Due to the Easy Hitch quick hitch, the gravity point of the sprayer is extremely close to the tractor for a maximum weight transfer. However, the hitching operation remains quick and easy. High tech features like iXclean, IsoMatch Tellus PRO, IsoMatch Tellus GO, IsoMatch GEOCONTROL, Boom Guide and a lot more features are available for more operator comfort.

The Advantages:

  • HC steel booms or HOSA aluminium spray boom available
  • Fully integrated concept, including Easy Set control panel
  • ISOBUS or non ISOBUS compatible regulations systems
  • iXclean: every litre counts!
  • Possible in combination with IsoMatch GEOCONTROL
  • Possible in combination with the iXtra front tank

Technical Specifications

iXter B10 B13 B16 B18
Nom. tank capacity 1000 (l) 1300 (l) 1600 (l) 1800 (l)
Max. tank capacity 1100 (l) 1450 (l) 1800 (l) 2000 (l)
Chemical inductor 30 (l) 30 (l) 30 (l) 30 (l)
Clean water tank 180 (l) 180 (l) 180 (l) 180 (l)
Hand wash tank 18 (l) 18 (l) 18 (l) 18 (l)
Pumps 150/200/260 (l/min) 150/200/260 (l/min) 150/200/260 (l/min) 150/200/260 (l/min)
Regulation Systems EC/FMC/iM Tellus/iM Tellus GO EC/FMC/iM Tellus/iM Tellus  GO EC/FMC/iM Tellus/iM Tellus GO EC/FMC/iM Tellus/iM Tellus GO
iXclean iXclean Comfort or Pro iXclean Comfort or Pro iXclean Comfort or Pro iXclean Comfort or Pro

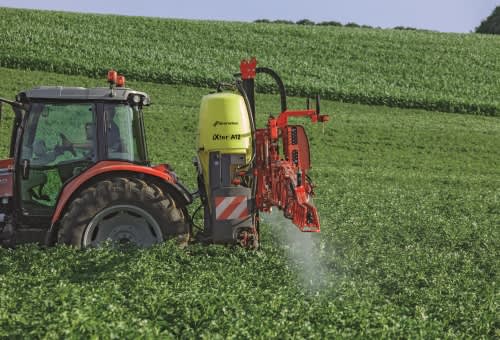

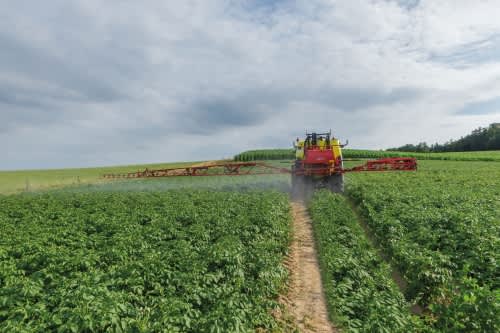

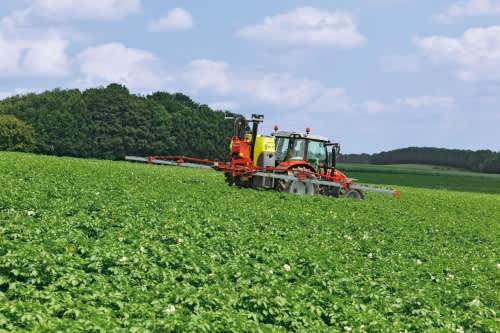

Spray Booms

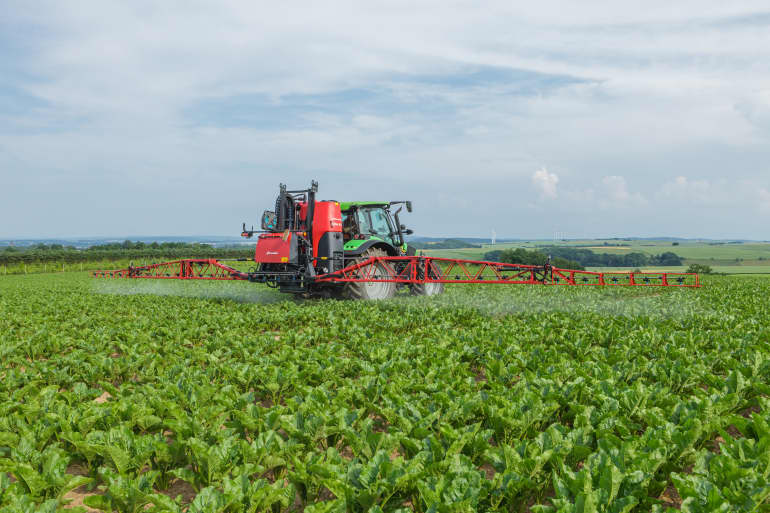

HC 18-20-21m Vertical Folding Steel Boom

The new generation HC booms is a multi-talented spray boom range. The triangular steel construction allows high speed even in very difficult conditions. The boom is extremely strong and reliable. Using Domex steel for the boom it became stronger, but lighter to contribute to the lower weight of the machine.

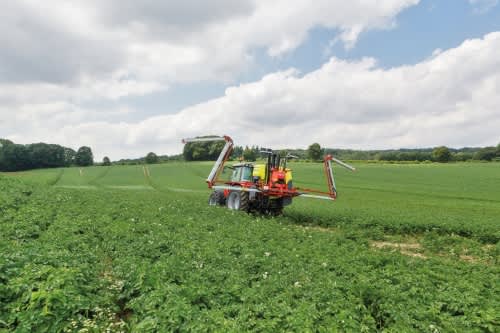

HOSA 12 and 15m "Z" folding Aluminium Boom

The HOSA is an unique boom having an advanced Z-folding principle: the lateral movement enables you to quickly reduce boom width and pass obstacles in the field. The aluminium profile is designed for maximum resistance. No welding provides remarkable strength, the anodised hardened surface protects against scratches and corrosion.

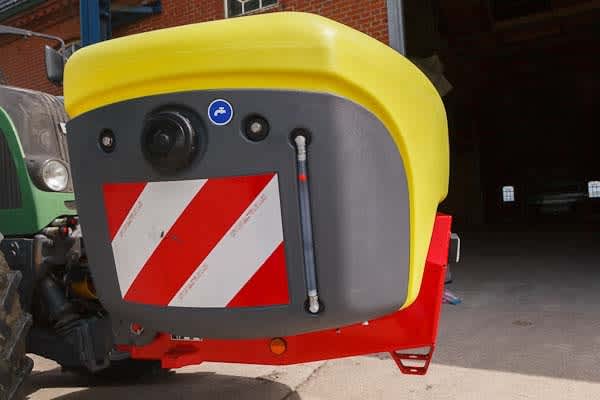

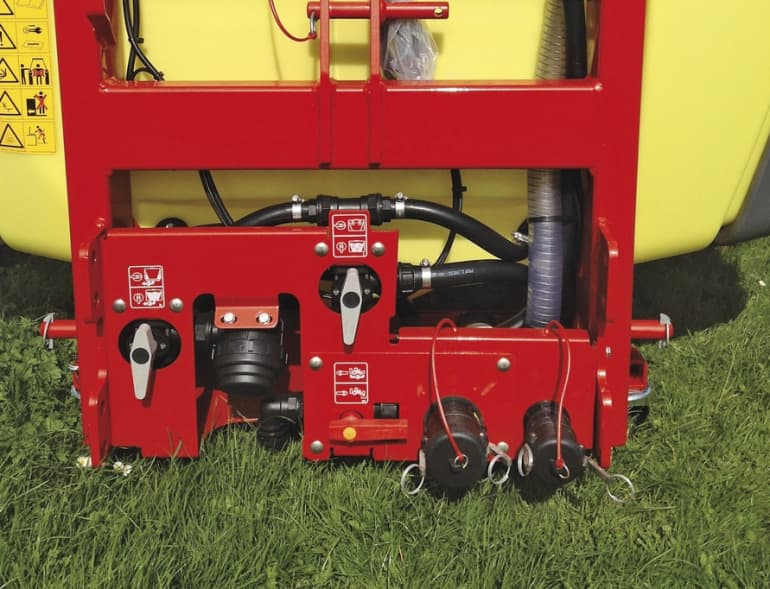

Fully Integrated Design

Fully Integrated Design

The iXtra offers you a completely integrated concept. The two clean water tanks with level indicators are part of the design, as well as the quick hitch system and control panel.

Easy Set Control Panel

The valve panel on the front tank is used for draining, agitation and cleaning. An electric pump guarantees mixing and cleaning, independently from the rear sprayer. You can select the front tank from the cab or throught the Easy Set valve panel on the iXter B sprayer.

Easy to Fit, Simple to Unhitch

Without a front PTO shaft or hydraulic hoses, hitching the iXtra is extremely simple: it uses only two hoses with KAMlock connections and an electrical cable - it really is that simple!

Easy Operation

The iXtra front tank uses the functions of the iXter B sprayer when filling and spraying. This avoids the need - or additional cost - for a separate induction hopper or spray pump for the front tank. All the necessary controls are conveniently located on the sprayer and are operated from the Easy Set valve panel on the iXter B.

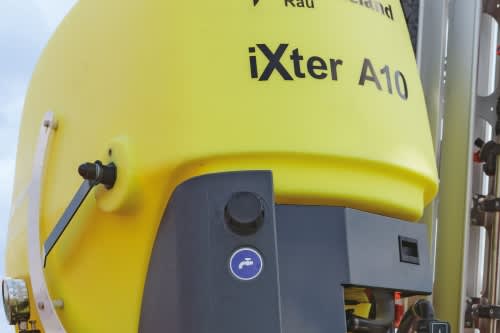

iXclean: Every Litre Counts

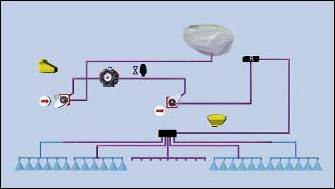

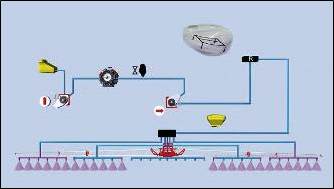

  • ENviromental FOcus (ENFO)

ENFO priming and rinsing is standard on all our spray computers. This smart technology optimizes filling and cleaning of the spray lines. Accurate application, no waste of chemicals and saving water are the benefits for you and your environment.

  • Rotating level indicator

A rotating level indicator provides the actual tank volume.

Other Sprayer Features

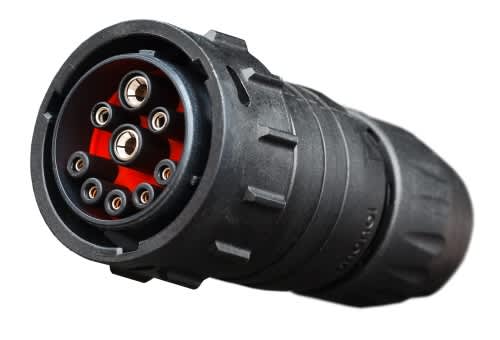

  • ISOBUS intelligence (FMA regulater only)
    You are ensured of the ISOBUS compatibiliy from tractor to the sprayer and sprayer to tractor, meaning that all data collection from your machine(s) is centralised and can be easily transferred to your Terminal (e.g. IsoMatch Tellus) in your tractor cabin. Easy plug and play!

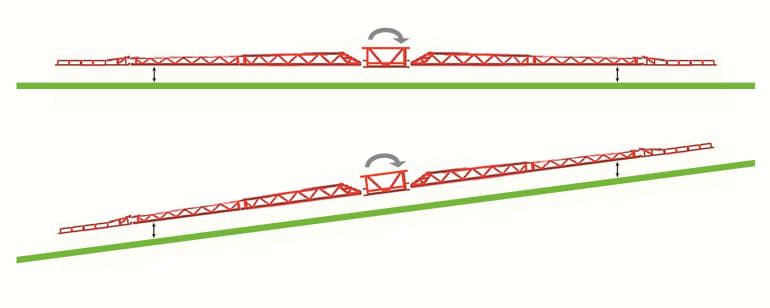

  • Boom Guide Comfort
    Two ultrasonics sensors on the boom can control the spray height via the central slope correction and boom lift functions. This cost effective system is suited to gentle slopes and uneven crop conditions.

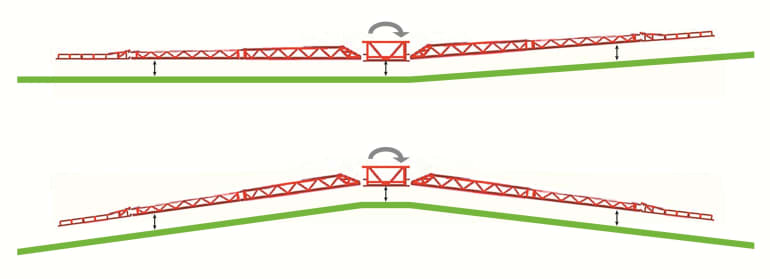

  • Boom Guide Pro
    This advanced system used three ultrasonic sensors to control left- and right-hand boom sections independently for the ultimate guidance in the most challenging field conditions. It can deliver positive and negative lateral movement on each side of the boom to follow the contours in every condition!

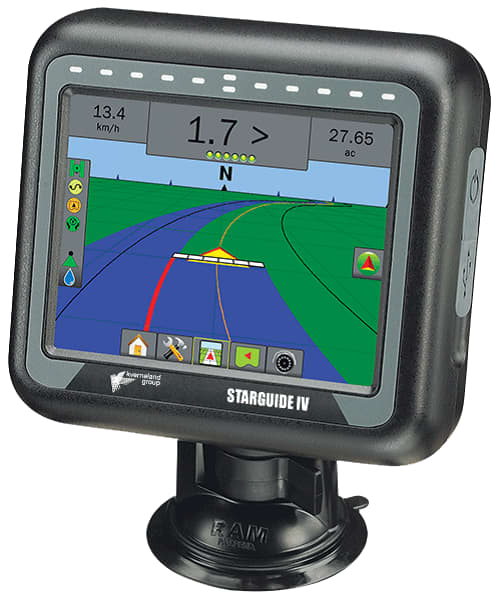

  • Starguide IV: Automatic GPS section control and guidance by D-GPS
    Those who have used it will never go back. Starguide IV will change your spraying days forever: spray around the headland and the Starguide IV will control the spray sections automatically as you can cover the remainder of the field.

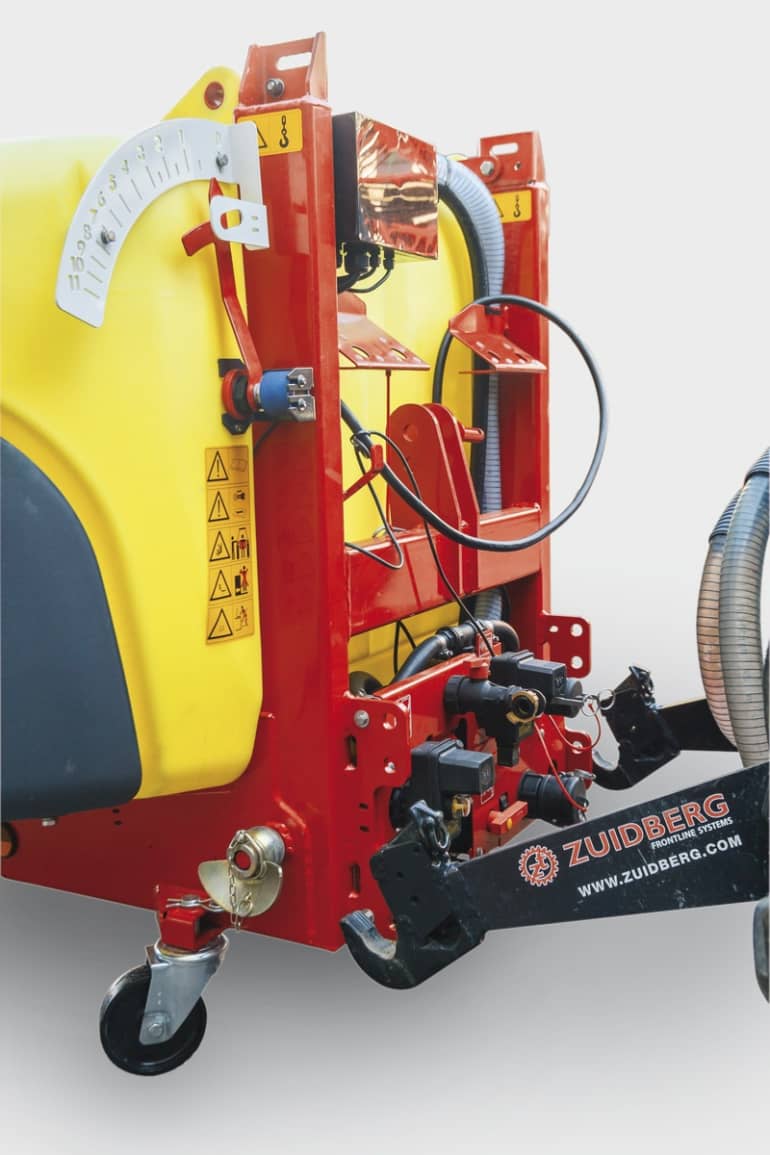

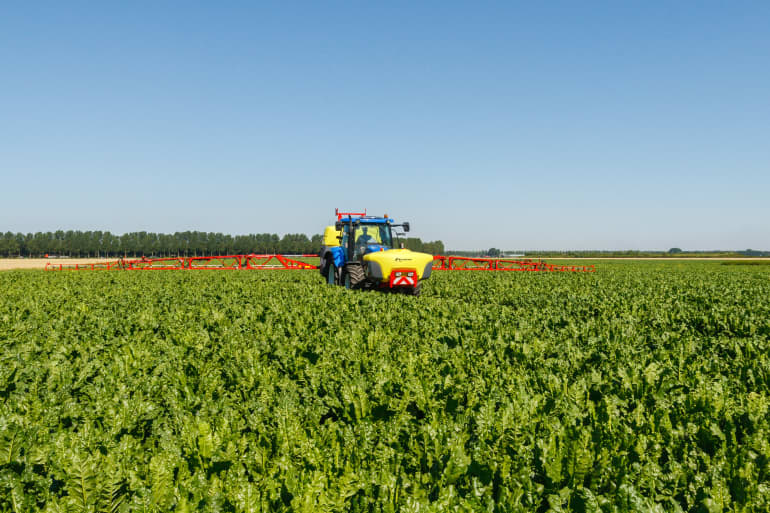

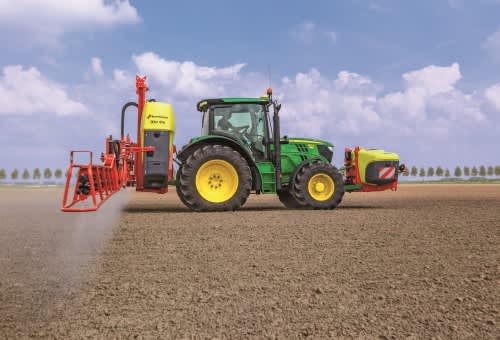

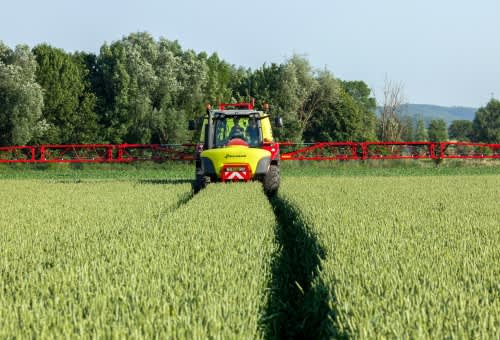

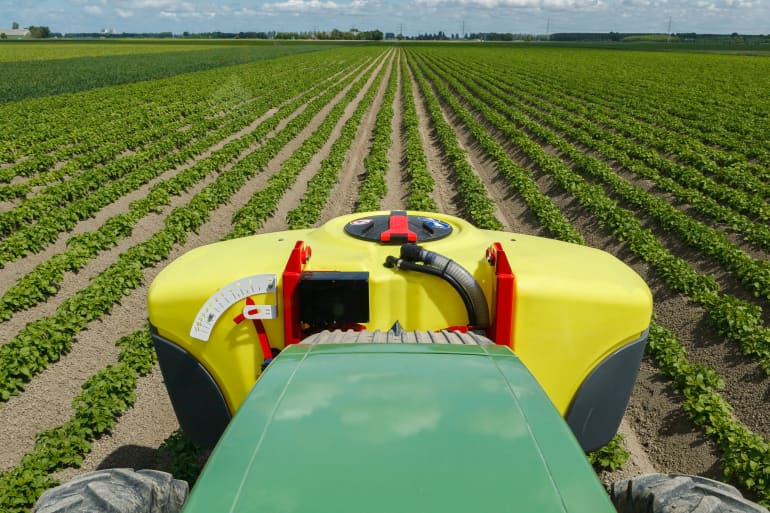

iXtra Front Tank

Dual Tank Strategy

The innovative iXtra concept offers much more than just extra tank volume. In combination with the iXter B mounted sprayer, the iXtra front tank provides a total volume of around 3000 litres, making the iXter-iXtra combination a serious alternative to a self propelled sprayer. With tractors able to carry much higher loads on their rear linkages, the need for ballast weight on the front of the tractor is essential. With a nominal volume of more than 1100 litres, the iXtra is that front end weight, adding stability to your tractor, but only when needed!

  • One-tank approach: filled with spray liquid it boosts overall tank capacity by 60%.
  • Two-tank approach: filled with two different tank mixes, the front and rear tanks can be used as two independent spray tanks.
  • Reservoir approach: filled with clean water the iXtra front tank can be used as a reservoir for later use, for example in another field or crop.

Easy to Fit, Simple to Unhitch

The iXtra front tank used the functions of the iXter B sprayer when filling and spraying. This avoids the need for a separate induction hopper or spray pump for the front tank. Without a front PTO shaft or hydraulic hoses, hitching and unhitching the iXtra is extremely simple: it uses only two hoses with KAMlock connections and an electric cable - it really is that simple!

Control Systems - NON ISOBUS

Remote Control EC: All in One Remote Control

  • Spraying on/off functions including up to 7 sections
  • Agitation shut off
  • Pressure control
  • Pre select hydraulic boom functions

FlowMate Control FMC: Basic Spray Computer

  • Extremely simple to operate
  • Very compact by integration of all spraying and hydraulic functions
  • Integrated nozzle advice
  • Field memory for 25 different fields

iM FARMING

Smart efficient easy farming

IsoMatch GEOCONTROL

Lavet til smart, effektivt og nemt landbrug

IsoMatch GEOCONTROL er et avanceret software-program inden for IsoMatch Tellus og IsoMatch Tellus GO+, der hjælper dig med at styre alle ISOBUS kompatible Kverneland Group maskiner såsom sprøjter, spredere og såmaskiner! Kombineret med en GPS-modtager opfylder den fremtidens behov med hensyn til nemt, smart og effektivt landbrug!

More about IsoMatch GEOCONTROL >

IsoMatch-GEOCONTROL-Field

ISOBUS

Når der besluttes, hvilket udstyr der skal købes, er det ikke altid let at finde den optimale løsning på det brede marked, som der tilbydes i dag. Teknologien udvikler sig hurtigt, da vores traktorer og redskaber er mere og mere udstyret med højteknologisk elektronik. Vi forstår denne kompleksitet og er forpligtet til at give dig nemme landbrugsløsninger. derfor er disse omkostningseffektive ISOBUS Universal Terminals, IsoMatch Tellus PRO og IsoMatch Tellus GO+ lavet til dem der ønsker en nem og effektiv maskinstyring.

More about ISOBUS Universal Terminals >

IsoMatch Tellus PRO

Med sine avancerede hardware og softwarefunktioner leverer IsoMatch Tellus PRO den optimale præcisionslandbrugsløsning til et alt-i-et kontrolsystem i dit traktorførerhus.

IsoMatch Tellus PRO er centrum for tilslutning af alle ISOBUS maskiner og en platform til kørsel af  præcisionslandbrugsapplikationer. Det giver alt, hvad en landmand har brug for, for at få mest muligt ud af sine maskiner og afgrøder, samt med omkostningsbesparelser i gødning, kemikalier og frø ved automatisk sektionskontrol og variabel satskontrol. Med den unikke dobbeltskærms funktion giver det mulighed for at se og styre to maskiner og processer samtidigt.

IsoMatch Tellus GO+

Arbejd nemt, vær i kontrol.

IsoMatch Tellus GO+ er specielt udviklet til at styre maskinen på en enkel måde. Landmanden har fuld kontrol over maskinen på præcis den måde, han ønsker. Maskinen kan nemt sættes op med de bløde taster via 7" touch skærm og optimal kontrol under kørslen skal du bruge de hårde taster og drejekontakten. det har aldrig været så nemt at styre redskabet.

Det kan være dit første skridt ind i præcisionslandbrug, aldrig har det været så let.
IsoMatch Tellus GO+ gør det nemt at styre enhver ISOBUS maskine fra dit førerhus. IsoMatch GEOCONTROL giver dig mulighed for at opnå hørere udbytte, lavere omkostninger og gøre dit arbejde meget lettere. Denne licensnøgle er opdelt i to dele, sektionskontrol og variabel ratekontrol, som er tilgængelig fra IsoMatch Shop. Nu kan du købe den specifikke funktionalitet, du har brug for.

More about IsoMatch Tellus GO+ >

IsoMatch InLine

With manual guidance you are perfectly on track.

The IsoMatch InLine is a light bar which allows easy manual guidance. It is the perfect assistant to get you as close as possible to your desired A-B line. Mounted in the line of sight, you can easily see the distance from the A-B line and to which direction you should steer for the ideal position. The display of the IsoMatch InLine also displays the status of the machine sections, which adds more comfort of use. The LEDs can be dimmed for night operation.

SMART
Distance to A-B line with LED indication and a numeric display

EFFICIENT
Manual guidance in combination with IsoMatch GEOCONTROL

EASY
Displays status of machine sections

IsoMatch Global 2

The essential accessory for IsoMatch GEOCONTROL.

The IsoMatch Global 2 is the GPS antenna, with DGPS accuracy, in the IsoMatch product range. It enables satellite navigation for site-specific section control, variable rate application, manual guidance and field registration.

SMART
Allows manual guidance, automatic section control and variable rate in combination with IsoMatch GEOCONTROL

EFFICIENT
DGPS accuracy without additional subscription fees

EASY
Easy to fit with mounting brackets included

IsoMatch Wireless

Connect to a local wireless network on your IsoMatch Tellus.

IsoMatch Wireless (USB-stick) is complementary to the IsoMatch Tellus and makes it easy to connect to a local wireless network, such as your phone’s hot-spot, home network etc.
No additional costs of an internet service provider. When connected via the IsoMatch Wireless you can browse the internet, view the weather, Gmail, Google, etc.

More about IsoMatch Wireless >

IsoMatch_Wireless

IsoMatch Eye

The IsoMatch Eye is the camera option in the IsoMatch product range.

IsoMatch Eye is a camera that has been developed for use with our sophisticated IsoMatch Tellus and IsoMatch Tellus GO dual screen terminal. The IsoMatch Eye is switchable from rear view to standard view.
It gives you full control and overview of entire machine operation during day and night, because of its night vision by integrated LED’s. This increases the safety e.g. when reversing the machine or manoeuvring around obstructions.

SMART
Changeable from rear view to standard view

EFFICIENT
Full control and overview of entire machine operation

EASY
Night vision by integrated LED’s

IsoMatch MultiEye

IsoMatch MultiEye is an accessory for connecting multiple cameras to the IsoMatch Universal Terminal.

With the IsoMatch MultiEye you can connect multiple cameras to the IsoMatch Tellus or IsoMatch Tellus GO+ Terminal. You can easily switch between the cameras without the need for an additional screen in you tractor cabin. It gives you full control and overview of the entire machine operation during day and night, because of its night vision by integrated LED’s. This increases the safety when reversing the machine or manoeuvring around obstructions.

SMART
You can connect up to four IsoMatch Eye cameras and easily switch between the cameras with the remote control box which is standard included.

EFFICIENT
Full control and overview of entire machine operation from every side you want.

EASY
Night vision by integrated LED’s which increases the safety when reversing the machine or manoeuvring around obstructions.

IsoMatch Grip

The IsoMatch Grip is an ISOBUS auxiliary device developed for great operator comfort and efficient machine control. Its ergonomic shape and the complete freedom of assigning and controlling a total of 44 implement functions from one device are unique in the market today. From your fingertips you have endless possibilities to operate all machine functions as desired. And assignments are saved per machine making it even more applicable to your needs.

More about IsoMatch Grip >

IsoMatch_Grip_783x600
